Piusi

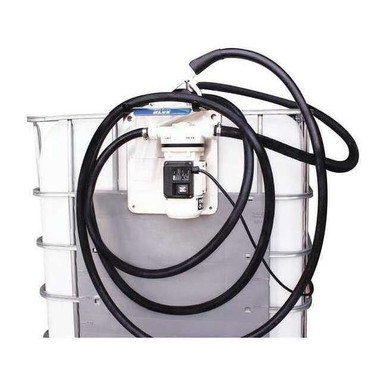

Electric Operated Drum Pump, Metered Dispensing with Manual Shut-Off, 120VAC, 2/3 Motor HP model F00201A2F by Piusi Usa, Inc. and other Electric Drum Pumpss.

Piusi . F00201A2J

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NamePiusi
DimensionUnitinch
GraingerSku53DR90
UPC810015630013
UnitOfMeasureEA
Voltage120VAC
Weight27.4
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginIT
height11.2
jsonUrlData924526ffbdad25e5923b
length19.4
moq, multiple, tierMinQty1, Phase, Number of Phases1
MPNF00201A2J
qtyInStock34
qtyInStockOverride-2
SKUG8500226
tierPrice1657.99
urlhttps://www.zoro.com/piusi-electric-operated-drum-pump-120vac-9-gpm-4364-hp-stainless-steel-f00201a2j/i/G8500226/
width15.2
ApplicationAgriculture; Fleet; Industrial; Off-Road
HP43/64
Housing MaterialStainless steel
GPM9
Inlet Size3/4"
Seal MaterialNBR
Self-Priming, Metered, Thermal Protection, Diesel Exhaust Fluid Compatible, Includes Discharge Hose, Includes Suction Tube, Includes Nozzle, Includes SpoutYes
Max Viscosity1 cps
ItemElectric Operated Drum Pump
Motor RPM1,400 RPM
Max Head13 ft.
Motor TypePermanent T Capcitor
For Use With50/50 Antifreeze, Diesel Exhaust Fluid
IncludesADAPTER, DELIVERY HOSE, DISCHARGE HOSE, NOZZLE , PUMP
Duty, Duty CycleIntermittent
Suction Tube Length4 ft
Manufacturers Warranty Length2 yr. Manufacturing Defects
Adapter Material, Spout MaterialStainless Steel
Suction Tube TypeFlexible Hose
FeaturesCOMPATIBLE WITH DEF
Motor EnclosureMEC
Hose Length12 ft
Max Pressure23 psi
Outlet Size1"
Hz, Frequency (Hz)60
Discharge Tube Length20 ft.
Max Liquid Temp, Max Fluid Temp104 Degrees F
Adapter TypePDC
Hose Material, Hose Tube Material, Hose Cover MaterialEPDM
Max GPM for Water43
Wetted MaterialsDelrin, EPDM Nylon, NBR, Stainless steel
Agency ComplianceISO 22241
Cord Length72 in
Overall Length19 in
Nozzle MaterialNylon, Stainless Steel, Viton
Min Fluid Temp12 Degrees F
Power SourceElectric
Includes Bung Adapter, Variable Speed, Food Grade, Runs Dry, Explosion ProofNo
Discharge Tube Outlet ID, Hose Inside Dia3/4 in
Max Head Pressure, Max Outlet Pressure22 psi
Discharge Connection Type, Pump Connection TypeHose Barb
For Container Size275 gal, 330 gal
Full Load Amps1.95
For Container TypeTote
Max Head - Pumps45 ft
Discharge Tube Outlet OD, Hose Outside Dia1 1/16 in
For Media TypeAntifreeze, DEF
Pump Connection ID, Pump Connection OD1 in
Noise Level75 db
SeriesNO
Compatible ChemicalsAntifreeze (Coolant), DEF
Nozzle OperationManual
Housing Material - PumpsNylon
Bung Connection Dia2 in
Max Flow Rate9 gpm
Motor HP2/3 hp
Gear Lube, GreaseNT
Spout Discharge Size3/5 in
Adapter Connection TypeButtress
Rated Voltage120V AC
Country of Origin (subject to change)Italy

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG850022613411 @ $657.99
ZoroG850662211
simsupply.comZO-G850022612511 @ $769.14
