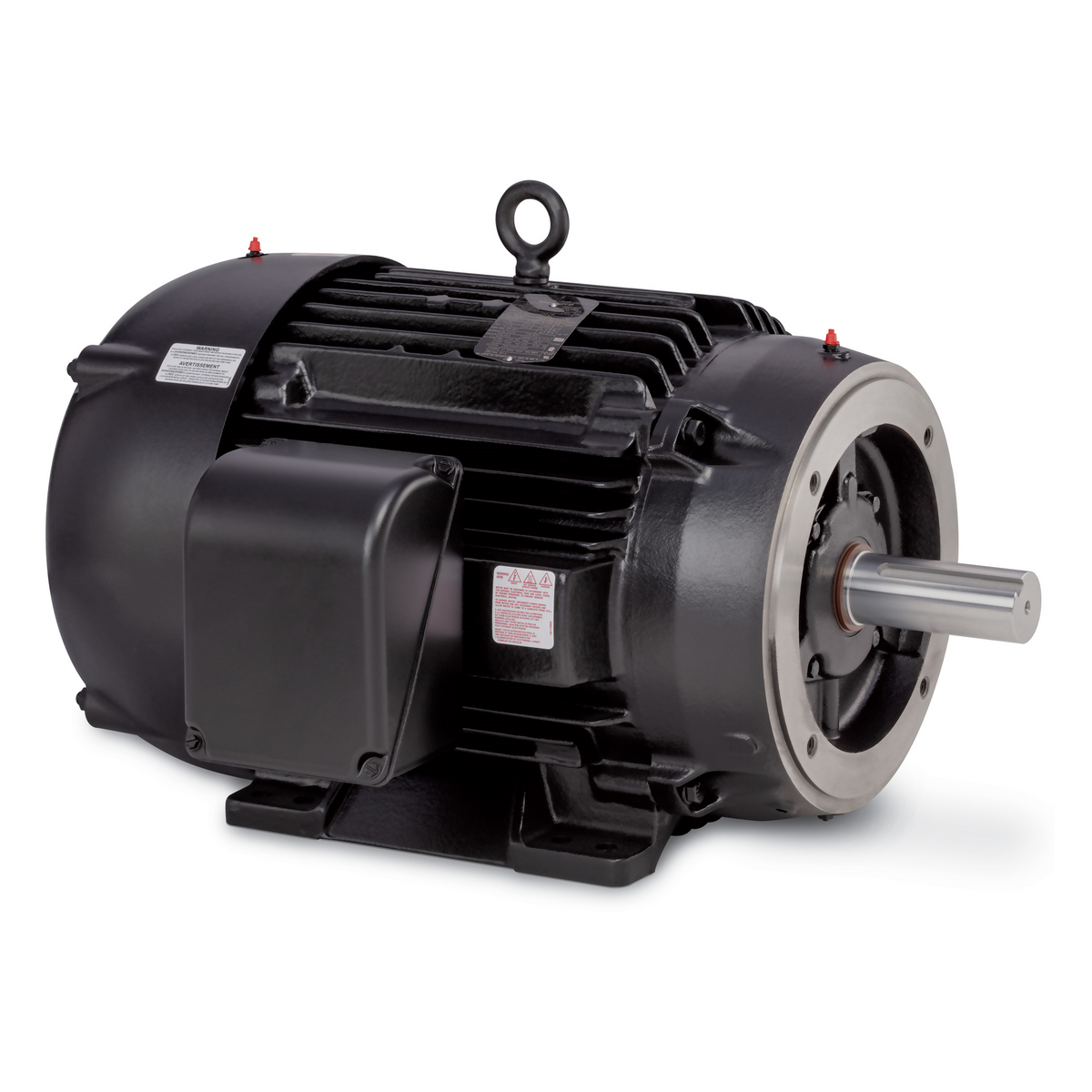

Baldor CXT3504T Three Phase Severe Duty XT Motor
Product Type: Three PhaseHP: 50RPM: 1770Volts: 230/460Amps: 57/125/114Hz: 60Phase: 3Frame: 326TCEnclosure Material: IronMounting: C-Face/RigidShaft Diameter: 2.125"Overall Length: 30.28"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.15Efficiency: 94.5%Maximum Ambient Temperature: 40? CInsulation Class: FDuty
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Baldor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Baldor CXT3504T Three Phase Severe Duty XT Motor |
| Voltage, Volts | 230/460 |
| Weight | 654 |
| WeightUnit | lbs |
| diameter, height, width | 2.125 |
| height_Attrib, width_Attrib | Shaft Diameter |
| length | 30.28 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, Number of Speeds | 1 |
| MPN, SKU | CXT3504T |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 6597.38 |
| Product Type | Three Phase |
| HP | 50 |
| RPM | 1770 |
| Amps | 57/125/114 |
| Hz | 60 |
| Phase | 3 |
| Frame | 326TC |
| Enclosure Material | Iron |
| Mounting | C-Face/Rigid |
| Shaft Diameter | 2.125" |
| Overall Length | 30.28" |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Efficiency | 94.5% |
| Maximum Ambient Temperature | 40? C |
| Insulation Class | F |
| Duty Cycle | Continuous |
| Inverter Duty | Yes |
| Manufacturer Model # | 12-0000-1914 |
| Ship Weight | 654 lbs. |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| CXT3504T | 1 | -2 | 1 | 1 @ $6597.38 |
