Where can I buy 182TTFW6076?

182TTFW6076 is available from Zoro, Grainger, Dealers Electric, sustainablesupply.com, motorsandcontrol.com. See pricing comparison above.

What is the price of 182TTFW6076?

Pricing ranges from $516.50 to $1204.94 depending on quantity and distributor.

Is 182TTFW6076 in stock?

Yes, 182TTFW6076 is currently in stock at multiple distributors with immediate availability.

Marathon Motors

Name: Marathon Motors
Brand: Marathon Motors
Price: 601.30 USD
Availability: OutOfStock

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name	Marathon Motors
DimensionUnit	inch
UnitOfMeasure	EA
Voltage, Voltage @ 50Hz	230/460V AC
Weight	77
WeightUnit	lbs
cali_prop65_orglabel, cali_prop65_whtlabel	False
countryOfOrigin	MX
extendedLead	25
extendedQty	-2
height	13.44
jsonUrlData	924526ffbdad25e5923b
length	18.31
moq, multiple, tierMinQty1, No of Speeds	1
MPN	182TTFW6076
qtyInStock	0
qtyInStockOverride	Drop Ship
SKU	G5720181
tierPrice1	601.30
url	https://www.zoro.com/marathon-motors-3-phase-general-purpose-motor-1-12-hp-182tc-frame-230460v-ac-voltage-1-175-nameplate-rpm-182ttfw6076/i/G5720181/
width	13.5

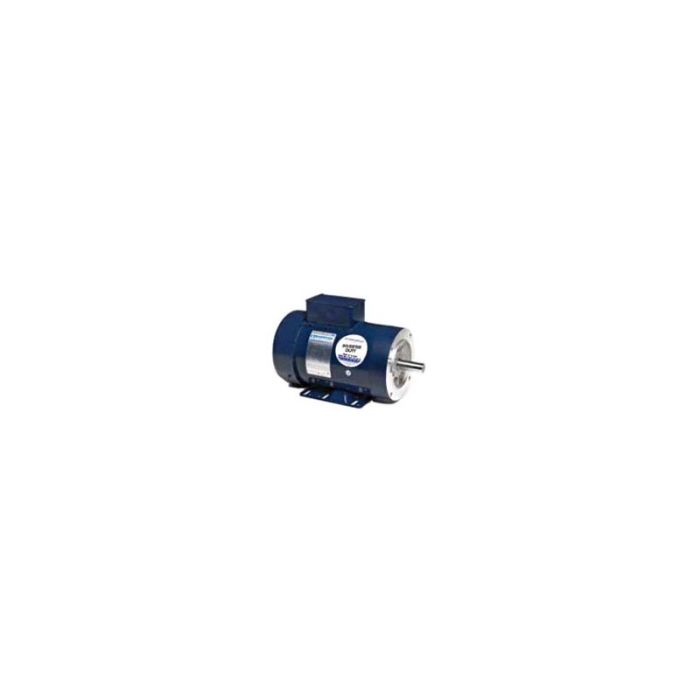

Item	General Purpose Motor
Motor Enclosure Design	Totally Enclosed Fan-Cooled
Motor Mounting Type	Face/Base
HP, HP @ 50Hz	1 1/2
RPM Range	1,101-1,200
Frame	182TC
Motor Thermal Protection	None
Motor Service Factor, Service Factor @ 50Hz	1.15
Voltage Compatibility	200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application	General Application
Motor Design	3-Phase
Nameplate RPM, RPM @ 50Hz	1,175
Motor Shaft Rotation	CW/CCW
Motor Mounting Position	Horizontal
Motor Frame Material	Steel
Motor Shaft Design	Keyed
Standards	CSA (LR2025), UL (E49747)
Frame Material	Rolled steel
Hz	60/50
RPM Group	1101-1200
Shaft Length	2 3/4 in
Length Less Shaft	11 9/16 in
Duty, Duty Cycle	Continuous
Inverter Rated	Yes
CC Number	CC003A
Phase	Three
Overall Length	14 1/2 in
Full Load Amps	5.2/2.6
Motor Efficiency Group	NEMA Premium Efficient
Manufacturers Warranty Length	1 yr
Motor Bearings	Ball
Nominal Efficiency	87.5 %
Ins Class	F
Shaft Dia	1 1/8 in
Max Ambient Temp	40 Degrees C
Green Certification or Other Recognition	NEMA Premium(R) Rated
Usable @ 208V, Usable @ 200V	No
Bearing Protection	Shaft Slinger
NEMA Design	B
Country of Origin (subject to change)	Mexico

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Zoro	G5720181	1		1	1 @ $601.30
Grainger	44Z267	1		1
Dealers Electric	182TTFW6076	1	12	1	1 @ $700.54
sustainablesupply.com	C1491832	1		1	1 @ $1204.94
motorsandcontrol.com	E2005	1		1	1 @ $0.00
pumpproducts.com	182TTFW6076	1		1
mecampbell.com	182TTFW6076	1		1	1 @ $727.03
Galco	182TTFW6076-MARA	1		1	1 @ $516.50
