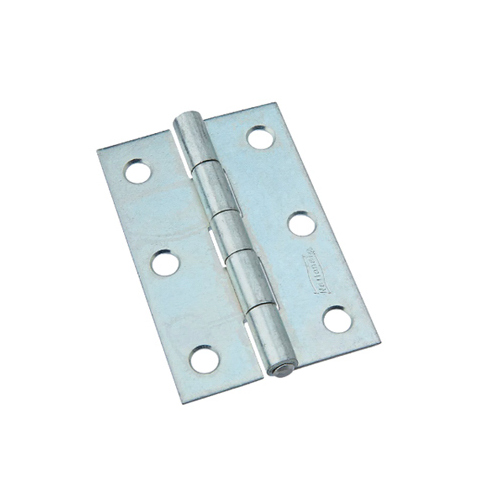

National Hardware N146365 518 3" Non Removable Pin Hinge Zinc Plated Finish
HINGE NRW ZINC PLATED 3IN 518. Swaged for mortise installations. Manufactured from cold-rolled steel, with non-removable steel pin. Tight pin to allow for left or right hand applications. Boxed loose.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | National Hardware |
|---|---|
| CategoryIdL3 | Door Hinges |
| CategoryL1 | Windows and Door Hardware |
| CategoryL2 | Screen, Patio, Storm Door and Window Hardware |
| DimensionUnit | inch |
| Extra Product Name | National Hardware N146365 518 3" Non Removable Pin Hinge Zinc Plated Finish |
| atoms, moq, multiple, tierMinQty1 | 1 |
| diameter, height, length | 0.23 |
| extendedQty, qtyInStock | 0 |
| height_Attrib, length_Attrib | Mounting Hole Diameter |
| MPN | N146365 |
| qtySource | updateFromUrlEntry |
| tierPrice1 | 2.52 |
| width | 3.0 |
| width_Attrib | Frame leaf width |
| Finish | Zinc |
| Design | Narrow Hinges |
| Height | 2.00 |
| Length, Width | 1.00 |
| Hazardous Material | No |
| Country Origin Code | CN |
| Hole Spacing | 1.188" |
| Mounting Type | Mortise |
| Weight Capacity | 28 lb |
| Material | Aluminum/Cold Rolled Steel |
| Dimensions | 2 in L x 3 in W |
| Pin Type | Tight Non-Removable |
| Number of Knuckles | 5 |
| Mounting Hole Diameter | 0.23" |
| Pin Diameter | 0.106" |
| Door Leaf Thickness, Frame Leaf Thickness | 0.065" |
| Number of Mounting Holes | 6 |
| Frame leaf width, Door Leaf Width | 3" |
| Nomenclature | N146-365 HINGE NRW ZN PLT 3IN |
| Orientation Type | Left Right |
| ECCN | EAR99 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| DK Hardware | N146365 | 1 | 1 | 1 @ $2.52 |
