Dayton

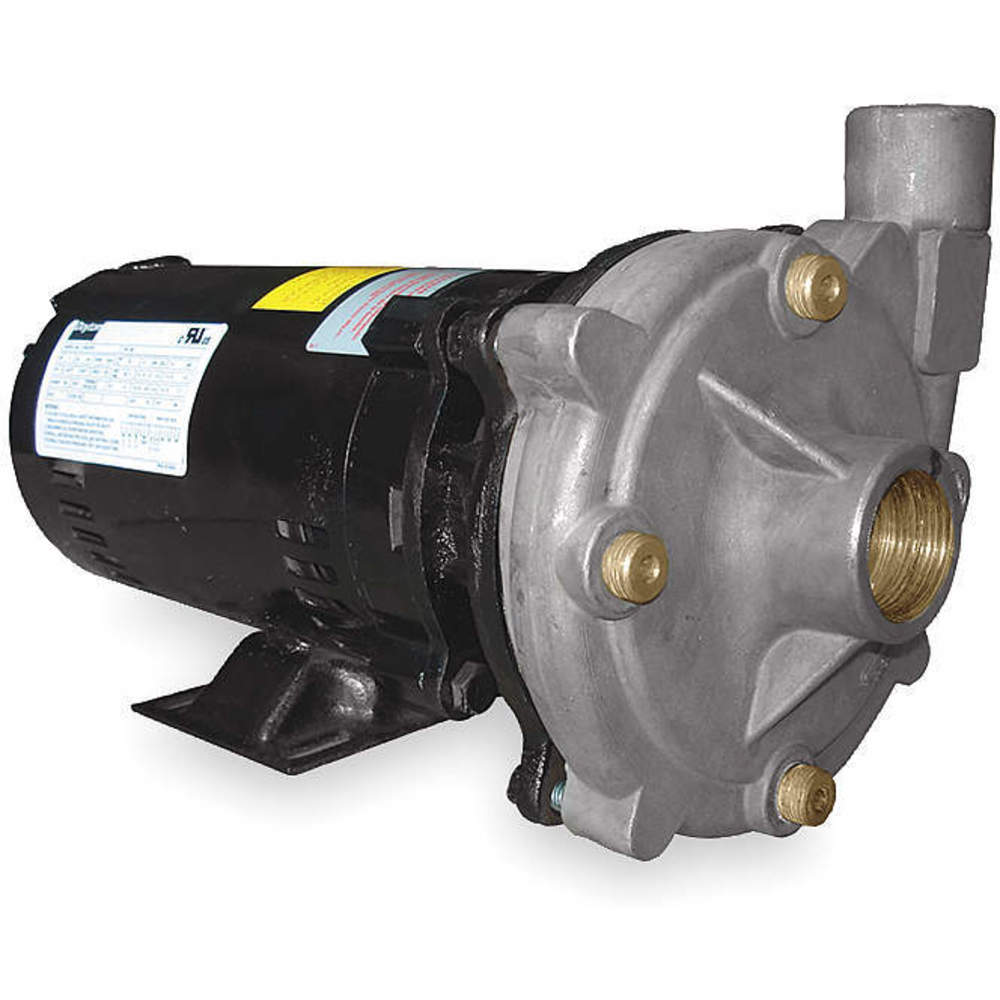

The Dayton Stainless Steel 3/4 HP Centrifugal Pump is made in India. It features a stainless steel pump housing and operates on 208-230/460V AC. The pump has a maximum flow rate of 42 gpm at 40 ft of head, 32 gpm at 60 ft of head, and 19 gpm at 80 ft of head. It can handle a maximum of 98 ft of head and is compatible with 1 1/4 in intake and 1 in discharge pipes, both of which are NPT type.

Centrifugal Pump 3/4 Hp 3ph 208-230/460v | AC4HQU | Worldwide Delivery | +44 203 287 5224 | [email protected]

Dayton . 2ZXK7

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku, MPN2ZXK7
UPC190735242612
UnitOfMeasureEA
Voltage208-230/460VAC
Weight43.41
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginIN
extendedLead, moq, multiple, tierMinQty11
height13.6
jsonUrlData924526ffbdad25e5923b
length22.2
qtyInStock, qtyInStockOverride0
qtySourceqtyInStockOverride
SKUG2178032
tierPrice1659.91
urlhttps://www.zoro.com/dayton-stainless-steel-34-hp-centrifugal-pump-208-230460v-2zxk7/i/G2178032/
width11.3
HP - Pumps, Horsepower3/4 hp
Voltage - Pumps208 to 240/480V AC
Phase - Pumps, Phase, Phase Broad3
Housing Material - Pumps, Impeller Material, Pump Housing Material, Shaft MaterialStainless Steel
Inlet Size - Pumps1-1/4 in NPT
Outlet Size - Pumps1 in NPT
Max Head, Maximum Feet of Head98 ft
Max Pressure - Pumps, Max Pressure42 psi
Motor Enclosure - PumpsOpen Dripproof
IncludesManual
Port Rotation4 Position Increments
Manufacturers Warranty Length, Manufacturer Warranty Length1 yr
GPM of Water @ 25 Ft of Head47
Hz60
Wetted MaterialsCarbon, Ceramic, Stainless Steel, Viton
HP3/4
Length, Length (Straight Wireway)15 1/2 in
Outlet1"
GPM of Water @ 40 Ft of Head42
GPM of Water @ 80 Ft of Head19
Max Specific Gravity1.0
Inlet Pressure, Max Case Pressure200 psi
GPM of Water @ 70 Ft of Head27
GPM of Water @ 30 Ft of Head46
Duty, Duty CycleContinuous
ItemCentrifugal Pump
Motor RPM3,450 RPM
GPM of Water @ 10 Ft of Head53
Width8 in
GPM of Water @ 90 Ft of Head12
Item - Straight Centrifugal PumpsStraight Centrifugal High Head Pump
GPM of Water @ 15 Ft of Head51
Frame, Motor Frame Designation56J
Amps2.7-2.5/1.2
Inlet1-1/4"
Best Efficiency GPM @ Head33 @ 59 ft
Agency ComplianceUL Approval in Motor
Bearing TypeBall
Height8 1/2 in
Motor Enclosure, Motor Type, Motor Enclosure TypeODP
GPM of Water @ 60 Ft of Head32
Seal MaterialViton
Impeller Type, Impeller DesignClosed
GPM of Water @ 20 Ft of Head49
Max Dia Solids5/32 in
GPM of Water @ 50 Ft of Head37
Housing MaterialStainless steel
Max Liquid Temp, Maximum Media Temperature200 Degrees F
Overall Length15.5 in
Overall Width7.9 in
Overall Height8.5 in
FeaturesContinuous High Pressure Circulation
StandardsUL Listed (Motor Only)
Solid Diameter (Maximum)0.16 in
Minimum Media Temperature40 Degrees F
Pump Housing Material BroadSS
Flow Rate @ 260 ft of Head (Maximum), Flow Rate @ 100 ft of Head (Maximum), Flow Rate @ 160 ft of Head (Maximum), Flow Rate @ 300 ft of Head (Maximum), Flow Rate @ 140 ft of Head (Maximum), Flow Rate @ 1 ft of Head (Maximum), Flow Rate @ 200 ft of Head (Maximum), Flow Rate @ 240 ft of Head (Maximum), Flow Rate @ 5 ft of Head (Maximum)Not Applicable
Flow Rate @ 40 ft of Head (Maximum)42 gpm
Nameplate Voltage208-230/460V AC
Compatible Intake Pipe Size1 1/4 in
Best Efficiency Flow33 gpm
Discharge Type, Intake TypeNPT
Compatible with Media TypeNon-Flammable Liquids
Frequency60 Hz
Intake and Discharge Size1 1/4 in , 1 in
For Use With Potable SystemsNo
Flow Rate @ 70 ft of Head (Maximum)27 gpm
Flow Rate @ 15 ft of Head (Maximum)51 gpm
Flow Rate @ 20 ft of Head (Maximum)49 gpm
Flow Rate @ 50 ft of Head (Maximum)37 gpm
Best Efficiency Head59 ft
