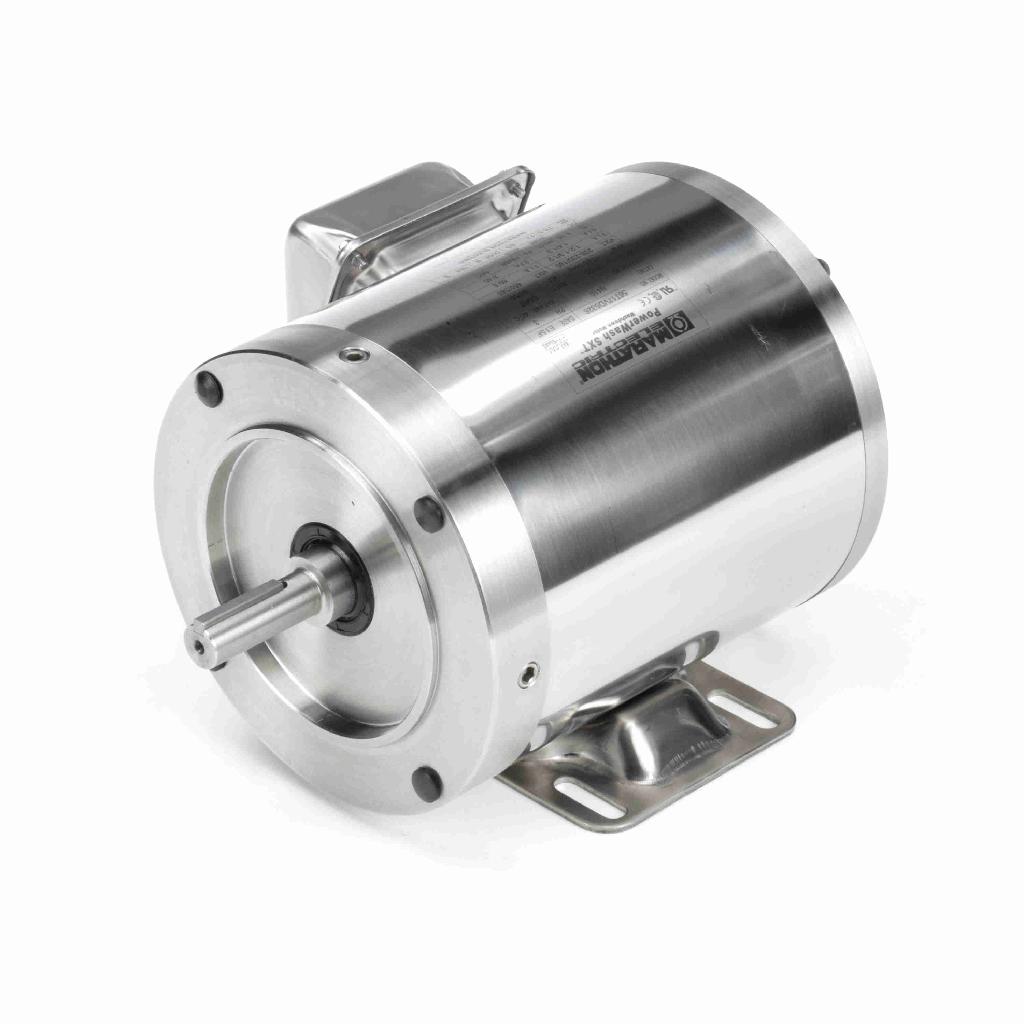

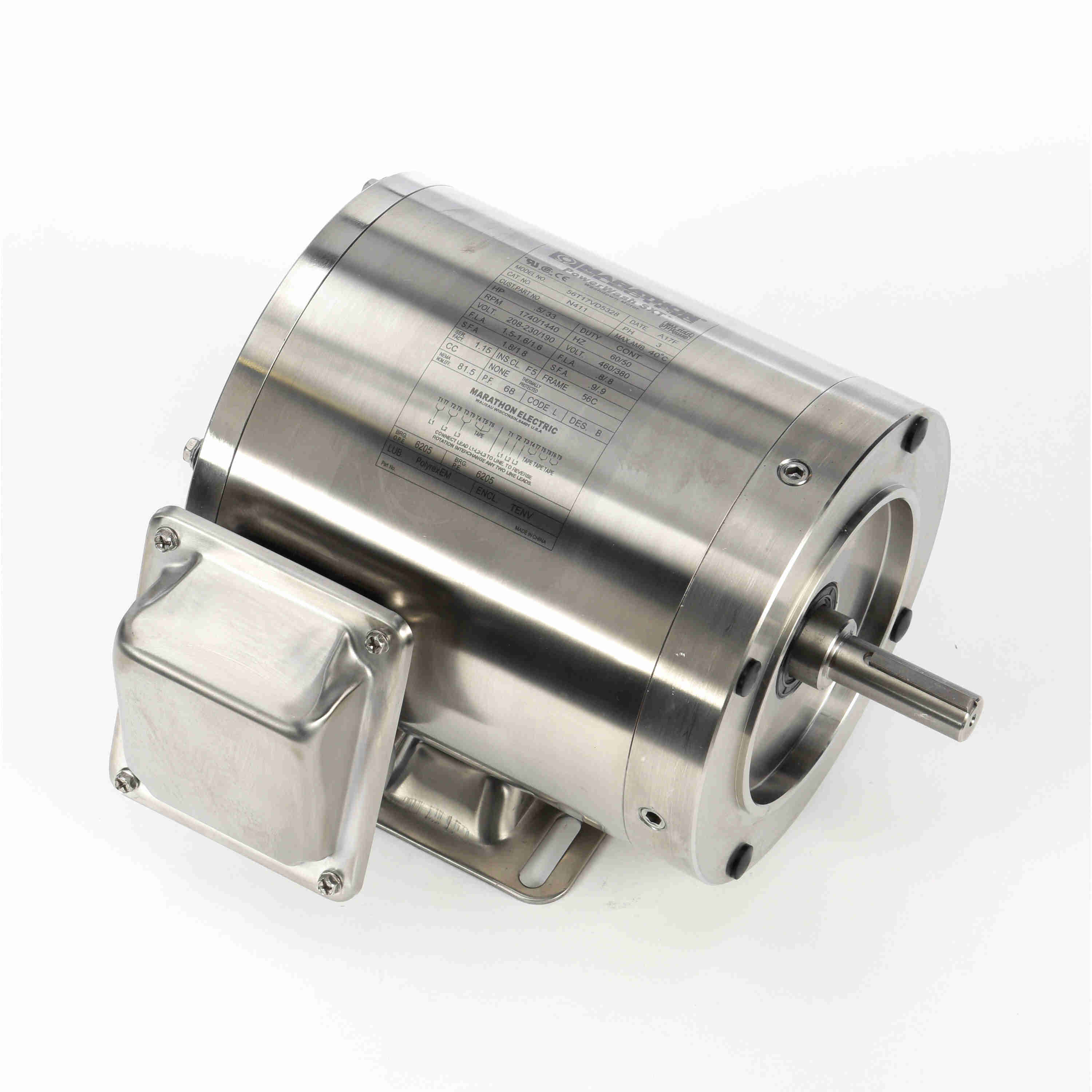

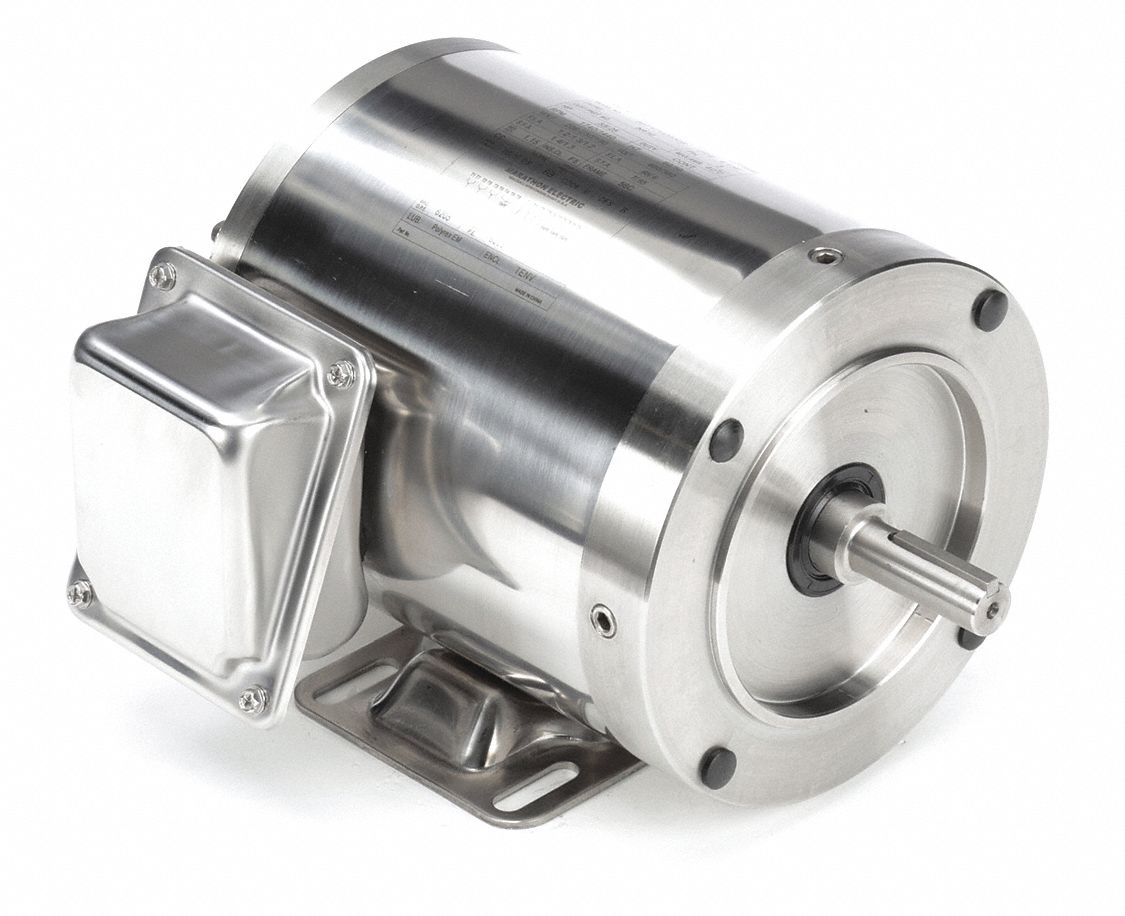

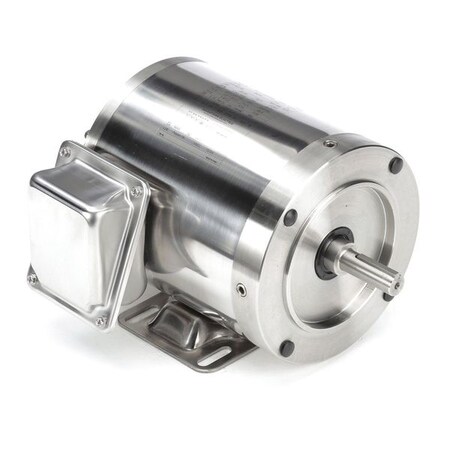

Washdown Mtr, 3 Ph, TENV, 1/3 hp, 1740 rpm

AC

Marathon Motors . 056T17VD5326

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMarathon Motors
DimensionUnitinch
GraingerSku24ML12
Extra Product NameWashdown Mtr, 3 Ph, TENV, 1/3 hp, 1740 rpm
Voltage208-230/460
WeightUnitlbs
countryOfOrigin, Country of Origin (subject to change)Multiple
diameter, height, width6.5
extendedLead, moq, multiple, tierMinQty11
height_Attrib, width_AttribBody Dia.
length9.75
length_AttribOverall Length
MPN056T17VD5326
qtyInStock0
SKUG5679931
tierPrice1385.23
urlhttps://www.zoro.com/marathon-motors-washdown-mtr-3-ph-tenv-13-hp-1740-rpm-056t17vd5326/i/G5679931/
ItemWashdown Motor
Motor Design3-Phase
Phase3
HP1/3
RPM Range1701-1800
Frame56c
Motor Frame Material, Frame MaterialStainless Steel
Motor Thermal ProtectionNone
Motor Enclosure DesignTotally Enclosed Nonventilated
Motor ApplicationWashdown
StandardsUL Recognized (E49747), CSA Certified (LR2025), CE
Hz60/50
Inverter RatedYes
Motor Service Factor1.15
Motor BearingsBall
Full Load Amps1.2-1.3/.65
Max Ambient Temp40 Degrees C
Ins ClassF
ApplicationWashguard
Body Dia6-1/2"
Nominal Efficiency91.7%
Motor Mounting PositionAll Angle
NEMA DesignB
DutyContinuous
Nameplate RPM1740
Shaft Length2-1/16"
Motor Shaft DesignKeyed
Shaft Material303 Stainless Steel
EndshieldsStainless steel
Voltage Compatibility208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Motor Mounting TypeRigid Base
Overall Length9-3/4"
Shaft Dia5/8"
Drain PlugsBreather Vent
Length Less Shaft7-3/4"
Motor Shaft RotationCW/CCW
