Parker

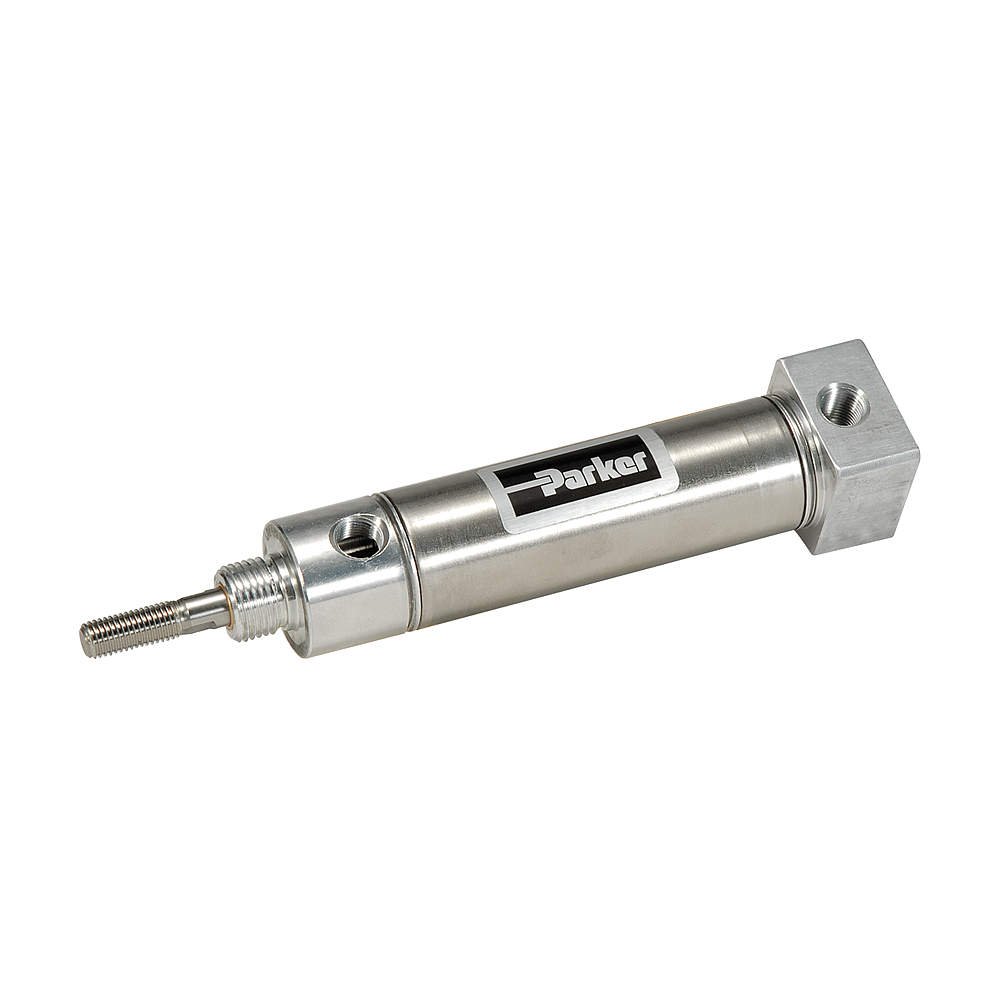

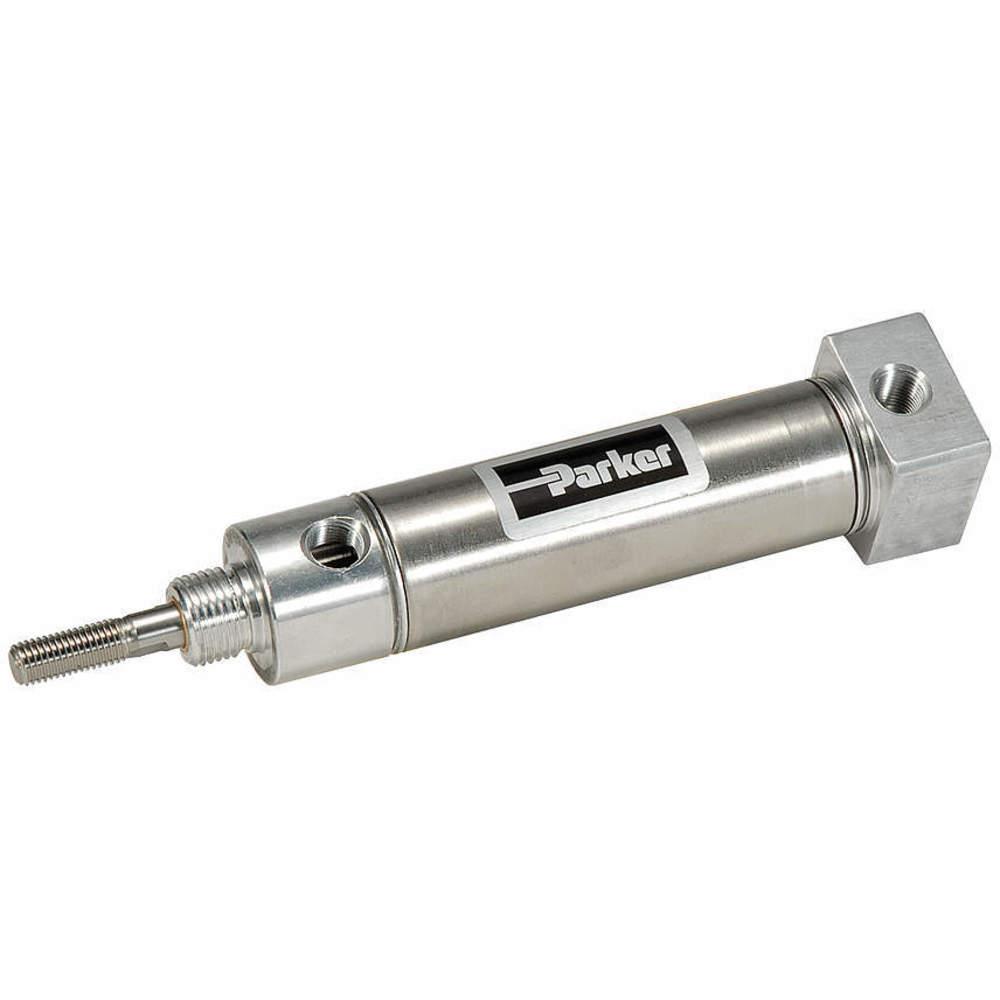

Round Air Cylinder 7/16 Inch Bore 1 Inch Stroke | 20XR85 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.44BRDSR01.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku20XR85
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight1.65
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
extendedLead26
extendedQty-2
height3.1
jsonUrlData924526ffbdad25e5923b
length, width5.6
moq, multiple, tierMinQty11
MPN0.44BRDSR01.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG6074467
tierPrice132.36
urlhttps://www.zoro.com/parker-air-cylinder-716-in-bore-1-in-stroke-round-body-double-acting-044brdsr0100/i/G6074467/
ItemAir Cylinder
Cylinder Action, Single Acting/Double ActingDouble Acting
Bore Dia, Air Cylinder Bore Dia7/16 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cc0.188 in
Overall Length3.94 in
Rod Thread Length0.5 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke1 in
Mount, Air Cylinder MountRear Block
Port Size, Dimension Kk, Rod Thread Size#10-32 UNF
Air Cylinder TypeRound Body
Temp Range-10 Degrees to 165 Degrees F
FinishSilver
Piston Material, End Cap MaterialAluminum
Dimension A1/2 in
Dimension B0.437 in
FeaturesNon-Switch Ready
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG6074467111 @ $32.36
Grainger20XR8511
Raptor SuppliesAG9MTU111 @ $68.44
AmazonB074JFJXMT11
Applied Industrial11623426411
sustainablesupply.comC26803301-211 @ $49.14
Radwell0.44BRDSR01.001711
