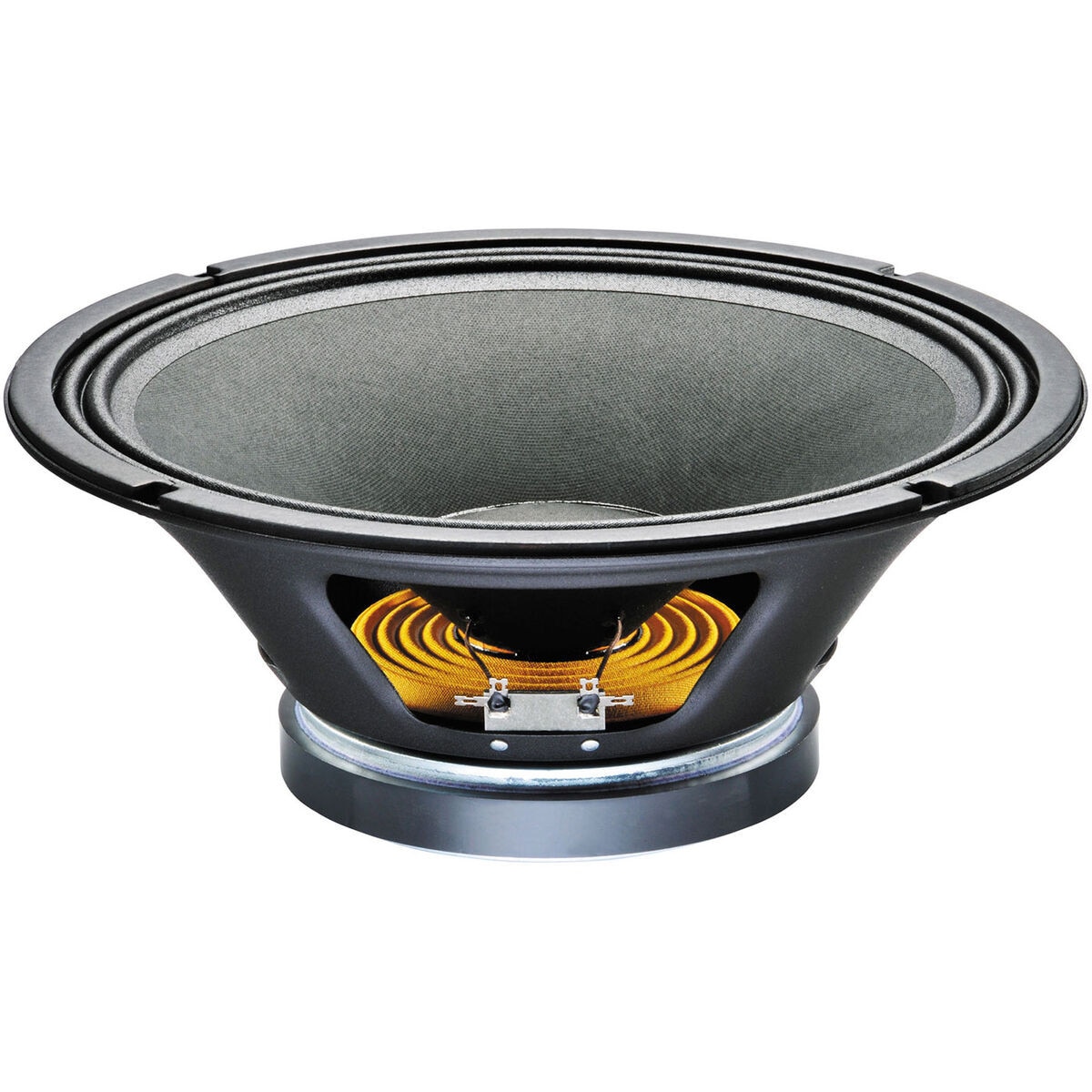

Celestion TF1220 12" Professional Speaker 150W

Celestion TF1220 12" Professional Speaker 150W. Part Number: 294-2074 by Celestion.

Celestion . TF1220

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCelestion
DimensionUnitinch
Extra Product NameCelestion TF1220 12" Professional Speaker 150W
UPC739894528450
Weight9.55
WeightUnitlbs
depth, length5.16
diameter, height, width12.17
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelTF1220
qtyInStockOut of Stock
SKU, Part Number294-2074
snippetCelestion TF1220 12" Professional Speaker 150W. Part Number: 294-2074 by Celestion.
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance8?
Frequency Response60 to 4,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)55.8Hz
DC Resistance (Re)5.46?
Voice Coil Inductance (Le)0.71mH
Mechanical Q (Qms)3.33
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)2.57ft?
Mechanical Compliance of Suspension (Cms)0.18mm/N
BL Product (BL)13.91T?m
Diaphragm Mass Inc Airload (Mms)44.51g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)531.3cm?
Cone MaterialPaper / Kevlar
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.17"
Baffle Cutout Diameter11.14"
Depth5.16"
# Mounting Holes4
Sealed Volume0.85ft?
Sealed F3113.4Hz
Vented Volume1.88ft?
Vented F362.8Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com294-20741Out of Stock1
