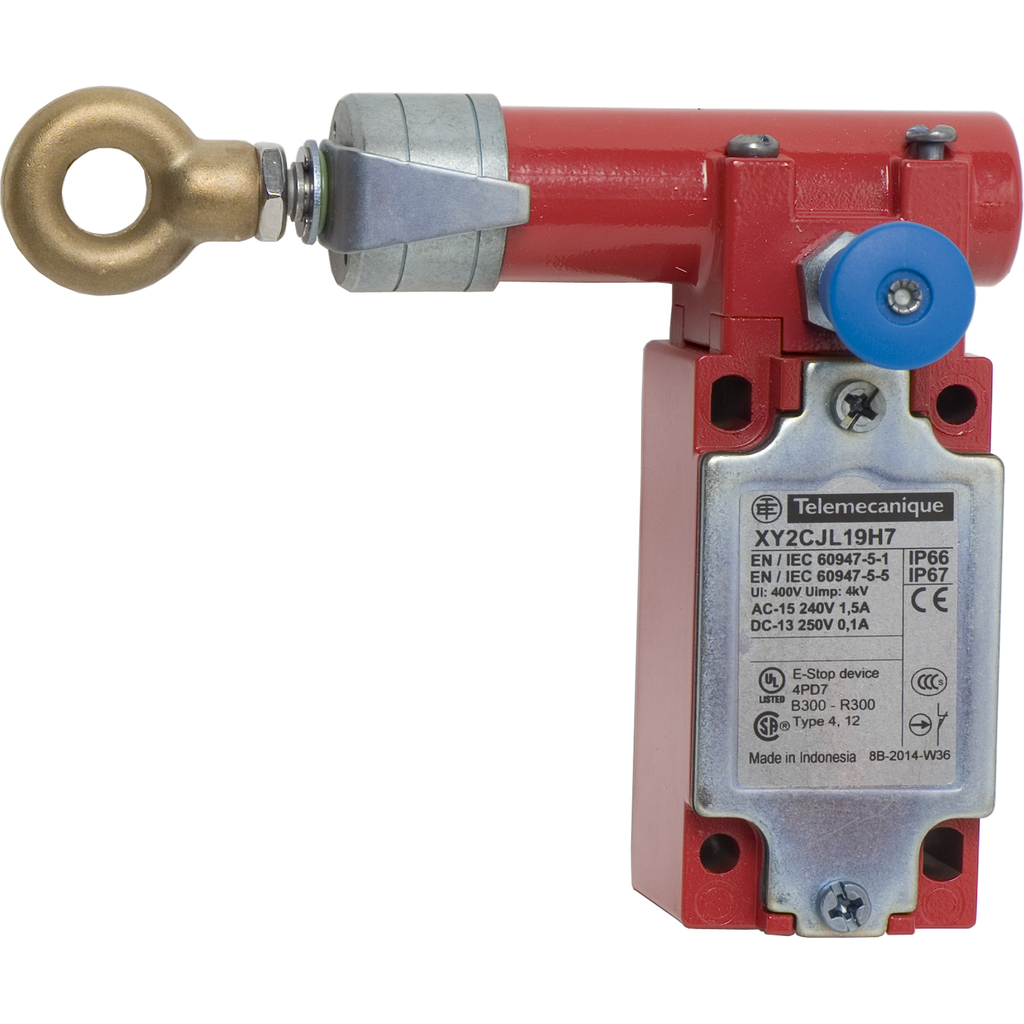

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, left side, 2NC+1 NO, 1/2" NPT | Mayer Electric

Mayer Electric Supply . XY2CJL19H7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitm
Extra Product NameLatching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, left side, 2NC+1 NO, 1/2" NPT | Mayer Electric
UPC785901111658
Weight0.669
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SQUARE-D-Latching-emergency-stop-rope-pull-switch-Telemecanique-rope-pull-switches-XY2C-e-XY2CJ-left-side-2NC1-NO-1-2-NPT-785901111658
jsonUrlData2c1a940c7-f079-4c22-96cb-aeea0058d2c1
length30.0
length_AttribTrigger Cable Maximum Length
moq, multiple, tierMinQty1, Number Of Cables1
MPNXY2CJL19H7
qtyInStock0
SKUSQDXY2CJL19H7
tierPrice1142.66
Housing Colourred RAL 3000
Range Of ProductTelemecanique Emergency stop rope pull switches XY2C
Overvoltage Categoryclass I EN/IEC 61140
Product Or Component Typelatching emergency stop rope pull switch
Device Short NameXY2C
Trigger Cable Maximum Length30 m
Connections - Terminalsscrew clamp terminal, 1 x 0.34...1 x 1 mm? || screw clamp terminal, 1 x 0.34...2 x 0.75 mm?
Resetby pull button
Contacts Type And Composition2 NC + 1 NO
Terminals Description Iso N?1(13-14)NO || (21-22)NC || (31-32)NC
[Ui] Rated Insulation Voltage400 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
Short-Circuit Protection6 A cartridge fuse gG EN/IEC 60269
[Ie] Rated Operational Current0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 appendix A || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 appendix A
Contact Operationslow-break
Distance Between Cable Supports5-5 m
Mechanical Durability100000 cycles
Positive Openingwith EN/IEC 60947-5-1
Cable Entry Number1 tapped entry 1/2" NPT conduit entry
Compatibility CodeXY2CJ
Body Materialzamak
[Ithe] Conventional Enclosed Thermal Current6 A
Trigger Cable Anchor PointLH side
Safety Reliability DataB10d = 500000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
MarkingCE
Cover Materialgalvanised steel
Local Signallingcolor indicator
Net Weight0.669 kg
Tightening Torque0.8-1.2 N.m
[Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1
Maximum Resistance Across Terminals25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1407002EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationReference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-25-70 ?C
Ambient Air Temperature For Storage-40-70 ?C
StandardsEN/IEC 60204-1 || EN/ISO 13850 || UL 508 || machinery directive 2006/42/EC || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || work equipment directive 2009/104/EC
Product CertificationsUL category NISD emergency stop devices || CSA || CCC || EAC
Shock Resistance50 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance10 gn 10-150 Hz)EN/IEC 60068-2-6
Protective TreatmentTC
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXY2CJL19H7111 @ $142.66
