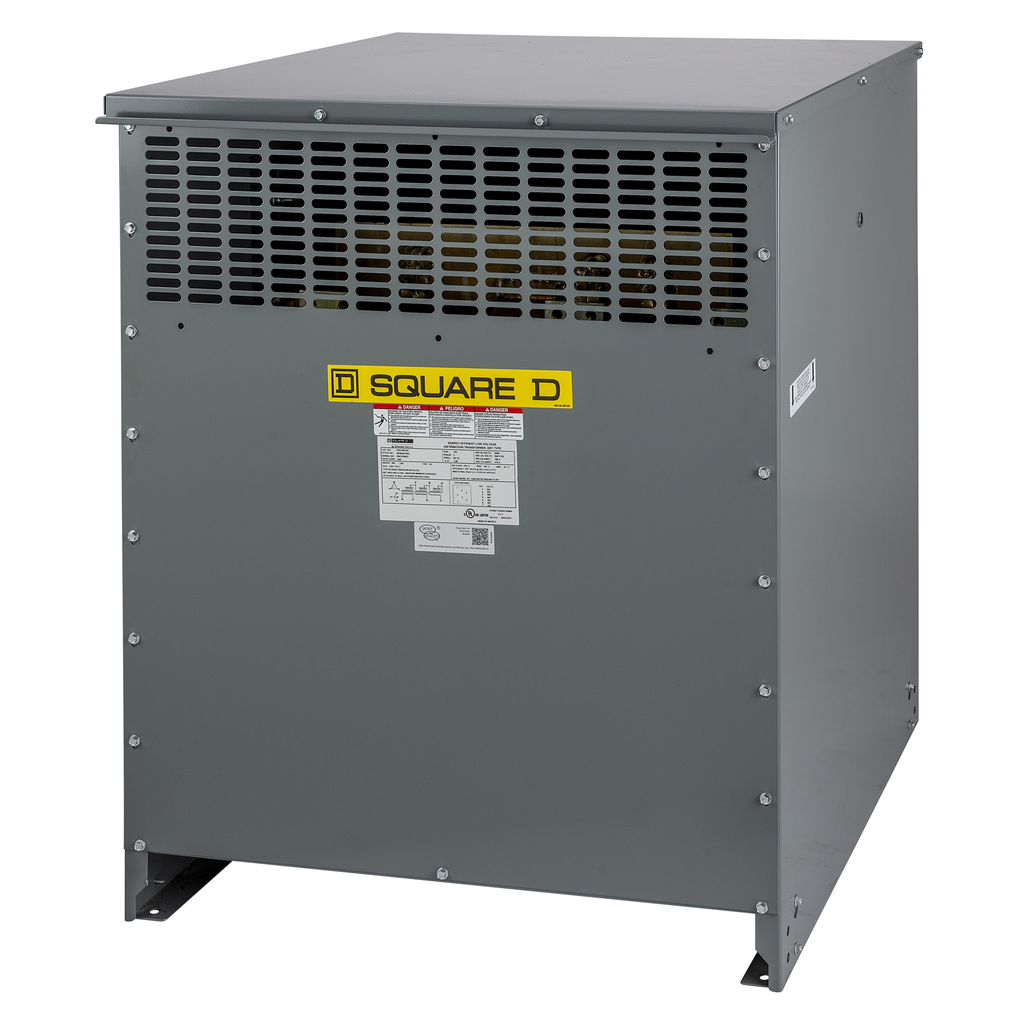

Low voltage transformer, DOE 2016, dry type, 3 phase, 112.5kVA, 480V pri, 208Y/120V sec, Al, 115C rise, Type 2 | Mayer Electric

Mayer Electric Supply . EXN112T3HF

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameLow voltage transformer, DOE 2016, dry type, 3 phase, 112.5kVA, 480V pri, 208Y/120V sec, Al, 115C rise, Type 2 | Mayer Electric
UPC785901478188
Weight365.60
WeightUnitkg
Weight_AttribNet Weight
depth, length722.0
height953.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-DOE-2016-LV-XFMR-3-Phase-112-5kVA-480-Delta-208Y-120-AL-115C-Rise-220C-INS-785901478188
jsonUrlData2fbfe6d20-ea89-4722-a058-abd200620ac6
length_AttribDepth
moq, multiple, tierMinQty11
MPNEXN112T3HF
qtyInStock0
SKUSQDEXN112T3HF
tierPrice18893.03
width795.0
width_AttribWidth
Range Of ProductSquare D
Product Or Component TypeDOE 2016 energy efficient transformer
Transformer Typeenergy efficient
Device Applicationlow voltage electrical distribution
Device Short NameDOE 2016
Tap Loss237 no load (core loss) || 2124 load loss (coil loss)
Network Frequency60 Hz
Primary Voltage480 V delta
Percentage Impedance Voltage3.30 %
Height953 mm
Number Of Mounting Holes13 mm
[Uimp] Rated Impulse Withstand Voltage10 kV
Primary Operational Current135.32-135.32 A 312.27 A 112.5 kVA
Temperature Rise115 ?C || 220 ?C insulated
Degree Of ProtectionUL type 2 || UL type 3R, with 7400WS21M
Number Of Tap-Offs2 2.5 % FCAN || 4 2.5 % FCBN
X/R Ratio1.58
Rated Operational Power In Va112.5 kVA
Electrical Connection4 Hole Nema Pad secondary 11.1 mm || 6 Hole Nema Pad sec - XO 11.1 mm || 4 Hole Nema Pad primary 11.1 mm
Phase3 phase
Materialaluminium
Net Weight365.60 kg
Secondary Voltage208Y/120 V
Percentage Reactance2.76 %
Noise Level44 dB || 6 dB NEMA ST-20
Type Of Coolingnatural convection
Efficiency98.84 % at 35 % load factor , 75.0 ?C
Mounting Supportfloor || floor, with 7400FMB || ceiling, with 7400CMB21M
Continuous Thermal Current Rating Factor1010 16.6 % || 1262 25 % || 2621 50 % || 4885 75 % || 8056 100 %
Width795 mm
Depth722 mm
Inrush Current1536 A
Box Number21M
[Ipk] Rated Peak Withstand Current9.46 kA
Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1604028EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingPhenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Halogen Content PerformanceHalogen free plastic parts product
Average Ambient Air Temperature For Operation30 ?C
Ambient Air Temperature For Operation40-40 ?C
StandardsUL 1561 || CSA C22.2 No 47 || NEMA ST-20

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDEXN112T3HF111 @ $8893.03
