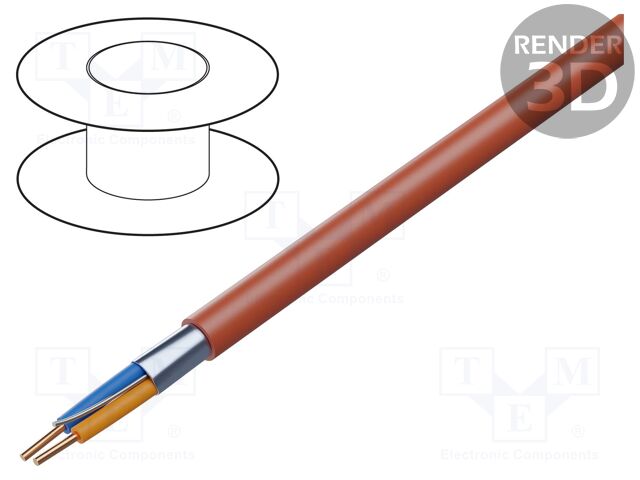

BITNER B10100 | Wire: control cable; HTKSHekw; Insulation: LSZH; Colour: red; 225V
BITNER B10100 | Wire: control cable; HTKSHekw; Insulation: LSZH; Colour: red; 225
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | BITNER |
|---|---|
| CategoryL1 | Wires and Cables |
| CategoryL2 | Cables |
| CategoryL3 | Fire Performance Cables |
| DimensionUnit | mm |
| Extra Product Name | BITNER B10100 | Wire: control cable; HTKSHekw; Insulation: LSZH; Colour: red; 225V |
| atoms, No of pairs | 1 |
| diameter, length, width | 7.3 |
| jsonUrlData | 8db37b691031a45f3f2a2c9235a189c2. |
| jsonUrlData2 | 24b3fee1aa4d08c1781f |
| keywords | BITNER, B10100, BITNER-B10100 |
| length_Attrib, width_Attrib | Cable external diameter |
| moq, multiple, tierMinQty1 | 5 |
| MPN | B10100 |
| qtyInStock | 0 |
| SKU | BITNER-B10100 |
| snippet | BITNER B10100 | Wire: control cable; HTKSHekw; Insulation: LSZH; Colour: red; 225 |
| tierMinQty2 | 25 |
| tierMinQty3 | 50 |
| tierMinQty4 | 100 |
| tierPrice1 | 0.928 |
| tierPrice2 | 0.769 |
| tierPrice3 | 0.687 |
| tierPrice4 | 0.606 |
| Type of wire | control cable |
| Kind of wire | HTKSHekw |
| Wire insulation material | LSZH |
| Insulation colour | red |
| Kind of core | Cu |
| Shield structure | Al-PET foil |
| Number of cores | 2 |
| Cable application | alarm instalations, |
| Cable external diameter | 7.3mm |
| Operating temperature | -25...70?C |
| Core structure | solid |
| Kind of material | no flame propagation |
| Core section | 0.5mm |
| Core marking | colours with colour repetition |
| Earth core | none |
| CPR standard | C |
| Rated voltage | 225V |
| Resistance to | fire, |
| Conform to the norm | FE180 PH90 E90 |
| Cable features | low smoke density |
| Core diameter | 0.8mm |
| Ground | coper wire |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| BITNER-B10100 | 5 | 5 | 5 @ $0.93, 25 @ $0.77, 50 @ $0.69, 100 @ $0.61 |
