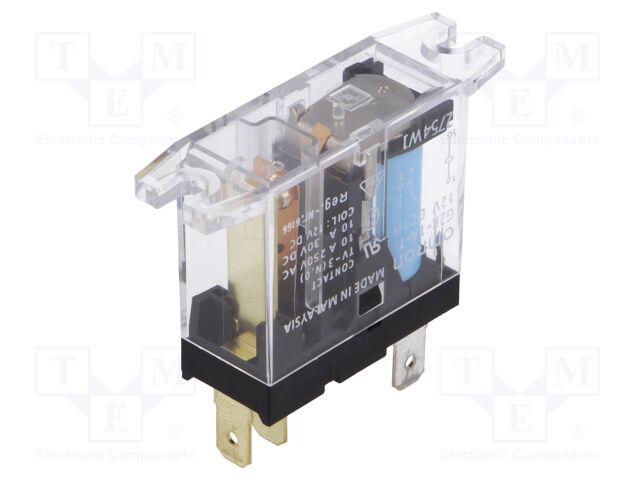

OMRON OCB G2R-1A-T 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10A
OMRON OCB G2R-1A-T 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2R-1A-T 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 95fc7ee7c6b06653f96a41cab11db1f8. |
| jsonUrlData2 | 281cb8e50dda27db6a30 |
| keywords | OMRON OCB, G2R-1A-T 12VDC, G2R-1A-T-12DC |
| MPN | G2R-1A-T 12VDC |
| qtyInStock | 0 |
| SKU | G2R-1A-T-12DC |
| snippet | OMRON OCB G2R-1A-T 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 8.76 |
| tierPrice2 | 7.88 |
| tierPrice3 | 6.79 |
| tierPrice4 | 6.35 |
| tierPrice5 | 5.91 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 12V DC |
| Contact current max | 10A |
| AC contacts rating @R | 10A / 250V AC |
| DC contacts rating @R | 10A / 30V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | miniature, |
| Mounting | screw type |
| Coil resistance | 275? |
| Operate time | 15ms |
| Body dimensions | 29x13x25.5mm |
| Release time | 5ms |
| Operating temperature | -40...70?C |
| Relay series | G2R |
| Contact resistance | 30m? |
| Terminal pitch | 5.2mm |
| Coil current | 43.6mA |
| Enclosure description | standard seal |
| Leads | connectors 4,75x0,5mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2R-1A-T-12DC | 1 | 1 | 1 @ $8.76, 5 @ $7.88, 25 @ $6.79, 100 @ $6.35, 500 @ $5.91 |
