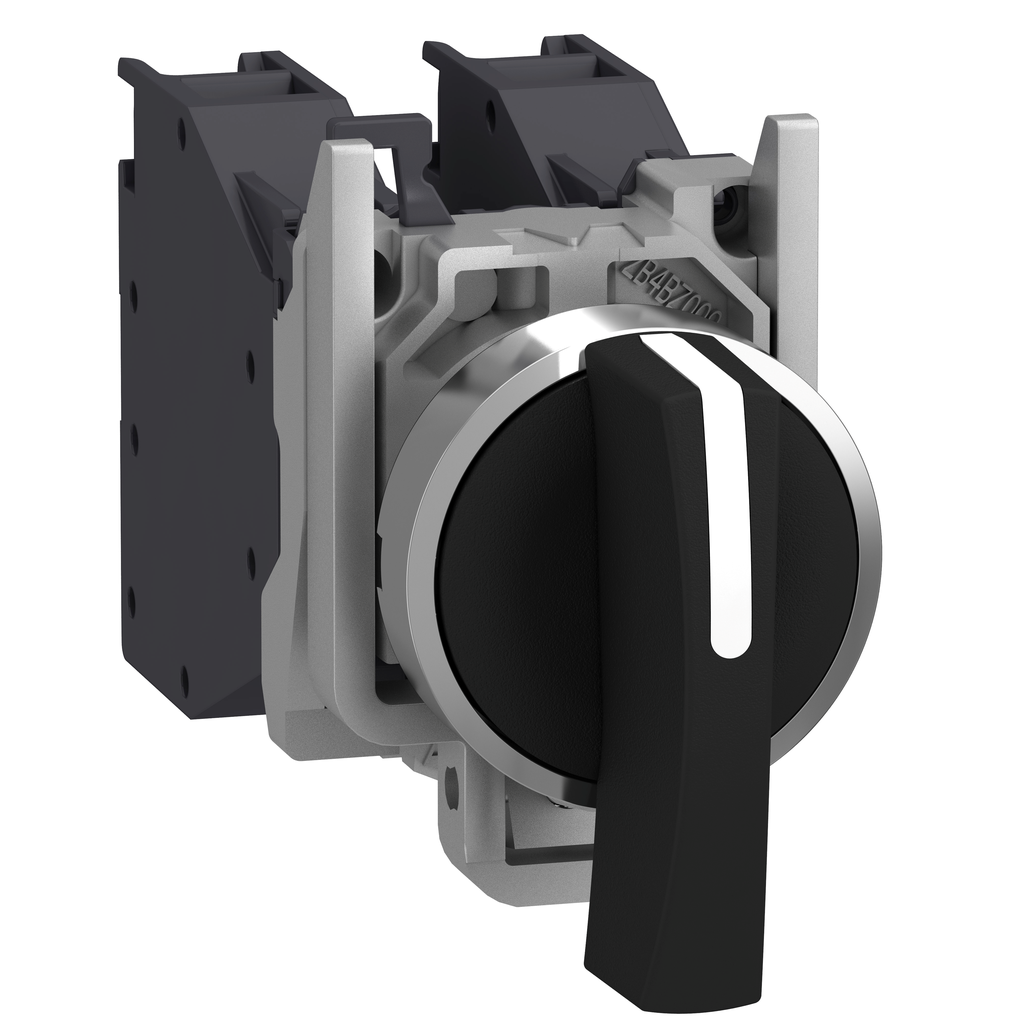

Selector switch, Harmony XB4 - ATEX D, metal, 22mm, 3 positions, black long handle, spring return, screw clamp terminals, 2NO | Mayer Electric

SQUARE D . SQDXB4BJ53GEX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameSelector switch, Harmony XB4 - ATEX D, metal, 22mm, 3 positions, black long handle, spring return, screw clamp terminals, 2NO | Mayer Electric
UPC, MPN, SKUSQDXB4BJ53GEX
Weight0.115
WeightUnitkg
Weight_AttribNet Weight
depth, length85.0
height30.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Selector-switch-Harmony-XB4-ATEX-D-metal-22mm-3-positions-black-long-handle-spring-return-screw-clamp-terminals-2NO-SQDXB4BJ53GEX
jsonUrlData27937e752-85e4-40e9-bcd1-aeea00580464
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
qtyInStock0
tierPrice10.0
width46.2
width_AttribWidth
Range Of ProductHarmony XB4
Dust Zonezone 21 - 22
Mounting Diameter22 mm
Type Of Operatorto centre spring return
Product Or Component Typecomplete selector switch
Fixing Collar Materialzamak
Gas Zonezone 1 - 2
Contacts Type And Composition2 NO
Bezel Materialchromium plated metal
Operator Profileblack long handle
Device Short NameXB4
Contacts Usagestandard contacts
Height30 mm
Embedding Depth58 mm
Fixing Center>= 30 x 40 mm support panel) 1-6 mm
Positive Openingwithout
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Shape Of Signaling Unit Headround
MarkingEx tb IIIC Db || Ex db eb IIC Gb || II 2 GD
Net Weight0.115 kg
Connections - Terminalsscrew clamp terminals, 2 x 1.5 mm? with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm? without cable end EN/IEC 60947-1
[Ui] Rated Insulation Voltage415 V
Contact Operationslow-break
Operator Position Information3 positions +/- 45?
Mechanical Durability5000000 cycles
Width46.2 mm
Depth85 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Device Mountingfixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsINERIS 04ATEX9004U
Ambient Air Temperature For Operation-20-75 ?C
Standards : EN/IEC 60079-0:2009 || EN/IEC 60079-1:2009 || EN/IEC 60079-7:2009 || EN/IEC 60079-312009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Ip Degree Of ProtectionIP66 IEC 60529
Ambient Air Temperature For Storage-40-70 ?C
Protective TreatmentTH
