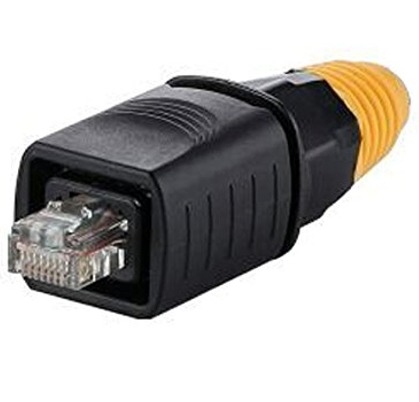

Cnlinko YT-RJ45-CPE-05-001 is a male rectangular RJ45 signal connector. Accommodates 26-24 AWG cable. Rated for 1000V and 1.5 A. Plastic housing.

Model Number: YT-RJ45-CPE-05-001 Pairing Socket Model Number: YT-RJ45-JSX-05-002 Features: ● Compliance with D level or CAT 3e standard of EIA568B and ISO/IEC11801,RJ45 connectors compatible CAT5e, data transfer rate reach 10GBIT/S ● Multi-style connecting modes: 1/4 bayonet connect (YT01), quickly plug/unplug(YT09/04) ● Applicable for harsh environments ● Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle ● Sheath of cable applicable for common RJ45 plugs ● Waterproof design, protection level IP67 ● Electroplated shell against wind and rain ● Shielding system with high frequency noise immunity and electromagnetic interference protection Specification: Cable specification 0.15m㎡～0.2m㎡/26-24 AWG Diameter range Φ5.5mm～Φ7mm Contact diameter × number 8 Rated Current (A) 1.5A Operating voltage (AC.V.rms) 1000V Contact resistance <30mΩ Insulation resistance ＞500MΩ Protection level IP65/IP67 Durability ＞500 times Working temperature -40℃～80℃ Assembly Wire Plug/Unplug Housing, the insulating parts High-performance engineering plastics Hardware Zinc Alloy (pearl hard chrome) Copper needles Copper alloy (gold-plated 4U) Waterproof circle Silica gel Flammability rating UL94-V0
