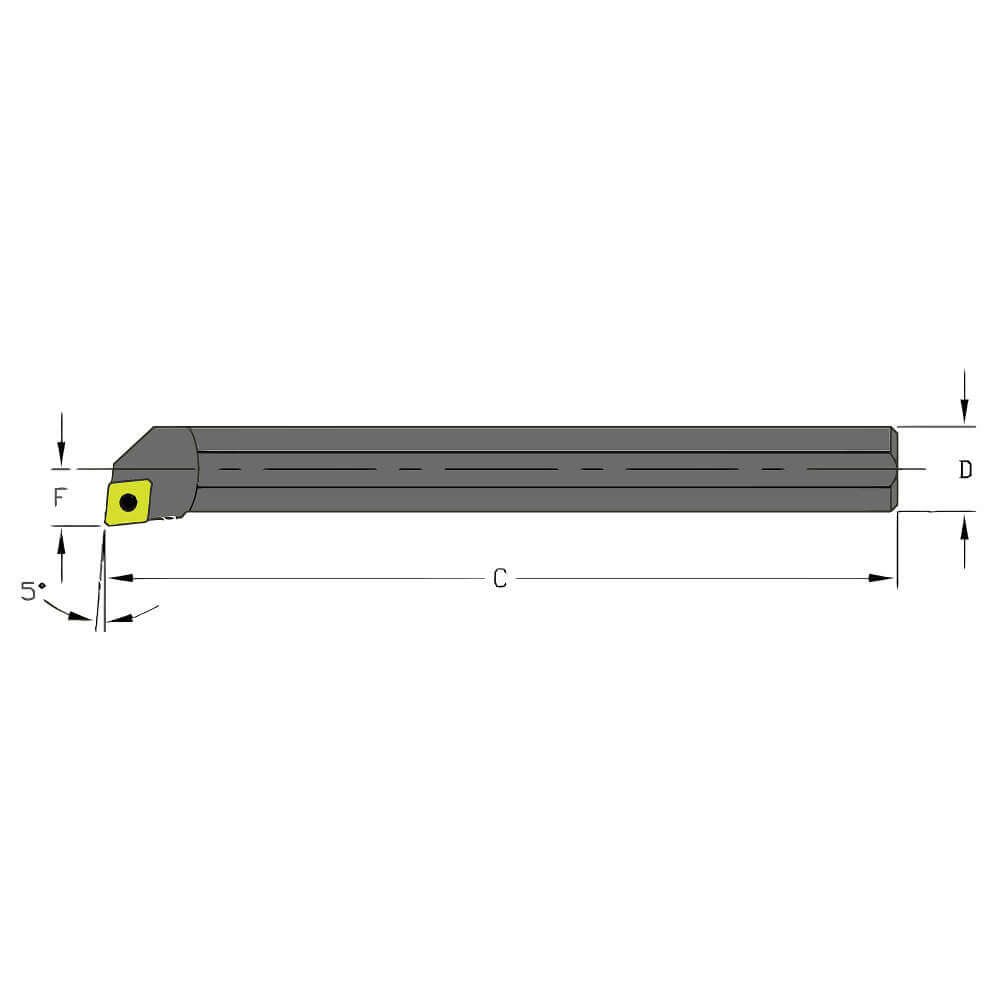

Indexable Boring Bar, Insert Shape 80 Degrees Diamond, Overall Length 3-1/2 in, S02.5G SCLDR1.2, 0.0900 in, MTS-182 Insert Screw, T-6 Key, Non-Coolant Through, Boring, Right Hand
Indexable Boring Bar, Insert Shape 80 Degrees Diamond, Overall Length 3-1/2 in, S02.5G SCLDR1.2, 0.0900 in, MTS-182 Insert Screw, T-6 Key, Non-Coolant Through, Boring, Right Hand
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Ultra-Dex Usa |
|---|---|
| CategoryId, CategoryIdL3 | 6031 |
| CategoryIdL1 | 2 |
| CategoryIdL2 | 6049 |
| CategoryL1 | Tools & Machining |
| CategoryL2 | Cutting Tools |
| CategoryL3 | Indexable Tools |
| CategoryL4 | Indexable Boring Bars |
| DimensionUnit | inch |
| GTIN, UPC | None |
| GraingerSku | 33NH48 |
| UnitOfMeasure | EA |
| Weight | 0.26 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel | False |
| countryOfOrigin | US |
| height | 0.16 |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 4.5 |
| moq, multiple, tierMinQty1, Number of Inserts | 1 |
| MPN, ANSI Code, ANSI Number | S02.5G SCLDR1.2 |
| qtyInStock | 0 |
| qtyInStockOverride | Drop Ship |
| SKU | G9234617 |
| snippet | Indexable Boring Bar, Insert Shape 80 Degrees Diamond, Overall Length 3-1/2 in, S02.5G SCLDR1.2, 0.0900 in, MTS-182 Insert Screw, T-6 Key, Non-Coolant Through, Boring, Right Hand |
| tierPrice1 | 64.99 |
| url | https://www.zoro.com/ultra-dex-usa-indexable-boring-bar-s025g-scldr12-3-12-in-l-high-speed-steel-s025g-scldr12/i/G9234617/ |
| width | 2.16 |
| Overall Length | 3-1/2 in |
| Shank Dia | 5/32 in |
| Bar Dia | 0.156" |
| Insert Size | 1.20.6 |
| Min Bore Dia | 0.1750 in |
| Item | Indexable Boring Bar |
| Min Bore | 0.175" |
| Cutting Direction, Left/Right Hand | Right Hand |
| Insert Shape | 80 Degrees Diamond |
| Shank Material | High Speed Steel |
| Style | Solid |
| For Use With | CDHB 1.20.60 |
| Insert Thickness | 0.0400" |
| Type | Turning |
| Cutting Edge Type, Lead Angle | -5 Degrees |
| Inscribed Circle | 5/32" |
| Mounting Style | Screw Lock |
| Rake | Positive |
| Center to Cutting Tip | 0.0900 in |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G9234617 | 1 | 1 | 1 @ $64.99 | |
| AH3WAN | 1 | 1 | 1 @ $95.53 | ||
| AmazonSC | B018KKGKPU | 1 | 1 | 1 @ $67.65 |
