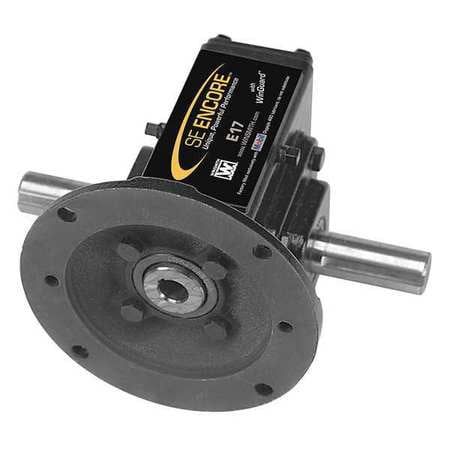

Speed Reducer, C-Face, Right Angle Shaft Orientation, Washdown Duty, 1725 Input RPM, 86 Nominal Output RPM, Worm Center Distance 1.75 In., Bore Dia. 1 In., 56C Frame, Overhung Load 650 lb., 20:1 Nominal Ratio, Max. Input HP 0.75, Max. Output Torque 482 in.-lb., Number of Stages 1, Reversible Rotation, Universal Mounting, Worm Gear Type, Cast Iron Housing Material, Double Output, Output Shaft Dia. 1 In., Output Shaft Height 2-1/8 In. Features Finish: Epoxy Coating System Item: Speed Reducer Nominal Output RPM: 86 Number of Stages: 1 Dimension B: 4.630" Duty: Washdown Housing Material: Cast iron Input RPM: 1725 Mounting: Universal Nominal Ratio: 20:1 Rotation: Reversible Shaft Orientation: Right Angle Frame: 56c Lubrication: Mobil Glygoyle(R) 460 Dimension A: 2.380" Dimension C: 1.750" Dimension D: 3.880" Dimension F: 1.94" Dimension G: 0.56" Dimension H: 3/8-16 Dimension L: 3.44" Reducer Model No.: E17MWNS Bore Dia.: 1" Max. Input HP: 0.75 Worm Center Distance: 1.75" Overhung Load: 650 lb. Gear Type: Worm Speed Reducer Type: C-Face Output Shaft Dia.: 1" Output Shaft Height: 2-1/8" Output Torque @ 1/2 HP: 321 in.-lb. Output Torque @ 1/3 HP: 212 in.-lb. Output Torque @ 1/4 HP: 161 in.-lb. Output Torque @ 3/4 HP: 482 in.-lb. Single/Double Output/Universal: Double Output Max. Output Torque: 482 in.-lb.

Speed Reducer, C-Face, Right Angle Shaft Orientation, Washdown Duty, 1725 Input RPM, 86 Nominal Output RPM, Worm Center Distance 1.75 In., Bore Dia. 1 In., 56C Frame, Overhung Load 650 lb., 20:1 Nominal Ratio, Max. Input HP 0.75, Max. Output Torque 482 in.-lb., Number of Stages 1, Reversible Rotation, Universal Mounting, Worm Gear Type, Cast Iron Housing Material, Double Output, Output Shaft Dia. 1 In., Output Shaft Height 2-1/8 In. Features Finish: Epoxy Coating System Item: Speed Reducer Nominal Output RPM: 86 Number of Stage
