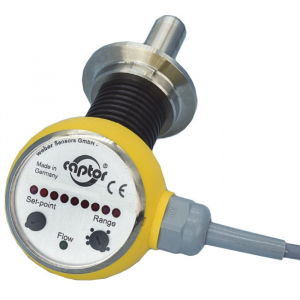

Buy Weber Sensors 4120.12A S114/50.5 S110/67, Flow-Captor Switch Energized - Prime Buy

Weber Sensors . 4120.12A S114/50.5 S110/67

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerWeber Sensors
ConditionNEWCONDITION
DimensionUnitmm
Extra Product NameBuy Weber Sensors 4120.12A S114/50.5 S110/67, Flow-Captor Switch Energized - Prime Buy
diameter, length, width50.5
length_Attrib, width_AttribFlange diameter
moq, multiple, tierMinQty11
MPN, SKU4120.12A S114/50.5 S110/67
qtyInStockContact Us
tierPrice11939.00
Mediumwater-based
Measuring range0 - 20 cm/s to 0 - 300 cm/s, continuously adjustable
Medium temperature-20 °C to +130 °C / -4 °F to +266 °F
Ambient temperature-20 °C to +70 °C / -4 °F to +158 °F
Set-point rangeapprox. 15 % - 90 % of range setting
Pressureup to 100 bar
Response time2 sec. - 10 sec., according to range setting
Linearity deviation< 5 %
Repeatability< 2 %
Hysteresisapprox. 10 %
Temperature drift< 0.3 % / K
Protection classIP65
Material housingPBTP, glass fibre reinforced
Material sensor headstainless steel 316L, electropolished
Flange diameterD50.5 mm / D64.0 mm
Cable connectionintegrated plug assembly with PG9 fitting, 2 m oilflex cable 3 x 0.5 mm²
Operating voltage18 to 30 VDC, incl. residual ripple
Current consumptionMaximum 150 mA (pulsed)
Power consumptionapprox. 1 W
Switching current≤ 400 mA
Circuit protectionreverse polarity, short circuit and overload
Voltage drop< 2.5 V at Maximum load
Initial operationapprox. 10 sec. after connection of power
Switching condition with flow < switching pointenergized, switched
LEDoff
Switching condition with flow > switching pointcurrentless, not switched

Distributor offers

SellerSKUMOQIn stockMultiplePrices
primebuy.com4120.12A S114/50.5 S110/671Contact Us11 @ $1939.00
