D-001T

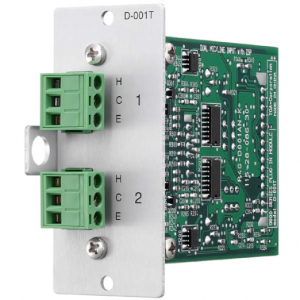

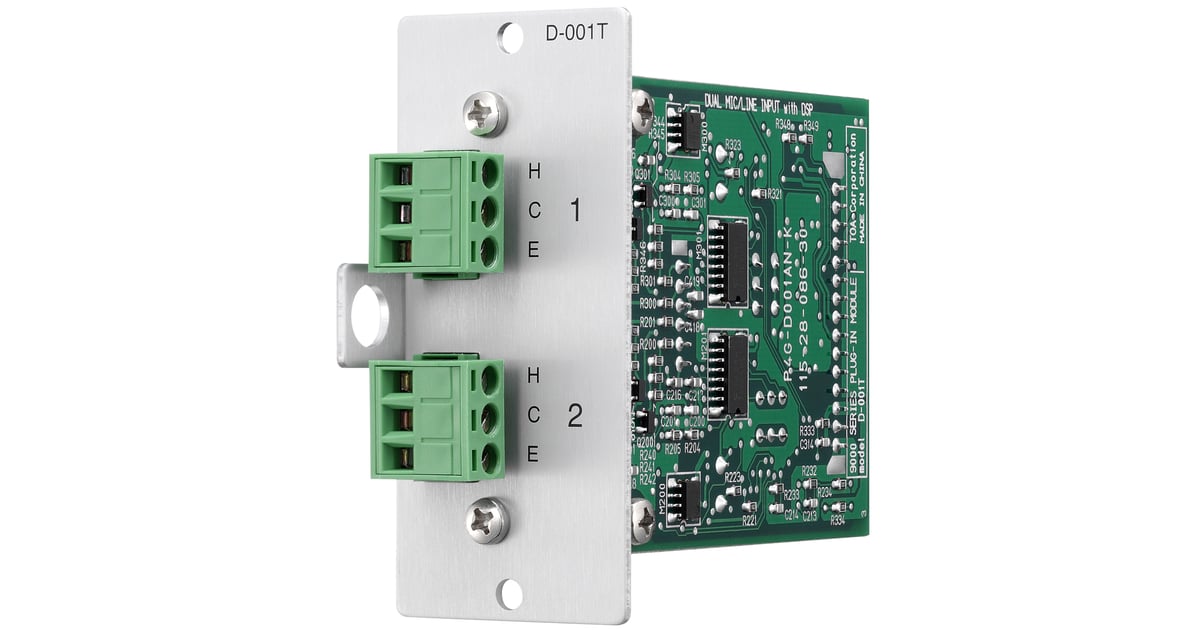

TOA D-001T Dual Mic/Line Input Module with DSP, Designed For Use with the 9000 Series Amplifiers, Adjustable Sensitivity (-60 to -10 dBV), Phantom Power (24 VDC) Key Features - Designed for use with the 9000 Series amplifiers - Two balanced Mic/Line inputs - Digital signal processing (10-Band Parametric EQ, Bass/ Treble, Loudness, High and Low Pass Filters, Compressor) - Adjustable sensitivity (-60 to -10dBV) - Phantom power (24 VDC) - Maximum four per chassis Specifications - Power Source: +24V DC, -24V DC, +6V DC - Current Consumption: 20mA (at +24V DC), 20 mA (at -24V DC), 60mA (at +6V DC) - Input: 2 channels, 3kΩ (when the phantom power is ON)/10kΩ (when the phantom power is OFF), electronically-balanced, removable terminal block (3 pins) - Input Sensitivity: -60, -54, -48, -42, -36, -30, -24, -18, -10 dB (selectable) - Frequency Response: 20Hz - 20kHz, +1, -3dB - Total Harmonic Distortion + N: 0.008 % (at 1kHz, 20Hz - 20kHz BPF, Input sensitivity: -10dB) - Input Equivalent Noise: Under -112dB (at 20Hz - 20kHz BPF, Input short, Input sensitivity: -60dB) - S/N Ratio: Over 73dB (at 20Hz - 20kHz BPF, Input short, Input sensitivity: -10dB) - Cross Talk: Over 75dB (at 20kHz, Input sensitivity: -10dB) - CMRR: Over 62dB (at 1kHz, Input sensitivity: -60dB) - A/D Converter: 24 bit ADC - Sampling Frequency: 48kHz - Tone Control: Bass: ±12dB (at 100 Hz)/Treble: %%p12dB (at 10kHz) - Parametric Equalizer: 10 bands, Frequency: 20Hz - 20kHz, 31 points, Variable range: ±12dB, Q: 0.3 - 5 - High-pass Filter: -12 dB/oct, Variable frequency range: 20Hz - 20kHz, 31 points - Low-pass Filter: -12 dB/oct, Variable frequency range: 20Hz - 20kHz, 31 points - Compressor: Depth: 1-5 - Phantom Power: +24V DC - Operating Temperature: -10°C to +40°C - Finish: Panel: Aluminum, hair-line - Dimensions: 35 (W) x 78 (H) x 91.5 (D) mm - Weight: 82 g
