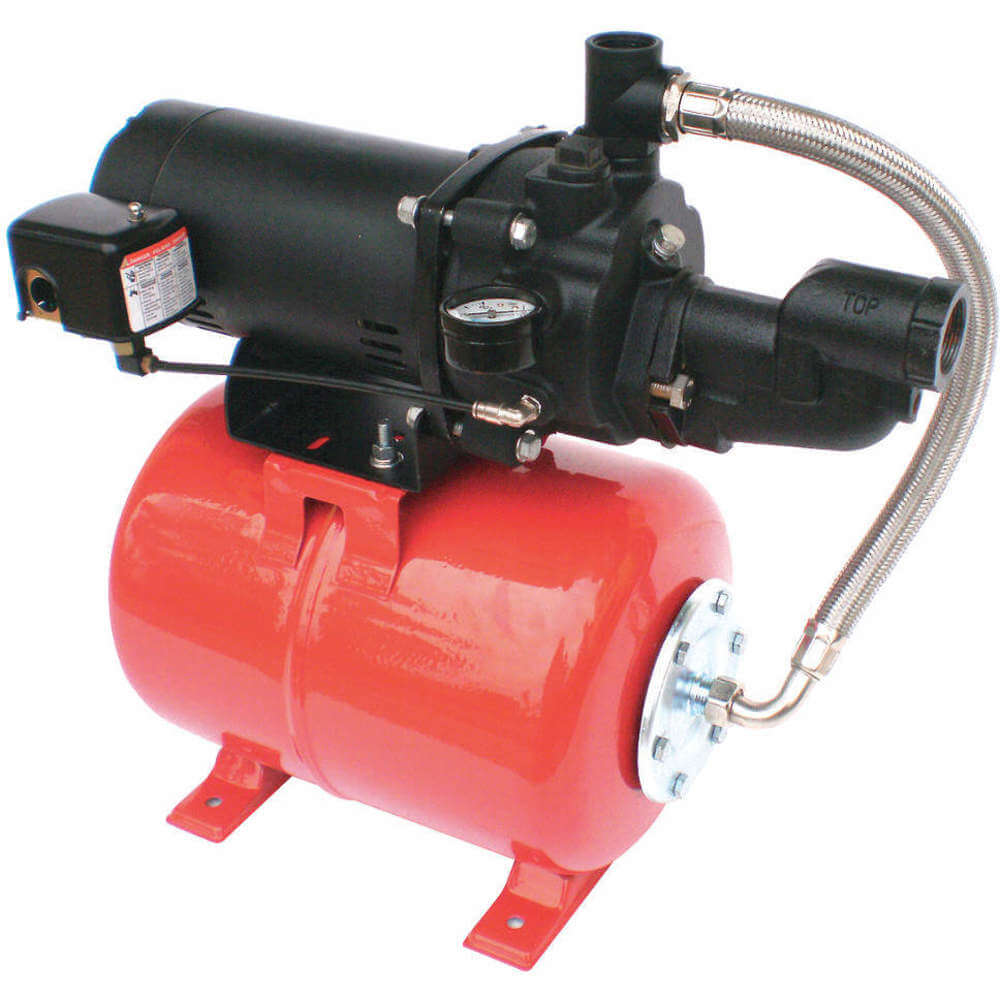

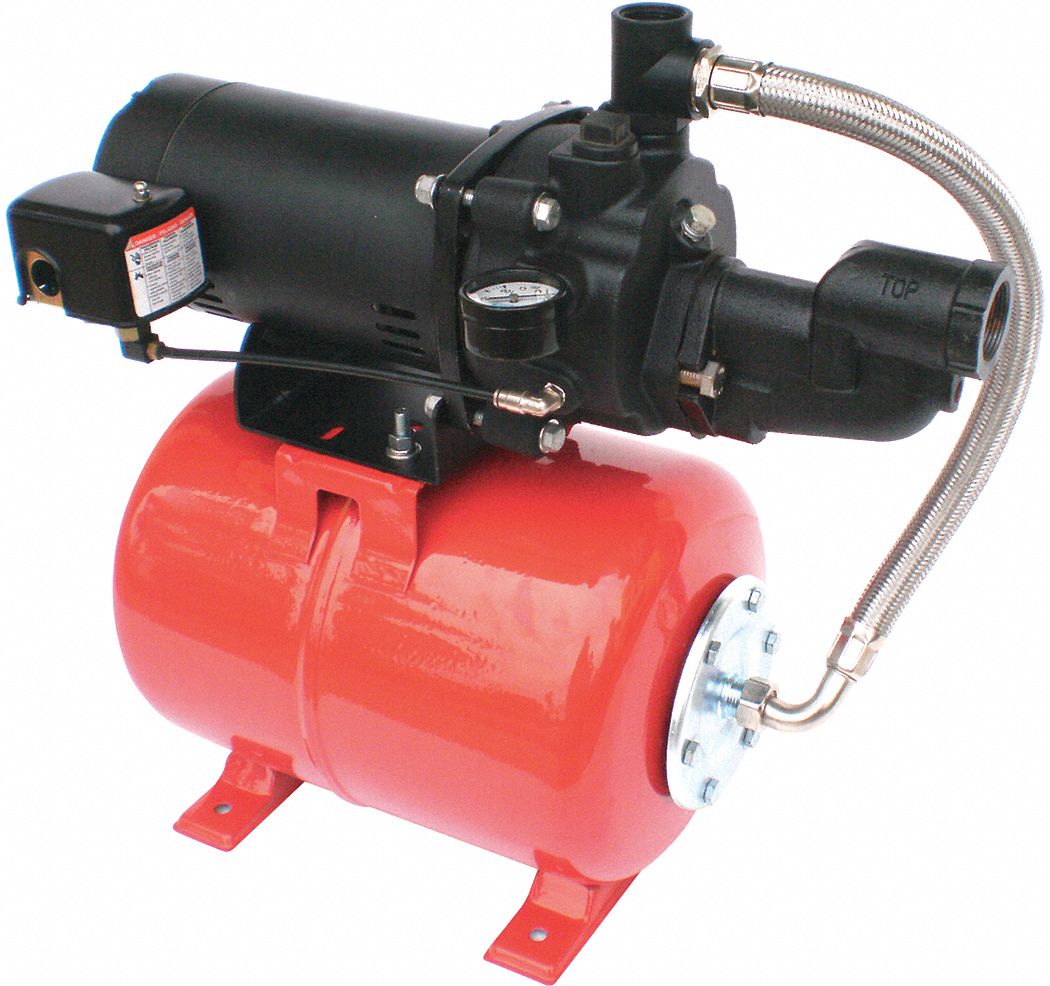

Shallow Well Jet Pump System, HP 3/4 hp, Rated Voltage 115/230V AC, Amps 18/9, Flow Rate @ 10 Ft. Lift @ 30 PSI 15.0 gpm, Flow Rate @ 10 Ft. Lift @ 40 PSI 14.9 gpm, Flow Rate @ 10 Ft. Lift @ 50 PSI 14.1 gpm, Max. Suction Lift 25 ft, Tank Capacity 6.0 gal, Tank Bladder Pressure 28 psi, Shut Off Pressure 65 psi, Max. Inlet Pressure 123 psi, Inlet 1-1/4 in NPT, Discharge 1 in NPT, Overall Length 21 3/16, Overall Width 11 1/2, Overall Height 20

Shallow Well Jet Pump System, HP 3/4 hp, Rated Voltage 115/230V AC, Amps 18/9, Flow Rate @ 10 Ft. Lift @ 30 PSI 15.0 gpm, Flow Rate @ 10 Ft. Lift @ 40 PSI 14.9 gpm, Flow Rate @ 10 Ft. Lift @ 50 PSI 14.1 gpm, Max. Suction Lift 25 ft, Tank Capacity 6.0 gal, Tank Bladder Pressure 28 psi, Shut Off Pressure 65 psi, Max. Inlet Pressure 123 psi, Inlet 1-1/4 in NPT, Discharge 1 in NPT, Overall Length 21 3/16, Overall Width 11 1/2, Overall Height 20

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
CategoryId, CategoryIdL36127
CategoryIdL139
CategoryIdL24622
CategoryL1Pumps
CategoryL2Well Pumps
CategoryL3Shallow Well Jet Pumps
DimensionUnitinch
GraingerSku, MPN5UXK9
UPC190735353486
UnitOfMeasureEA
Weight70
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
height, length, Tank PSI28
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty11
qtyInStock8
qtyInStockOverride-2
SKUG0395665
tierPrice1722.99
urlhttps://www.zoro.com/dayton-shallow-well-jet-pump-sys-34hp-115230v-5uxk9/i/G0395665/
width17
Height (In ), Overall Height20
Length (In )21.1875
Width (In )11.5
Inlet Dia1 1/4 in
Overall Length21 3/16
Overall Width11 1/2
ItemShallow Well Jet Pump System
HP3/4 hp
Inlet1-1/4 in NPT
Amps18/9
Includes1 x 3/4 in Adaptor, Ejector 5UXL4, Nozzle, Pump, Tank, Venturi
Flow Rate @ 10 Ft Lift @ 40 PSI14.9 gpm
Discharge1 in NPT
Tank (Gal )6
GPM of Water @ 25 Ft @ 30, 50 PSI8.3/6.6
Seal TypeMechanical
GPM of Water @ 5 Ft @ 30, 50 PSI17/15.9
Max Case Pressure (PSI)123
GPM of Water @ 10 Ft @ 30, 50 PSI15/14.1
Shut Off (PSI)65
GPM of Water @ 15 Ft @ 30, 50 PSI12.8/11.9
GPM of Water @ 20 Ft @ 30, 50 PSI11.6/10.8
