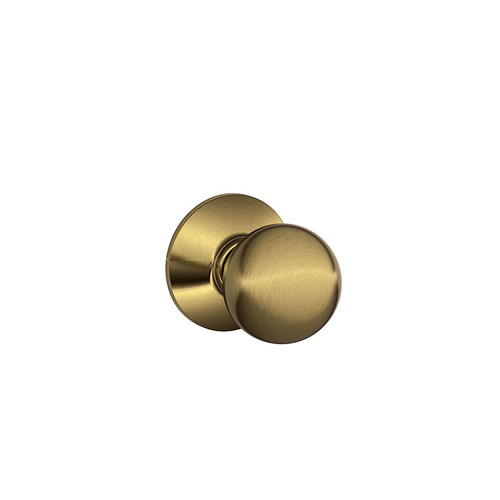

Schlage Residential F10 ORB 609 F10 Orbit Passage Knob Lock, Satin Brass Blackened

F SeriesLever Locks The Schlage F-Series levers offer the benefit of over 90 years of Schlage quality design and workmanship. With a range of levers in a variety of finishes, Schlage has a lockset to complement any architectural style. These value-engineered locksets are built to last. Available Functions: F10/F75 ? Hall & Closet*: Both knobs/levers always unlocked F40/F76 ? Bed & Bath*: Push-button locking Can be opened from outside with small circular tool Turning inside knob/lever releases button F170 ? Non-turning*: Non-turning

Allegion . F10 ORB 609

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAllegion
CategoryIdL3Locks and Accessories
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Residential F10 ORB 609 F10 Orbit Passage Knob Lock, Satin Brass Blackened
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorSatin Brass Blackened Satin Relieved Clear Coated
height2.75
height_AttribProduct Height
MPNF10 ORB 609
qtyInStock0
tierPrice195.4
Thickness1-3/8 In. - 1-3/4 In.
Color Code609/US5
Function10-Hall/Closet
ANSI FunctionF75
Lever/Knob DesignORB - Orbit
Base MaterialBrass
FinishSatin Brass Blackened
Finish Description, Finish FamilyAntique Brass
GradeANSI/BHMA Grade 2
Product TypeCylindrical Lock
Rose/Escutcheon TrimRound Rose
Knob styleORB-Orbit
Backset2-3/8 Inch or 2-3/4 Inch
Projection2.8750
Door Thickness, For Door Thickness1-3/8" to 1-3/4"
Knob Diameter, Bore Size2.1250
Included ComponentsPassage levers, roses, latch, strike, mounting hardware
Product MaterialZinc
Box Length8.1400
Box Width4.3700
Box Height3.0600
WarrantyLimited Lifetime Mechanical and Finish Warranty
StrikeFull Lip 2-1/4 Inch, Radius Corner
Bolt Throw1/2 Inch
ApplicationResidential Single and Multi-Family Doors
Latch TypeSpring
Product Height2-3/4 Inch
Strike Number10-027
Strike TypeRadius, Full Lip
ADA CompliantNo
Strike NameRound Corner Full Lip
StandardsANSI/BHMA A156.39-2015; UL Listed
Faceplate Dimension1" x 2-1/4"
Door PreparationCross Bore 2-1/8"; Edge Bore 7/8"
Function DescriptionLatch retracted by knobs/levers at all times
Function FamilyPassage/Hall/Closet
Product Projection2-7/8 Inch
Strike Size1-5/8 x 2-1/4 Inch
Door Cross Bore2.125 Inch
Door Edge Bore1 Inch
Box Dimensions (L x W x H)3.06x4.37x8.14"
Knob Style FamilyBall Knob
Sub-SeriesF10-ORB

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareF10 ORB 609111 @ $95.40
