Parker

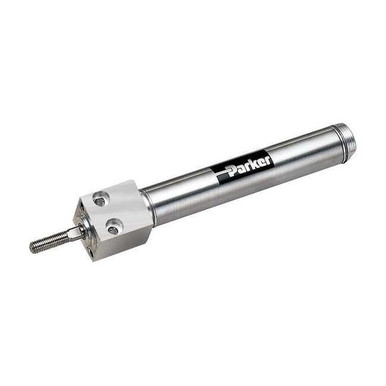

Round Air Cylinder 3/4 Inch Bore 1 Inch Stroke | 20XT34 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.75BFNSR01.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku20XT34
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.25
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height, moq, multiple, tierMinQty1, width1
jsonUrlData924526ffbdad25e5923b
length3.66
MPN0.75BFNSR01.00
qtyInStock13
qtyInStockOverride-2
SKUG6226656
tierPrice133.60
urlhttps://www.zoro.com/parker-air-cylinder-34-in-bore-1-in-stroke-round-body-single-acting-075bfnsr0100/i/G6226656/
ItemAir Cylinder
Cylinder Action, Single Acting/Double ActingSingle Acting
Bore Dia, Air Cylinder Bore Dia, Dimension A3/4 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cc0.25 in
Overall Length4.85 in
Rod Thread Length0.75 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke1 in
Mount, Air Cylinder MountFront Block
Port Size1/8 in FNPT
Air Cylinder TypeRound Body
Dimension Kk1/4"-28 UNF
Spring Retraction Force3 lb
FeaturesNon-Switch Ready
Dimension J0.19 in
Dimension E0.62 in
End Cap Material, Piston MaterialAluminum
Dimension B0.624 in
Rod Thread Size1/4-28 UNF
Temp Range14 Degrees to 140 Degrees F
FinishSilver
Dimension D0.22 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG622665611311 @ $33.60
Raptor SuppliesAG9MVW111 @ $72.11
sustainablesupply.comC26803111-211 @ $45.94
simsupply.comZO-G62266561511 @ $61.65
Radwell0.75BFNSR01.001331
