GRACO . 25M413

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerGRACO
Extra Product NameSunSource | 25M413 GRACO Lubrication | SunSource.com
Weight, Metering gun weight (lb)5.3
WeightUnitlbs
Weight_AttribMetering gun weight (lb)
jsonUrlData9605347c-7a15-4810-aa4e-ae4e00ebcb69
keywordsVALVE,SDM8,1/2NPT,GL 25M413
moq, multiple, tierMinQty11
MPN, SKU25M413
qtyInStock, tierPrice10
snippet25M413 GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.
Compatible materialGear Oil;Oil;ATF
Dimension uom codeIN
Dispense type, Nozzle typeManual
Display TypeElectronic
Division codeLED
Extension typeRigid
Fluid inlet thread gender, Fluid outlet thread genderFemale
IncludesNozzle, Gear Lube Extension
Inlet size (cm)1.27
Inlet size (in)1/2
Inlet size (mm)12.7
Inlet thread typeNPT
Maximum flow rate (gpm)8
Maximum flow rate (l/min)30
Maximum operating temperature (?c), Maximum storage temperature (??c)70
Maximum operating temperature (?f), Maximum storage temperature (??f)158
Maximum recorded dispense9999
Maximum working pressure (bar)103.4
Maximum working pressure (kpa)10340
Maximum working pressure (mpa)10.3
Maximum working pressure (psi)1500
Meter accuracy (%)??0.5
Meter technologyOval Gear
Metering gun weight (kg)2.4
Minimum flow rate (gpm)0.25
Minimum flow rate (l/min)0.9
Minimum operating temperature (?c)-16
Minimum operating temperature (?f)4
Outlet thread typeStraight Thread O-Ring Boss
Overall height (cm)14.6
Overall height (in)5.75
Overall height (mm)146
Overall length (cm)33
Overall length (in)13
Overall length (mm)330
Overall width (cm)9.5
Overall width (in)3.75
Overall width (mm)95
Recommended environmentIndoor
Trigger lockNon-Locking
Trigger protection typeGuard

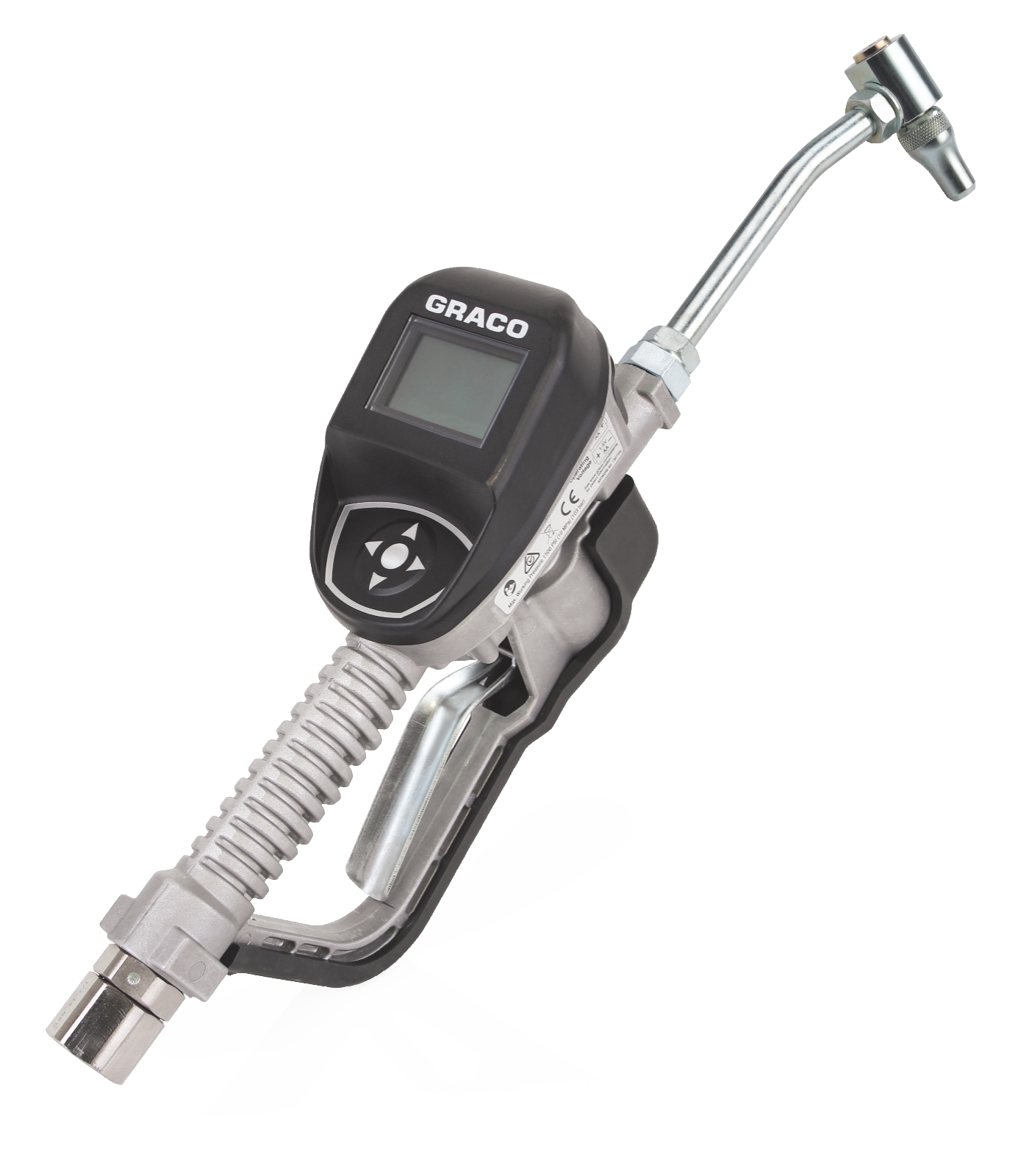

TypeElectronic Metered Dispense Valve
Unit of measureQuart;Pint;Gallon;Liter
Valve TypeMetered
Wetted MaterialAluminum;Stainless Steel;PBT/PC;Zinc;Nitrile Rubber;CS

Distributor offers

SellerSKUMOQIn stockMultiplePrices
sun-source.com25M413111 @ $0.00
autotoolworld.comGRA25M4131-211 @ $657.97
