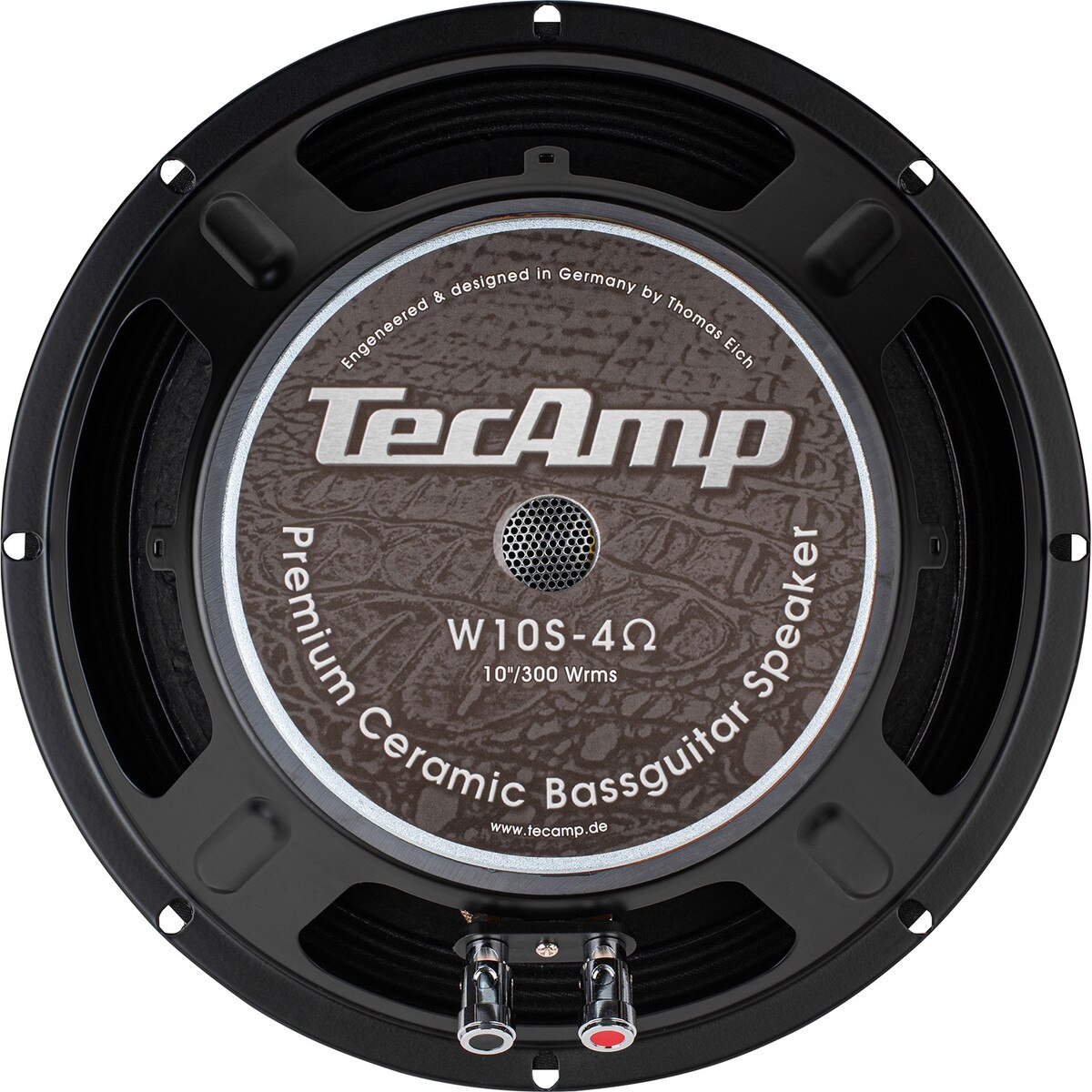

TecAmp W10S-4 10" Professional Woofer 4 Ohm

TecAmp W10S-4 10" Professional Woofer 4 Ohm. Part Number: 299-368 by Factory Buyouts.

Factory Buyouts . W10S-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameTecAmp W10S-4 10" Professional Woofer 4 Ohm
UPC848864064925
Weight, # Mounting Holes8
WeightUnitlbs
depth, length4.125
diameter, height, width10.125
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelW10S-4
qtyInStock0
SKU, Part Number299-368
snippetTecAmp W10S-4 10" Professional Woofer 4 Ohm. Part Number: 299-368 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter10"
Bolt Circle Diameter9.75
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance, DC Resistance (Re)4?
Frequency Response55 to 6,000Hz
Sensitivity94.8dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)60.5Hz
Voice Coil Inductance (Le)0.83mH
Mechanical Q (Qms)8.27
Electromagnetic Q (Qes)0.68
Total Q (Qts)0.63
Compliance Equivalent Volume (Vas)1.04ft?
Mechanical Compliance of Suspension (Cms)0.18mm/N
BL Product (BL)9.36T?m
Diaphragm Mass Inc Airload (Mms)39.2g
Maximum Linear Excursion (Xmax)3.8mm
Surface Area of Cone (Sd)343cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter10.125"
Baffle Cutout Diameter9.375"
Depth4.125"
Sealed Volume1.2ft?
Sealed F382Hz
Vented Volume2.5ft?
Vented F341Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com299-36811
