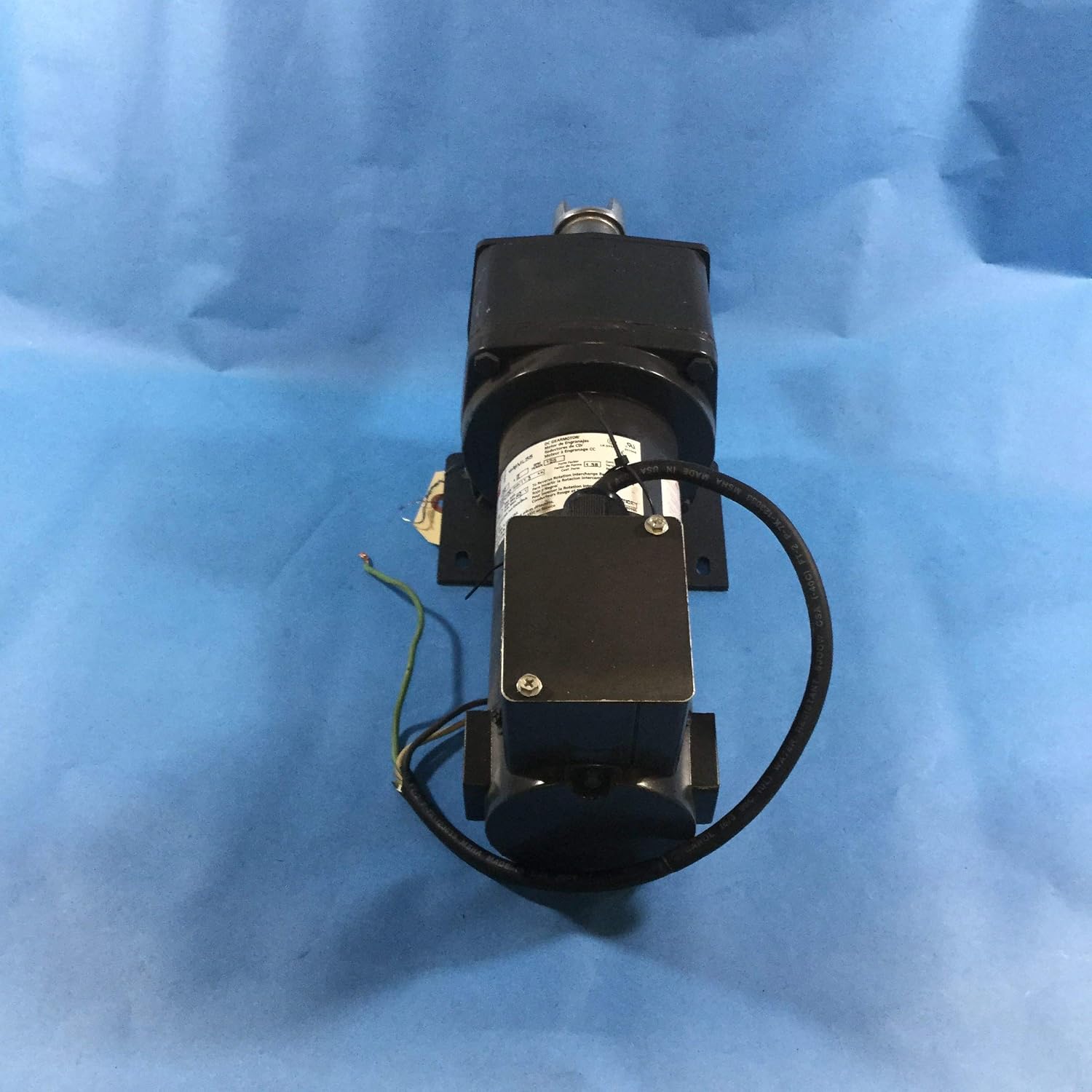

Dayton 6ML55 DC Gearmotor Specifications: Gearmotor Voltage: 90VDC Max. Torque: 100.0 in.-lb. Gearmotor Shaft Type: Single Gearmotor Shaft Orientation: Parallel Rear Shaft Encoder/Pulse Generator Mounting: No Nameplate RPM: 125 Gearmotor Enclosure: Totally Enclosed Nonventilated Gearmotor Mounting Position: All Angle Length Less Shaft: 11-5/16" Reversible Shaft Output: No Overhung Load: 256 lb. Input HP: 1/4 Gear Ratio: 23:1 Full Load Amps: 2.00 Thermal Protection: None Max. Ambient Temp.: 40 Degrees C Gearmotor Rotation: CW/CCW Motor Type: Permanent Magnet DC Overall Length: 12-15/16" Shaft Dia. (Dimension U): 3/4" Shaft Length (Dimension V): 1-5/8"
