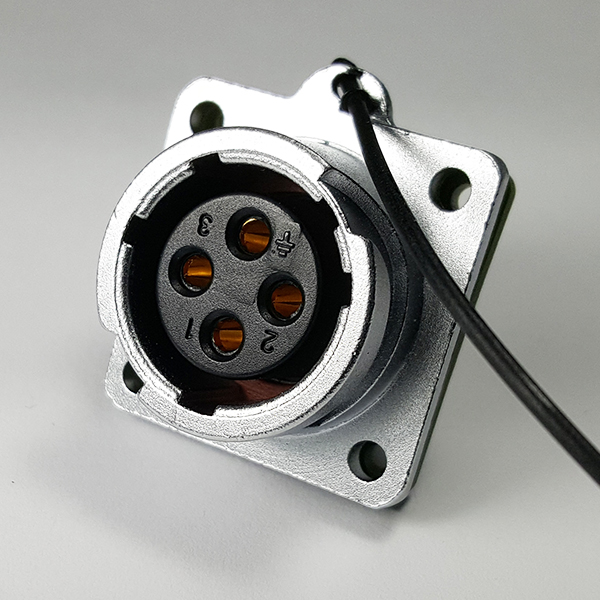

#EEC1005 - 4 Pins waterproof quick-connect female circular connector socket

#EEC1005 - 4 Pins waterproof quick-connect female circular connector socket

Cnlinko . YZ-20-J04SX-01-001

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCnlinko
keywordsYZ-20-J04SX-01-001, 4 Pins quick-connect female circular connector socket, 4 pins waterproof cable connector, 4 pins connector
moq, multiple, tierMinQty11
MPNYZ-20-J04SX-01-001
qtyInStock2
SKUCNLINKO - 4 PINS WATERPROOF QUICK-CONNECT FEMALE CIRCULAR CONNECTOR SOCKET #EEC1005
snippet#EEC1005 - 4 Pins waterproof quick-connect female circular connector socket
tierPrice18.70
Cable specification2.5mm??4mm?/14?12 AWG
Working temperature-40?F~176?F (-40??80?)
Diameter range?8mm??12mm
Connecting mode1/4 bayonet connect
Contact diameter ? number?2.7?4
Assembly wireSolder
Rated Current (A)20A
Housing, the insulating partsHigh-performance engineering plastics
Operating voltage (AC V rms)500V
HardwareZinc Alloy (pearl hard chrome)
Contact resistance<1m?
Pins materialCopper alloy (gold-plated 4U)
Withstanding Voltage (AC V) 1 minute2500V
Waterproof circleSilica gel
Insulation resistance?500M?
Flammability ratingUL94-V0
Protection levelIP65/IP67

Distributor offers

SellerSKUMOQIn stockMultiplePrices
hyperton.comCNLINKO - 4 PINS WATERPROOF QUICK-CONNECT FEMALE CIRCULAR CONNECTOR SOCKET #EEC10051211 @ $8.70
