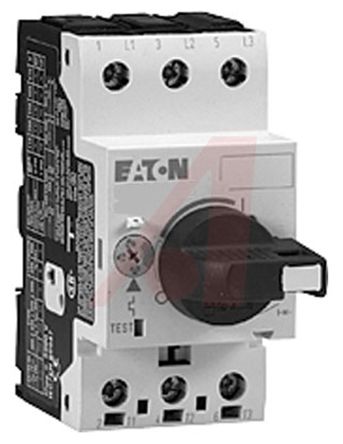

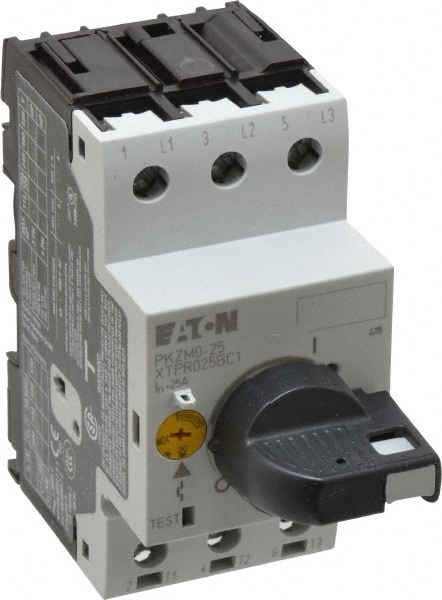

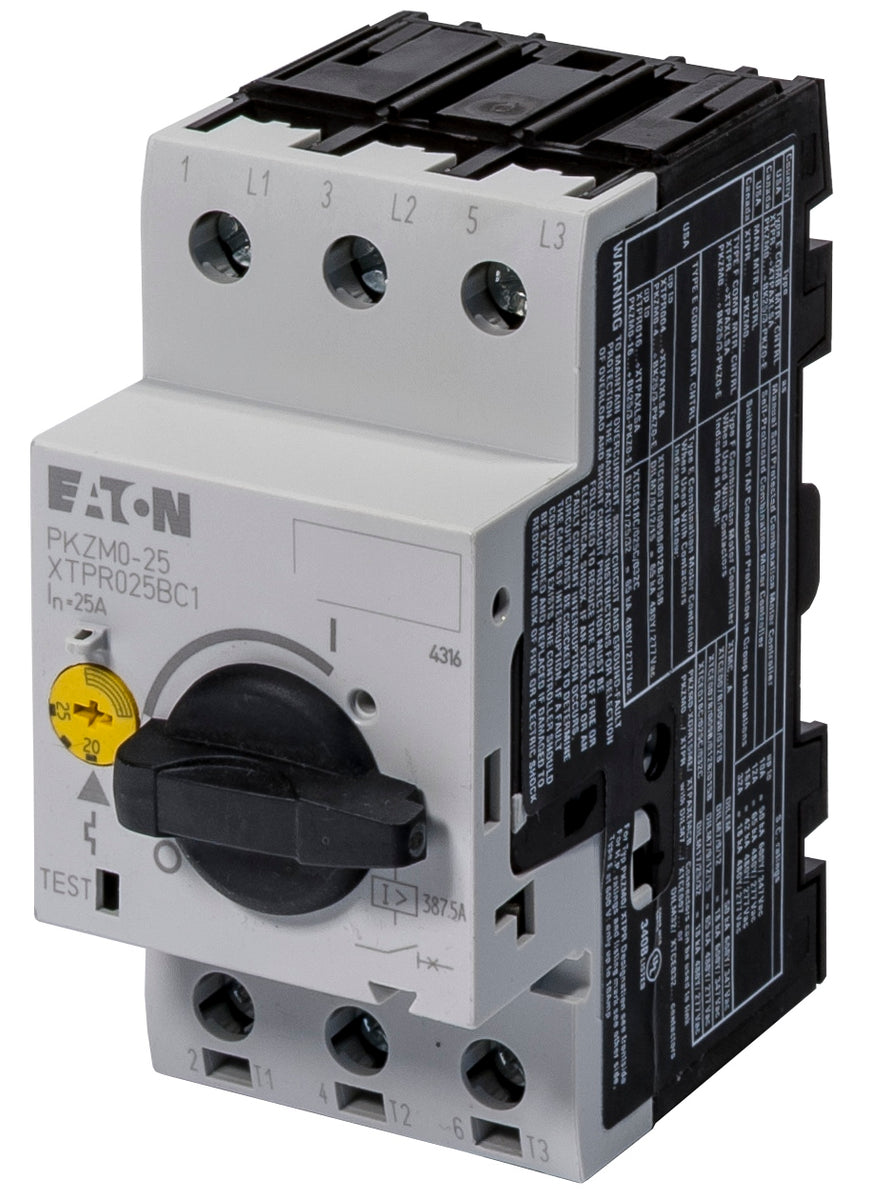

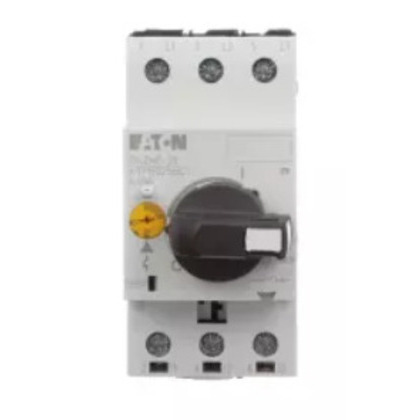

Manual Motor Protector, 20.00 to 25.00A Amps AC, Rotary Knob Operator, Height 3.66 in, Width 1.77 in, Depth 3.46 in, Starter Type Manual, Frame Size Frame B, Max. Voltage 600V AC, Number of Poles 3, HP @ 1 Phase - 115V 1 1/2 hp, HP @ 1 Phase - 230V 3 hp, HP @ 115VDC -, HP @ 230VDC -, HP @ 3 Phase - 200V 5 hp, HP @ 3 Phase - 240V 7 1/2 hp, HP @ 3 Phase - 460-575V -, HP @ 3 Phase - 480V 15 hp, HP @ 3 Phase - 575V 20 hp, Description/Special Features -, Standards CCC, CSA Certified, IEC, UL Listed
Manual Motor Protector, 20.00 to 25.00A Amps AC, Rotary Knob Operator, Height 3.66 in, Width 1.77 in, Depth 3.46 in, Starter Type Manual, Frame Size Frame B, Max. Voltage 600V AC, Number of Poles 3, HP @ 1 Phase - 115V 1 1/2 hp, HP @ 1 Phase - 230V 3 hp, HP @ 115VDC -, HP @ 230VDC -, HP @ 3 Phase - 200V 5 hp, HP @ 3 Phase - 240V 7 1/2 hp, HP @ 3 Phase - 460-575V -, HP @ 3 Phase - 480V 15 hp, HP @ 3 Phase - 575V 20 hp, Description/Special Features -, Standards CCC, CSA Certified, IEC, UL Listed
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Eaton |
|---|---|
| CategoryId, CategoryIdL4 | 17187 |
| CategoryIdL1 | 23 |
| CategoryIdL2 | 17009 |
| CategoryIdL3 | 4517 |
| CategoryL1 | Electrical Supplies |
| CategoryL2 | Industrial Control & Automation |
| CategoryL3 | Motor Controls |
| CategoryL4 | Manual Motor Protectors |
| DimensionUnit | inch |
| GTIN, UPC | 786685364247 |
| GraingerSku | 4WXJ5 |
| UnitOfMeasure | EA |
| Weight | 0.71 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel | False |
| countryOfOrigin | DE |
| height, length | 3.8 |
| jsonUrlData | 924526ffbdad25e5923b |
| moq, multiple, tierMinQty1 | 1 |
| MPN | XTPR025BC1 |
| qtyInStock | 102 |
| qtyInStockOverride | -2 |
| SKU | G0294305 |
| tierPrice1 | 153.99 |
| url | https://www.zoro.com/eaton-manual-mtr-protector-25a-rotary-frame-b-xtpr025bc1/i/G0294305/ |
| width | 2 |
| Depth | 3.46 in |
| Frame Size | Frame B |
| Height | 3.66 in |
| Width | 1.77 in |
| Product Length/Depth | 1.93 in |
| Size | 45 mm |
| Product Height | 3.74 in |
| Operator | Rotary Knob |
| Type | Rotary |
| Amps AC | 20.00 to 25.00A |
| Item | Manual Motor Protector |
| Starter Type | Manual |
| Number of Poles | 3 |
| HP @ 1 Phase - 115V | 1 1/2 hp |
| HP @ 3 Phase - 480V | 15 hp |
| Max Voltage | 600V AC |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 575V | 20 hp |
| Standards | CCC, CSA Certified, IEC, UL Listed |
| HP @ 1 Phase - 230V | 3 hp |
| HP @ 3 Phase - 200V | 5 hp |
| Trip Class | Class 10 |
| Contact Rating | 25 A |
