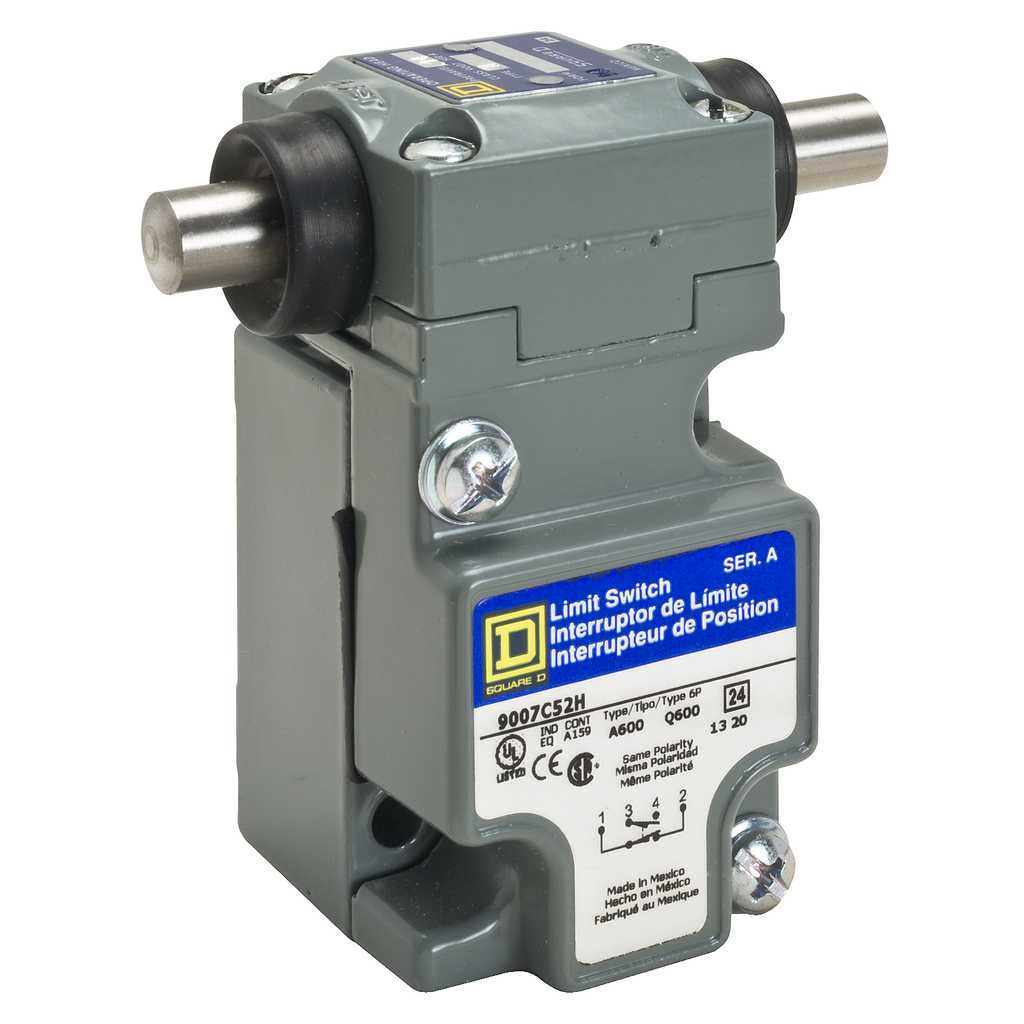

As an Amazon Associate, we earn from qualifying purchases. Home » Mayer Electric Supply » 9007C52H Limit switch, 9007, 600 V 10amp c +options | Mayer Electric Mayer Electric Supply . 9007C52H Gallery Attributes Brand name, Manufacturer name, ManufacturerMayer Electric Supply DimensionUnitinch Extra Product NameLimit switch, 9007, 600 V 10amp c +options | Mayer Electric UPC785901861447 Weight1.25 WeightUnitlbs Weight_AttribNet Weight depth, length3.12 height6.28 height_AttribHeight jsonUrlData/Product/SQUARE-D-LIMIT-SWITCH-600V-10AMP-C-OPTIONS-785901861447 jsonUrlData2f7a3724e-0bf9-4b55-a54b-abb200c9c6de length_AttribDepth moq, multiple, tierMinQty1, Sale Per Indivisible Quantity, Number Of Poles1 MPN9007C52H qtyInStock0 SKUSQD9007C52H tierPrice1535.9449 width1.55 width_AttribWidth Switch Actuationon end Type Of Approachlateral approach, 1 direction Series Nameheavy duty Contacts Type And CompositionNC-NO Movement Of Operating Headlinear Range Of Product9007 Body Typeplug-in Positive Opening, Local Signallingwithout Electrical Connectionscrew-clamp terminals AWG 22...AWG 12), 1-2 Contact Operationsnap action Product Specific Applicationcompact box Fixing Modeby the body Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1 Product Or Component Typelimit switch Materialmetal Device Short Name9007C Type Of Operatorstainless steel stay put side plunger -) Head Typeplunger head Warranty18 months Height3.14-3.14 in Terminals Description Iso N?1(3-4)NO || (1-2)NC [Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block Short-Circuit Protection10 A CC non-time delay [Ie] Rated Operational Current1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.1 A 600 V DC, Q600 NEMA || 0.27 A 250 V AC, Q600 NEMA || 0.55 A 125 V DC, Q600 NEMA Contacts Materialsilver contacts Mechanical Durability10000000 cycles Body Material, Head Materialzinc [Ithe] Conventional Enclosed Thermal Current10 A Contact FormForm Z Switch FunctionSPDT-DB [Uimp] Rated Impulse Withstand Voltage2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA Width1.55 in Depth3.12 in Electrical Durability1000000 cycles Net Weight1.25 lb(US) Repeat Accuracy+/- 0.001 in linear travel of cam Environmental DisclosureENVPEP111160EN Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope Reach RegulationReference contains Substances of Very High Concern above the threshold Ambient Air Temperature For Storage-20-185 ?F Environmental Characteristicstandard environment Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250 Ambient Air Temperature For Operation-20-185 ?F standard environment Electrical Shock Protection Classclass 0 IEC 61140 Shock Resistance60 gn 9 ms IEC 60068-2-27 Vibration Resistance25 gn 10-150 Hz)IEC 60068-2-6 Protective Treatmentepoxy powder coat Ip Degree Of ProtectionIP67 conforming to IEC 60529 Distributor offers SellerSKUMOQIn stockMultiplePrices mayerelectric.comSQD9007C52H111 @ $535.94
