| Brand name, Manufacturer name, Manufacturer, Extra Product Name, Brand, Label, Publisher, Studio | Canarm |
|---|
| DimensionUnit | inch |
|---|
| GraingerSku | 29NV41 |
|---|
| UPC | 062345206288 |
|---|
| UnitOfMeasure | EA |
|---|
| Weight | 65 60.0 60.00 83 |
|---|
| WeightUnit | lbs |
|---|
| cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligible | False |
|---|
| countryOfOrigin | CA |
|---|
| height | 24.9 |
|---|
| jsonUrlData | 924526ffbdad25e5923b |
|---|
| length, width | 30.8 |
|---|
| moq, multiple, qtyInStock, tierMinQty1, Phase, Number of Fans, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity | 1 |
|---|
| MPN, Model, ModelNumber, Model_number, Mpns, PartNumber, Part_number | AX24-4 |
|---|
| qtyInStockOverride | -2 |
|---|
| SKU | G6551851 |
|---|
| tierPrice1 | 1237.00 |
|---|
| url | https://www.zoro.com/canarm-exhaust-fan-hazardous-location-24-in-ax24-4/i/G6551851/ |
|---|
| Drive Package With Motor Included, Drive Package Included, Includes Grill, Includes Motor, Includes Dehumidistat, Speed Controllable | No |
|---|
| Frame Finish | Powder Coated |
|---|
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|
| Dimension C (In ), For Maximum Wall Thickness, For Minimum Wall Thickness | 5 in |
|---|
| CFM @ 0 000-In SP, Supply Airflow @ 0 000 in SP, Exhaust Airflow @ 0 000 in SP, Maximum Airflow | 5,520 cfm |
|---|

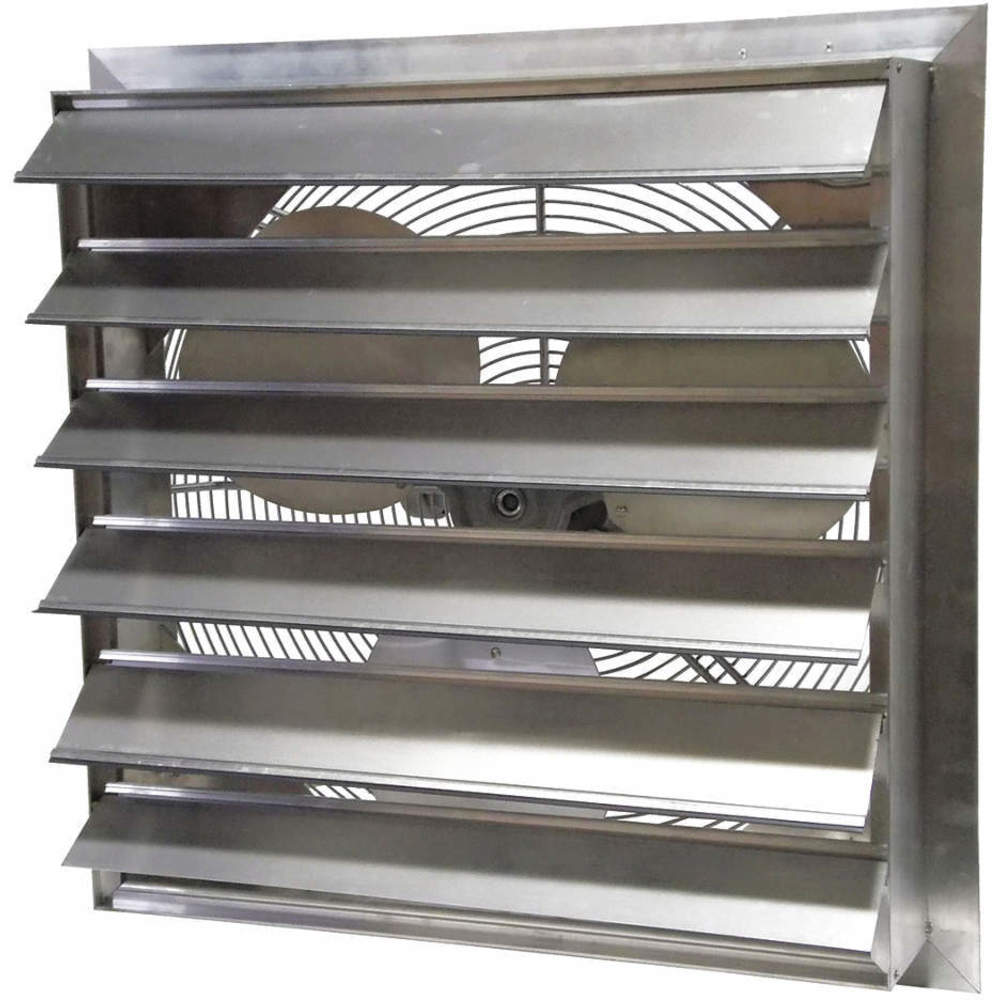

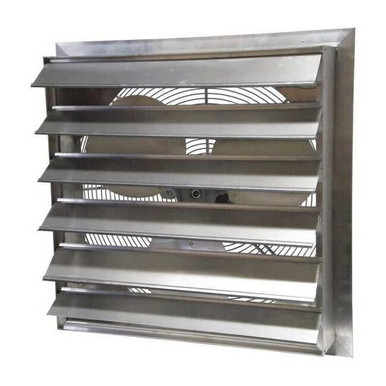

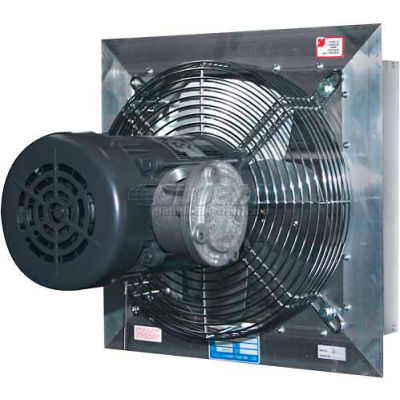

| Item | Shutter Mounted Hazardous Location Exhaust Fan |
|---|
| Dimension A (In ), Outside Dia (In ), Width (In ), Height (In ), Overall Height, Overall Width, Overall Diameter | 28 3/4 in |
|---|
| Max Depth (In ), Overall Depth | 18 3/4 in |
|---|
| Exhaust/Supply Fan Motor HP, Motor Horsepower | 1/3 hp |
|---|
| Max Ambient Temp (F) | 104 Degrees F |
|---|
| Hazardous Location Class | Class I, Div 1, Group C and D; Class II, Div 1, Group F and G |
|---|
| Number of Blades, Number_of_blades | 3 |
|---|
| Motor Insulation | Class B |
|---|
| Shaft Dia (In ), Shaft Diameter | 1/2 in |
|---|
| Flange Width (In ) | 1 1/2 in |
|---|
| For Use With | General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan |
|---|
| Type | Explosion Proof Count ean gtin upc |
|---|
| Hz | 60 |
|---|
| Motor RPM, Motor Speed | 1,725 RPM |
|---|
| Mounting Position, Mounting Orientation, Discharge Direction | Horizontal |
|---|
| Watts, Wattage | 250 W |
|---|
| CFM @ 0 250-In SP, Exhaust Airflow @ 0 250 in SP | 5,130 cfm |
|---|
| Frame Material | Heavy Duty Aluminum |
|---|
| Full Load Amps | 6.6/3.1-3.3 |
|---|
| Propeller Material, Blade Material, Housing Material, Housing Finish | Aluminum |
|---|
| Venturi Clearance Dia (In ), Venturi Diameter | 1/8 in |
|---|
| Includes | Aluminum Blades, Aluminum Housing, EPFC Motor Enclosure, Explosion Proof Motor, Shutters, Wire Chrome Plated Guard |
|---|
| CFM @ 0 125-In SP, Exhaust Airflow @ 0 125 in SP | 5,330 cfm |
|---|
| Sones @ 0 000-In SP @ 5 Ft | 30 |
|---|
| Motor Type | Single Phase |
|---|
| Dimension B (In ) | 25 3/4 in |
|---|
| Dimension D (In ) | 13 3/4 in |
|---|
| Motor Enclosure | Totally Enclosed Air Over |
|---|
| Venturi Depth (In ) | 5/8 in |
|---|
| Fan Voltage, Nominal Voltage, Nameplate Voltage | 115/208-230V AC |
|---|
| Bearing Type | Ball |
|---|
| Blade Dia, Blade Diameter | 24 in |
|---|
| Agency Compliance | cETLus |
|---|
| Maximum Exhaust Airflow @ 0 000 in SP | 4001 to 6000 cfm |
|---|
| Duct Diameter, Duct Height, Duct Shape, Duct Width | Not Applicable |
|---|
| Guard Finish, Color | Chrome |
|---|
| Maximum Noise Level, Noise Level @ 0 100 in SP @ 5 ft, Noise Level @ 0 000 in SP @ 5 ft | 30 sones |
|---|
| Guard Type | Intake |
|---|
| Method of Construction | Stamped |
|---|
| Ventilation Type | Exhaust |
|---|
| Guard Material | Steel |
|---|
| Motor Enclosure Design | Totally Enclosed Air Over (TEAO) |
|---|
| Exhaust Airflow @ 0 100 in SP | 5,410 cfm |
|---|
| Frequency | 50 Hz |
|---|
| Square Opening Required | 20-1/2 to 30 in |
|---|
| Manufacturer Warranty Length | 1 yr |
|---|
| Maximum Noise Level @ 0 000 in SP @ 5 ft | Greater than 9.0 sones |
|---|
| Assembled | Fully Assembled |
|---|
| For Cut-Out Width, For Cut-Out Height | 25 in |
|---|
| Full Load Current | 6.6 A |
|---|
| Fan Style | Shutter-Mounted |
|---|
| Electrical Connection | Hardwired |
|---|
| Vent Design | Ductless |
|---|
| Control Type | Rotary Dial |
|---|
| ASIN, Asin | B004IZAK44 |
|---|
| Amount | 1427.80 |
|---|
| Binding | Tools & Home Improvement |
|---|
| Bullet_point | 1/3 HP single phase motor with overload protection 115//230 Volts Amps 6.6/3.1-3.3 AX24-4 Canarm Shutter-Mounted Exhaust Fan offers powerful ventilation for factories, garages, warehouses and industrial and commercial buildings Air Delivery (CFM) 5, 520 Fan diameter: 24" Dimensions: 28 3/4 x 14 x 28 3/4 Framing Dimensions: 26" x 26" 5" deep Heavy-duty OSHA motor mount/guard and heavy-gauge welded steel rod with plated finish Requires hard wired connection |
|---|
| ClassificationId | 5446824011 |
|---|
| Controller_type | Button Control |
|---|
| Currency, CurrencyCode | USD |
|---|
| DisplayName | Ventilation Fans |
|---|
| Electric_fan_design | exhaust_fan |
|---|
| Height | 1641 24 28.75 34.0 500 75 |
|---|
| Identifier | 00062345206288 0062345206288 062345206288 |
|---|
| IdentifierType | EAN GTIN UPC |
|---|
| IsBrandQuery | True |
|---|
| ItemClassification | BASE_PRODUCT |
|---|
| ItemName, Item_name, Title | Canarm AX24-4 Shutter-Mounted Exhaust Fan, 24-Inch, 115/230-volt |
|---|
| Item_package_weight | 83.0 |
|---|
| Item_type_keyword | bathroom-fans |
|---|
| Item_weight | 60.0 |
|---|
| Keyword | CANCAB24 |
|---|
| Length | 18.75 30.0 34 |
|---|
| Link | https://m.media-amazon.com/images/I/51KGx3pHxZL._SL75_.jpg https://m.media-amazon.com/images/I/51KGx3pHxZL.jpg https://m.media-amazon.com/images/I/81bgDYE1fHL.jpg |
|---|
| List_price | 1427.8 |
|---|
| Marking_type | epa_registration_number |
|---|
| Material | Alloy Steel Aluminum Plastic |
|---|
| MaterialType | Alloy Steel Aluminum HAWA |
|---|
| Mounting_type | Wall Mount |
|---|
| ProductGroup, WebsiteDisplayGroupName | Home Improvement |
|---|
| ProductType | ELECTRIC_FAN |
|---|
| ProductTypeName | ELECTRIC_FAN HOME_LIGHTING_AND_LAMPS |
|---|
| Product_site_launch_date | 2013-03-14T00:00:00.000-07:00 |
|---|
| Recommended_uses_for_product | Exhausting Ventilating |
|---|
| Registration_status | fifra_not_considered_pesticide not_capable_emitting_rf_energy |
|---|
| Size | L |
|---|
| Sku | AX24-4 CANARM AX24-4 SCAN921224SLC |
|---|
| Specification_met | OSHA |
|---|
| StrippedMpns | AX244 |
|---|
| Style | Industrial |
|---|
| URL | http://ecx.images-amazon.com/images/I/51KGx3pHxZL._SL75_.jpg https://m.media-amazon.com/images/I/51KGx3pHxZL._SL75_.jpg |
|---|
| Unit | inches pounds |
|---|
| Unit_count | 1.0 |
|---|
| Units | inches pixels pounds |
|---|
| Variant | MAIN |
|---|
| Warranty | 1 year. |
|---|
| WebsiteDisplayGroup | home_improvement_display_on_website |
|---|
| Width | 1349 24.0 28.75 30 411 62 |
|---|
