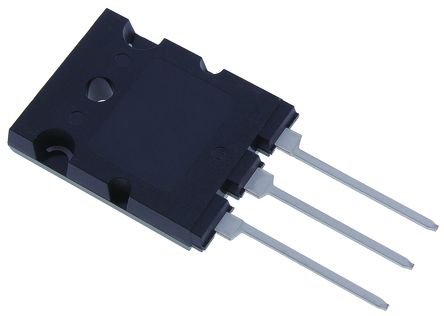

IXYS IXFK120N65X2 | Transistor: N-MOSFET; X2-Class; unipolar; 650V; 120A; 1250W; TO26
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS |
|---|---|
| Extra Product Name | IXFK120N65X2 IXYS | Discrete Semiconductor Products | DigiKey |
| atoms, minimum, moq, multiple, tierMinQty1 | 1 |
| MPN | IXFK120N65X2 |
| qtyInStock | 70 |
| SKU | IXFK120N65X2-ND |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierMinQty6 | 1000 |
| tierMinQty7 | 2500 |
| tierMinQty8 | 5000 |
| tierPrice1 | 17.30000 |
| tierPrice2 | 15.90300 |
| tierPrice3 | 15.24400 |
| tierPrice4 | 13.18400 |
| tierPrice5 | 11.94800 |
| tierPrice6 | 10.95920 |
| tierPrice7 | 10.30000 |
| tierPrice8 | 9.88800 |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25?C | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 60A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 8mA |
| Vgs (Max) | ?30V |
| FET Feature | - |
| Power Dissipation (Max) | 1250W (Tc) |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-264 |
| Package / Case | TO-264-3, TO-264AA |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 225 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 15500 pF @ 25 V |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | IXFK120N65X2-ND | 1 | 70 | 1 | 1 @ $17.30, 10 @ $15.90, 25 @ $15.24, 100 @ $13.18, 500 @ $11.95, 1000 @ $10.96, 2500 @ $10.30, 5000 @ $9.89 |
| IXFK120N65X2 | 1 | 1 | 1 @ $26.40, 3 @ $23.76, 10 @ $20.91, 25 @ $18.90 | ||
| 168-4817 | 25 | 25 | 25 @ $14.81, 50 @ $14.07, 125 @ $13.33 | ||
| Digi-Key | 5629499 | 500 | 500 | 1 @ $24.34, 10 @ $22.45, 100 @ $19.17, 500 @ $17.41 | |
| RS Delivers | 146-4238 | 50 | 50 | 50 @ $17.67, 100 @ $16.93, 250 @ $16.36, 500 @ $15.81, 1000 @ $14.55 | |
| RS Delivers | 917-1445 | 1 | 1 |
