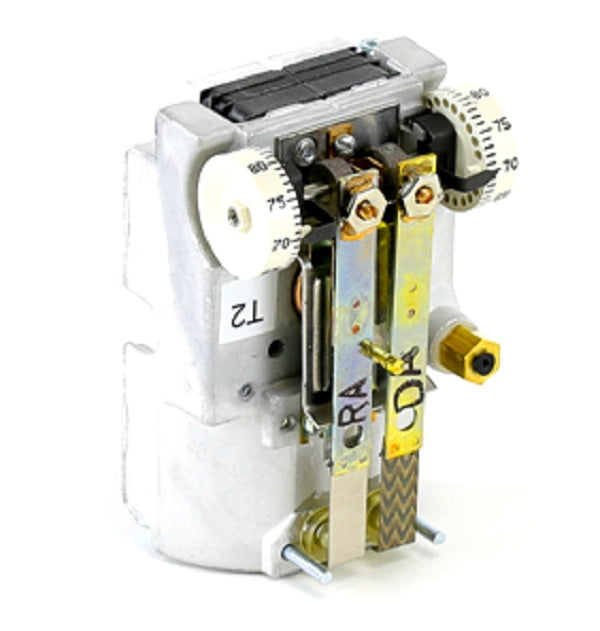

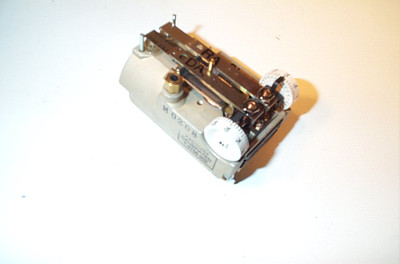

Pneumatic Thermostat, Air Consumption 20 scim

Pneumatic Thermostat, Air Consumption 20 scim

Johnson Controls . T-4756-202

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerJohnson Controls
CategoryId, CategoryIdL49333
CategoryIdL130
CategoryIdL24586
CategoryIdL318089
CategoryL1Heating & Cooling
CategoryL2HVACR and Appliance Controls
CategoryL3Controls
CategoryL4Pneumatic Control Accessories
DimensionUnitinch
GTIN, UPCNone
GraingerSku20RF82
UnitOfMeasureEA
Weight0.4
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height, length4
jsonUrlData924526ffbdad25e5923b
moq, multiple, qtyInStock, qtyInStockOverride, tierMinQty11
MPNT-4756-202
qtySourceqtyInStockOverride
SKUG6070197
snippetPneumatic Thermostat, Air Consumption 20 scim
tierPrice1296.99
urlhttps://www.zoro.com/johnson-controls-pneumatic-thermostat-auto-change-over-t-4756-202/i/G6070197/
width2.75
Overall Height2 1/8 in
Overall Width3 1/8 in
Overall Depth1 3/4 in
Air Connection Outside Diameter1/8 in
ItemPneumatic Thermostat
Pneumatic Thermostat Type/Indexing SwitchHeating And Cooling
Maximum Control Temperature85 Degrees F
Temperature Control Range55 Degrees to 85 Degrees F
Thermostat ActionDirect - 15 psig, Reverse - 20 psig
Dial ConfigurationWarm/Cold
Sensor TypeBi-Metallic Spring
Number of Pipes/Air Flow Output2 Pipes, High Volume
Differential TypeAdjustable
Air Flow OutputHigh Volume
Temperature SettingsDual Temperature
Air Consumption20 scim
Temperature Sensitivity0.75 to 4.0 psig/ Degrees F
Minimum Control Temperature55 Degrees F
Mounting Direction/Includes CoverVertical, No
Mounting DirectionVertical
Temperature ScaleFahrenheit
Number of Pipes2
Maximum Air Pressure25 psig
Number of DialsDual

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG60701971111 @ $296.99
Grainger20RF8211
RadwellT-4756-202111 @ $280.00
SupplyHouseT-4756-20211
Raptor SuppliesAF6YZB111 @ $363.65
State SupplyJC12901411 @ $388.13
Voomi SupplyT-4756-2021-211 @ $332.55
cappusa.com67216711
midwestapplianceparts.comT-4756-202-JO-P111 @ $278.32
furnacepartsource.comT-4756-2021411 @ $329.91
energycontrol.comT-4756-2021Call for Lead Time11 @ $308.43
gsistore.comT-4756-2021211 @ $283.12
hvacdiscountstore.comJOH--T-4756-2021311 @ $250.01
waterpumpsnow.comT-4756-2021-211 @ $281.56
homeessentialsdirect.comT-4756-2021-211 @ $308.41
Digi-Key1582445711
simsupply.comZO-G60701971111 @ $351.55
cappusa.com401225111 @ $255.41
GalcoT-4756-202-JHSN111 @ $326.39
industrialstores.comT-4756-2021411 @ $335.19
blackhawksupply.comT-4756-2021-211 @ $276.93
alliedcontrols.comT-4756-2021Factory Stock11 @ $256.63
grainger.caJHCT4756202111 @ $287.40
