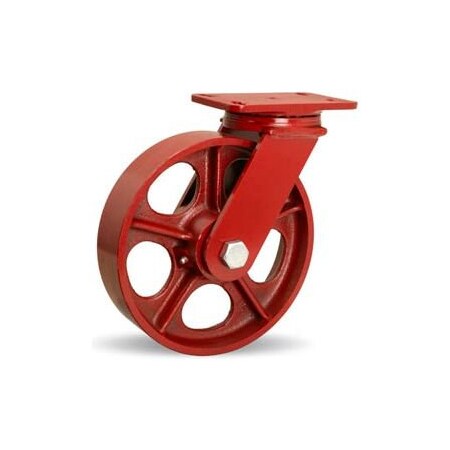

ForgeMaster Swivel Caster, 10" x 2 1/2" Metal Wheel, 1" Straight Roller Bearing

Hamilton . S-FM-10MH

Gallery

Attributes

Brand name, Manufacturer name, Brand, ManHamilton
ManufacturerHamilton Hamilton Caster & Mfg Co
CategoryId, CategoryIdL46740
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
GraingerSku, MPN, Part Number, Keyword, ModelNumber, Model_number, PartNumber, Part_numberS-FM-10MH
Extra Product NameForgeMaster Swivel Caster, 10" x 2 1/2" Metal Wheel, 1" Straight Roller Bearing
UPCNone
UnitOfMeasureEA
Weight31 31.0
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
extendedLead8
extendedQty-2
height, length, moq, multiple, tierMinQty1, width, Number of Wheels, Case, Item_package_quantity, Number_of_items, PackageQuantity1
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3721381
tierPrice1199.44
urlhttps://www.zoro.com/hamilton-forgemaster-swivel-caster-10-x-2-12-metal-wheel-1-straight-roller-bearing-s-fm-10mh/i/G3721381/
Wheel Dia10
Wheel Width2.5
Mounting Bolt Dia0.5
Plate Size4 1/2 x 6 1/2
Mounting Height11.5
Caster Wheel ShapeStandard
Caster Wheel/Tread Material, Caster Core MaterialMetal
Load Rating2400
Replacement WheelW-1025-M-1
Outside Bolt Hole Spacing3 3/8 x 5 1/4
Caster Wheel BearingsRoller
Caster Temp Range-40 to 320 deg(F)
Non-Marking, Thread GuardsNo
Caster Frame MaterialForged Steel
StandardsICWM
Core ColorCrimson Red
Caster Product Group, ItemSwivel Caster
Frame FinishPowder Coat
Caster Plate Hole PatternA
Inside Bolt Hole Spacing2 7/16 x 4 15/16
AsinB000LEQPUY
Bullet_point1" Straight Roller Bearing Capacity: 2200 lbs. Overall Height: 11.5" Wheel Dia.xW: 10x2.5" Wheel Type: Metal
CatIndustrial & Scientific
CatId16310091
ClassificationId511228
Colorred
DisplayNameHardware
Height1000 11.5 2.5 500 75
ItemClassificationBASE_PRODUCT
ItemName, Item_nameHamilton® ForgeMaster™ Swivel 10 x 2-1/2 Metal Roller 2200 Lb. Caster
Item_package_weight, Item_weight31.0
Item_type_keywordplate-casters
Length0.0 10.0 11.5
Linkhttps://m.media-amazon.com/images/I/51UB6pzZTtL._SL75_.jpg https://m.media-amazon.com/images/I/51UB6pzZTtL.jpg https://m.media-amazon.com/images/I/61-2hAY-E7L.jpg
ProductTypeINDUSTRIAL_CASTERS
Product_descriptionHAMILTON ForgeMaster CastersA feature precision tapered thrust bearings placing them among the top double-ball race casters on the market today. -3/8" thick drop forged steel mounting plate. -5/16x2-1/2" plate steel legs are robotically welded inside and outside to forged steel horn base. Sturdy 1" diameter integrally forged kingpin with mounting plate. Main load bearing is 3-1/4" diameter CNC-machined raceway; secondary load bearing has 1" precision tapered thrust bearing that counteracts radial thrust. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs.
Product_site_launch_date2014-04-07T00:00:00.000-07:00
Unitinches pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.0 10.0 1000 2.5 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3721381111 @ $199.44
National Supply Network17537021-211 @ $247.26
ZoroG904872670111 @ $377.20

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Hamilton® ForgeMaster™ Swivel 10 x 2-1/2 Metal Roller 2200 Lb. Caster
Brand: Hamilton
HAMILTON ForgeMaster CastersA feature precision tapered thrust bearings placing them among the top double-ball race casters on the market today. -3/8" thick drop forged steel mounting plate. -5/16x2-1/2" plate steel legs are robotically welded inside and outside to forged steel horn base. Sturdy 1" diameter integrally forged kingpin with mounting plate. Main load bearing is 3-1/4" diameter CNC-machined raceway; secondary load bearing has 1" precision tapered thrust bearing that counteracts radial thrust. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs.
Details
  • Wheel Type: Metal
  • Wheel Dia.xW: 10x2.5"
  • Capacity: 2200 lbs.
  • Overall Height: 11.5"
  • 1" Straight Roller Bearing
Catalog
CategoryIndustrial & Scientific
MPNS-FM-10MH
ManufacturerHamilton
