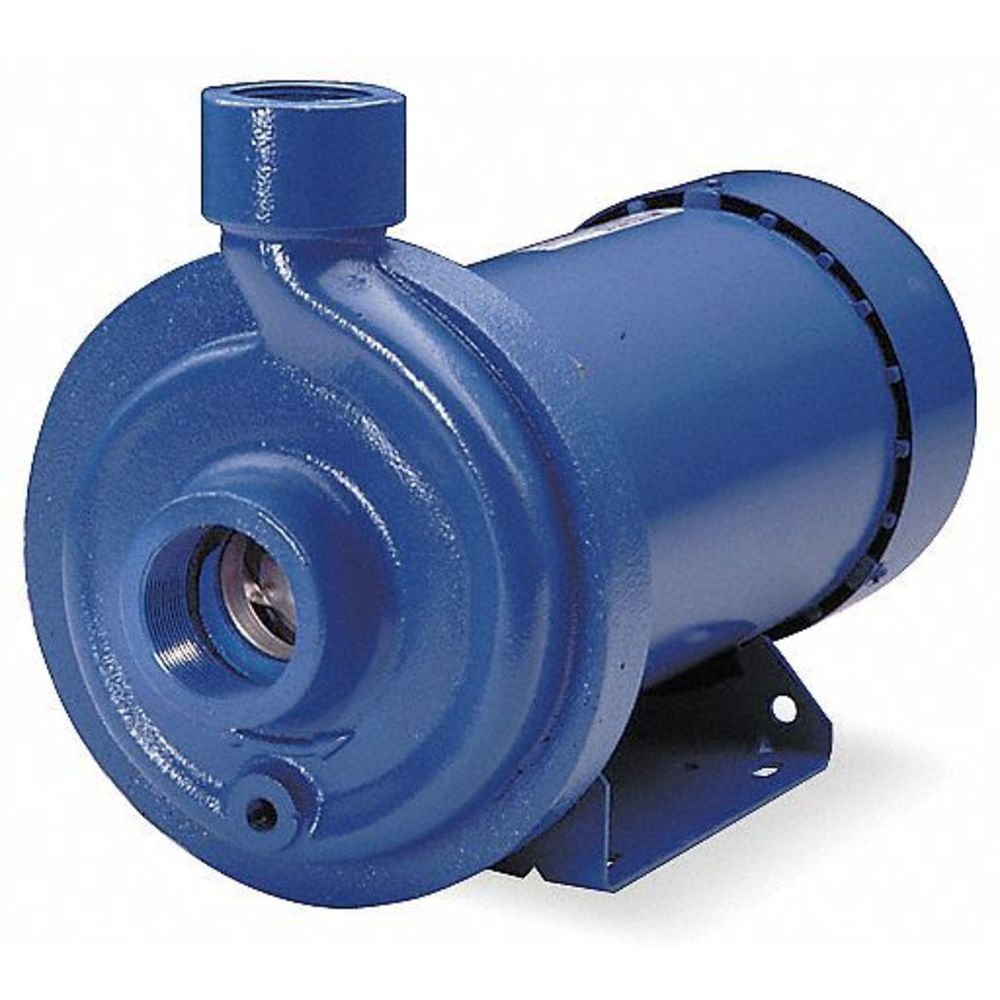

Cast Iron 1 HP Centrifugal Pump 208-230/460V

1MC1E9C0 | Discharge Pump, Straight Center, 200 to 240/480 VAC, 3-Phase, 1 Inch NPT Inlet | CD3WEK | Worldwide Delivery | +44 203 287 5224 | [email protected]

Dayton . 2ZXN3

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
Category, CategoryL1Pumps
CategoryL2Centrifugal Pumps
CategoryL3Straight Centrifugal High Head Pumps
DimensionUnitinch
Extra Product NameCast Iron 1 HP Centrifugal Pump 208-230/460V
UPC190735242759
UnitOfMeasureEA
Voltage208-230/460
Weight43.35
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginIN
extendedLead, moq, multiple, tierMinQty1, HP1
extendedQty-2
height13.8
length22
MPN2ZXN3
qtyInStock0
SKUG2346066
tierPrice1474.84
urlhttps://www.zoro.com/dayton-cast-iron-1-hp-centrifugal-pump-208-230460v-2zxn3/i/G2346066/
width11.4
Inlet Pressure, Max Case Pressure200 psi
HP - Pumps1 hp
Max Dia Solids5/16 in
Max Liquid Temp200 Degrees F
Motor Enclosure, Motor TypeODP
Impeller MaterialBrass
Phase, GPM of Water @ 110 Ft of Head, Phase - Pumps3
Wetted MaterialsBrass, Carbon, Cast Iron, Ceramic, Stainless Steel, Viton
Agency ComplianceUL Approval in Motor
Motor RPM3,450 RPM
Width8 in
Outlet Size - Pumps1 in NPT
GPM of Water @ 70 Ft of Head34
Bearing TypeBall
Inlet1-1/4"
Hz60
GPM of Water @ 30 Ft of Head51
Amps3.7-3.2/1.6
Voltage - Pumps208 to 240/480V AC
Motor Enclosure - PumpsOpen Dripproof
GPM of Water @ 50 Ft of Head43
ItemCentrifugal Pump
Outlet1"
GPM of Water @ 15 Ft of Head57
GPM of Water @ 90 Ft of Head23
Length, Length (Straight Wireway)15 1/2 in
Housing MaterialCast iron
Item - Straight Centrifugal PumpsStraight Centrifugal High Head Pump
GPM of Water @ 80 Ft of Head28
Port Rotation4 Position Increments
Manufacturers Warranty Length1 yr
GPM of Water @ 25 Ft of Head53
GPM of Water @ 10 Ft of Head59
Max Specific Gravity1.0
Frame56J
Housing Material - PumpsCast Iron
GPM of Water @ 60 Ft of Head38
Best Efficiency GPM @ Head34 @ 70 ft
Seal MaterialViton
GPM of Water @ 20 Ft of Head55
Inlet Size - Pumps1-1/4 in NPT
Max Head112 ft
Max Pressure, Max Pressure - Pumps48 psi
DutyContinuous
Height8 1/2 in
Impeller TypeClosed
IncludesManual
GPM of Water @ 40 Ft of Head47
GPM of Water @ 100 Ft of Head13
Country of Origin (subject to change)India

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2346066111 @ $474.84
Raptor SuppliesAC4HRJ111 @ $1580.55
AmazonSCB001QRMUAE111 @ $517.52
sustainablesupply.comC17405721-211 @ $601.06
