LVR005NS-2 Littelfuse Inc. | Circuit Protection | DigiKey

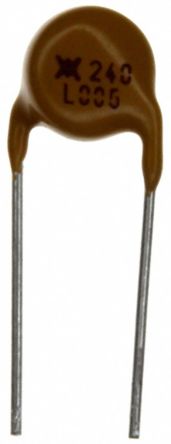

Polymeric PTC Resettable Fuse 240V (265V Int) 50 mA Ih Through Hole Radial, Disc
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Littelfuse Inc. |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | LVR005NS-2 Littelfuse Inc. | Circuit Protection | DigiKey |
| atoms, tierMinQty1 | 1 |
| extraShipping | 0 |
| height | 0.39 |
| height_Attrib | Height - Seated (Max) |
| moq, multiple | 1,500 |
| MPN | LVR005NS-2 |
| qtyInStock | 18150 |
| SKU | 1851338 |
| snippet | Polymeric PTC Resettable Fuse 240V (265V Int) 50 mA Ih Through Hole Radial, Disc |
| tierMinQty10, tierMinQty6 | 250 |
| tierMinQty2 | 5 |
| tierMinQty3 | 10 |
| tierMinQty4 | 50 |
| tierMinQty5, tierMinQty9 | 100 |
| tierMinQty7 | 500 |
| tierPrice1 | 0.828 |
| tierPrice10 | 0.43128 |
| tierPrice2 | 0.8049999999999999 |
| tierPrice3 | 0.78085 |
| tierPrice4 | 0.65711 |
| tierPrice5 | 0.5455599999999999 |
| tierPrice6 | 0.49597199999999997 |
| tierPrice7 | 0.42156699999999997 |
| tierPrice9 | 0.47440 |
| Category | Circuit Protection |
| Series | PolySwitch?, LVR |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 240V (265V Int) |
| Current - Max | 1 A |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Trip (It) | 120 mA |
| Time to Trip | 10 s |
| Resistance - Initial (Ri) (Min) | 18.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 65 Ohms |
| Operating Temperature | -20?C ~ 85?C |
| Ratings, Thickness (Max) | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.272" Dia x 0.181" T (6.90mm x 4.60mm) |
| Height - Seated (Max) | 0.390" (9.90mm) |
| Lead Spacing | 0.200" (5.08mm) |
| Approval Agency | CQC, CSA, TUV, UL |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1851338 | 1500 | 18150 | 1500 | 1 @ $0.83, 5 @ $0.81, 10 @ $0.78, 50 @ $0.66, 100 @ $0.55, 250 @ $0.50, 500 @ $0.42 |
| iodParts | RF1524-000 | 1 | 1 | ||
| 164-8199 | 1 | 1 | |||
| Newark | 34AC5012 | 1500 | 1500 | 1 @ $0.38, 5000 @ $0.37, 10000 @ $0.34, 20000 @ $0.32, 30000 @ $0.29, 50000 @ $0.28 | |
| Digi-Key | 5268569 | 1500 | 114 | 1500 | 1 @ $0.77, 5 @ $0.75, 10 @ $0.73, 50 @ $0.61, 100 @ $0.51, 250 @ $0.46, 500 @ $0.39 |
