Branch unit, EZ Meter-Pak, 225A, 3 sockets, 208Y/120VAC, horn bypass, ringless, 800A busbar | Mayer Electric

Mayer Electric Supply . EZMH313225

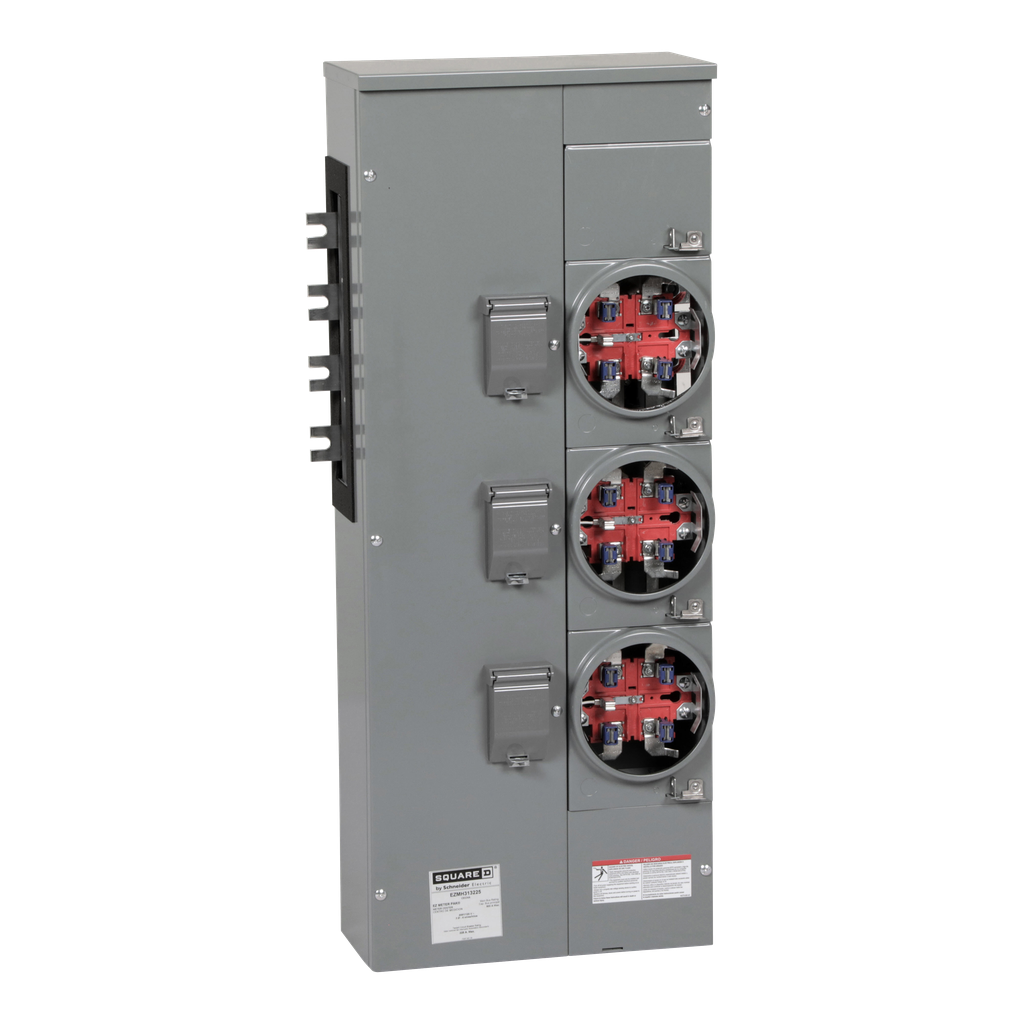

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameBranch unit, EZ Meter-Pak, 225A, 3 sockets, 208Y/120VAC, horn bypass, ringless, 800A busbar | Mayer Electric
UPC785901323112
depth, length8.09
height43.41
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Branch-unit-EZ-Meter-Pak-225A-3-sockets-208Y-120-VAC-horn-bypass-ringless-800A-Al-busbar-785901323112
jsonUrlData262a617b4-0fb8-47ed-8c32-abd200621102
length_AttribDepth
moq, multiple, tierMinQty11
MPNEZMH313225
qtyInStock0
SKUSQDEZMH313225
tierPrice11138.17
width17.38
width_AttribWidth
Range Of ProductMeter-Pak
Bypass Typehorn bypass
Meter Socket Typeringless
Number Of Meter Sockets3
Line Rated Current225 A
Bus Rated Current800 A
Product Or Component TypeMeter Center Branch Unit
Number Of Jaws5 without jaw release
Warranty18 months
Product CertificationsUL Listed
Height43.41 in
Phase3 phase in || 1 phase out
Nema Degree Of ProtectionNEMA 3R
Device Mountingsurface
[Ue] Rated Operational Voltage208Y/120 V AC
Materialaluminium busbar
Enclosure Materialsteel
Wiring Configuration4-wire
Width17.38 in
Depth8.09 in
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury FreeYes
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDEZMH313225111 @ $1138.17
