Order YA25NK by Burndy 50228X Compression Connector, 1/0 CU-Long 5/16"-Nikplt, (Pack of 100 pcs) - US Mega Store

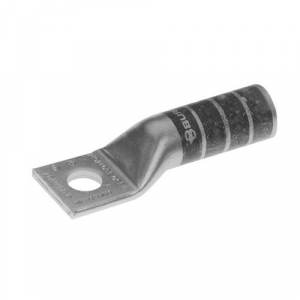

Burndy, YA25NK, 50228X Compression Connector, 1/0 CU-Long 5/16"-Nikplt 1/0 Cu-long 5/16-nikplt.

Burndy . YA25NK

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA25NK
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA25NK by Burndy 50228X Compression Connector, 1/0 CU-Long 5/16"-Nikplt, (Pack of 100 pcs) - US Mega Store
diameter, height, length0.51
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA25NK
qtyInStockContact Us
snippetBurndy, YA25NK, 50228X Compression Connector, 1/0 CU-Long 5/16"-Nikplt 1/0 Cu-long 5/16-nikplt.
tierPrice114.11
width0.75
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index12
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
PlatedY
Plating TypeNickel
TypeLong Barrel, Nickel Plated
Dimension - B Length fraction1-3/8 in
Dimension - B Length inch1.38 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.33 in
Dimension - Bolt Size fraction (Inch)5/16
Dimension - D inch0.70 in
Dimension - Hole Size mm8 mm
Dimension - L Length Overall mm63 mm
Dimension - Length Overall inch2.48 in
Dimension - N inch0.34 in
Dimension - Outside Diameter inch0.51 in
Dimension - Pad Width inch0.75 in
Dimension - Strip Length inch1-7/16
Dimension - Z inch0.36 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Size1/0
Conductor - Copper Str Size Range1/0 AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA25NK1Contact Us11 @ $14.11
