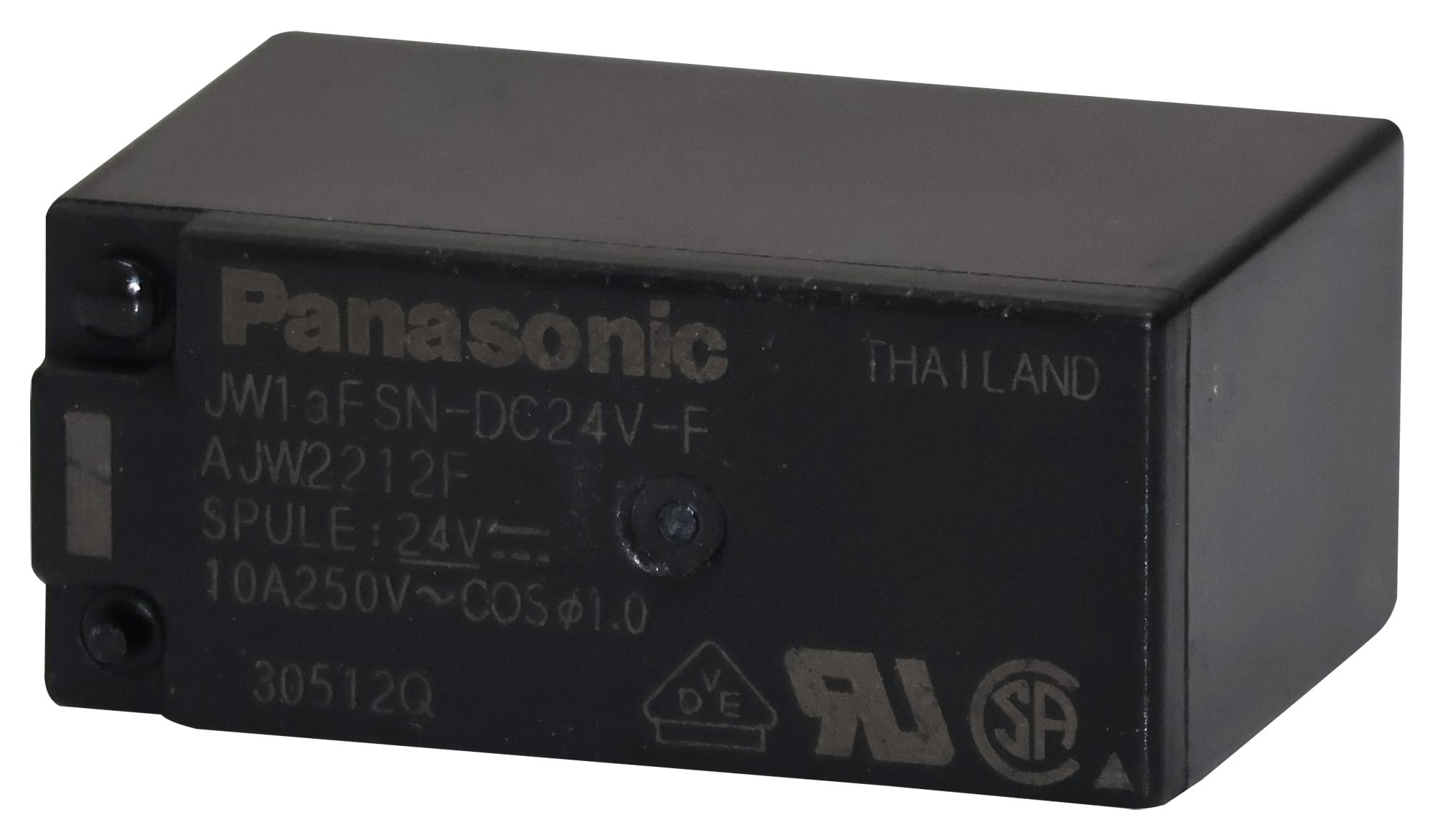

JW1AFSN-DC24V-F Panasonic Electric Works | Relays | DigiKey
RELAY GEN PURPOSE SPST 10A 24V
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Panasonic Electric Works |
|---|---|
| Extra Product Name | JW1AFSN-DC24V-F Panasonic Electric Works | Relays | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | JW1AFSN-DC24V-F |
| qtyInStock | 6088 |
| SKU | 255-2823-ND |
| Package | Box |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Switching Voltage | 250VAC, 30VDC - Max |
| Coil Type | Non Latching |
| Features, Coil Insulation | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40?C ~ 60?C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
| Contact Rating (Current) | 10 A |
| Coil Current | 22 mA |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Coil Resistance | 1.1 kOhms |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 255-2823-ND | 1 | 6088 | 1 | ||
| Allied Electronics | 70618221 | 100 | 1 | ||
 Onlinecomponents.com | JW1AFSN-DC24V-F | 1 | 1633 | 1 | 1 @ $1.87, 10 @ $1.74, 25 @ $1.72, 50 @ $1.44, 100 @ $1.30, 500 @ $1.20 |
 Newark | 27K6713 | 1 | 233 | 1 | 1 @ $2.41, 10 @ $2.18, 25 @ $2.07, 50 @ $1.96, 100 @ $1.85, 500 @ $1.76 |
| 1Source | JW1AFSN-DC24V-F | 1 | 1 | ||
| Future Electronics | 7014615 | 1 | 8696 | 1 | 1 @ $2.89, 50 @ $2.21, 100 @ $2.10, 250 @ $1.97, 500 @ $1.88 |
| iodParts | JW1AFSN-DC24V-F | 150 | 900 | 150 | 150 @ $1.82, 550 @ $1.73 |
 Newark | 69AH0405 | 1 | 1 | 1 @ $2.42, 10 @ $2.12, 25 @ $2.01, 50 @ $1.92, 100 @ $1.81, 500 @ $1.71 | |
| AmazonSC | B00HPM52T0 | 1 | 1 | ||
| JT33-JW1AFSN-DC24V-F | 1 | 500 | 1 |
