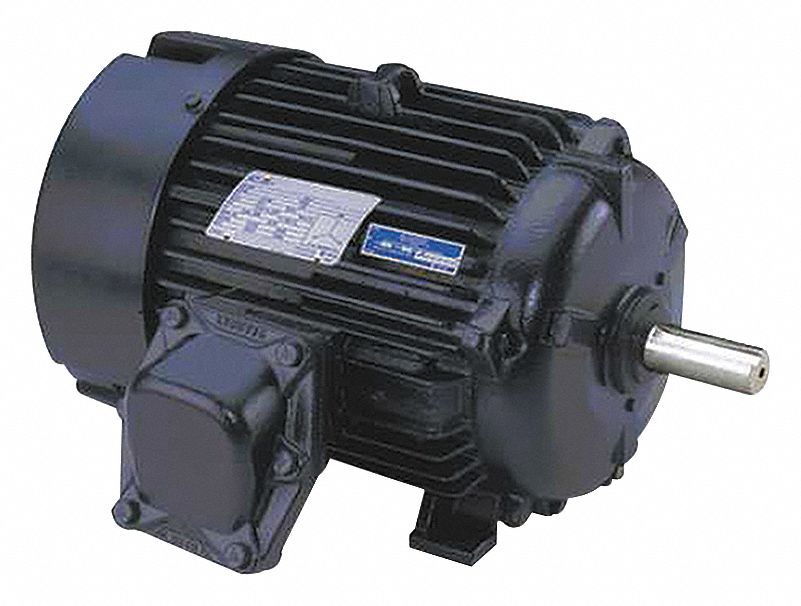

HAZLOCMOTOR,3-PH,20 HP 208-230/460

AC

MARATHON . U009

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMARATHON
DimensionUnitinch
Extra Product NameHAZLOCMOTOR,3-PH,20 HP 208-230/460
UNSPSC26101602
Voltage230/460V AC
Weight408.0
WeightUnitlbs
diameter, length, width1.625
length_Attrib, width_AttribShaft Dia.
moq, multiple, tierMinQty1, No of Speeds1
MPNU009
originalCurrency{'currency': 'CAD', 'tierPrice1': '4397.93'}
qtyInStock0
SKUAOSU009
tierPrice13192.04398158
ItemHazardous Location Motor
PhaseThree
HP20
Full Load Amps48.0/24.1
Usable @ 208V, Usable @ 200VNo
Hz60
Motor Service Factor1.15
Ins ClassF
Temp CodeT3B
Duty CycleContinuous
NEMA DesignB
Hazardous Location DivisionDivision 1
Lead Length8 in
Motor Frame MaterialCast Iron
Shaft Length4 3/16 in
Conduit Box LocationExterior
Motor BearingsBall
Nominal Efficiency93 %
StandardsUL Listed (E12044), CSA Certified (LR47504)
Green Certification or Other RecognitionNEMA Premium(R) Rated
Motor ApplicationHazardous Location
Motor Design3-Phase
Nameplate RPM1,775
Frame256T
Max Ambient Temp40 Degrees C
Motor Thermal ProtectionT-Stat
Hazardous Location Class1 C,D / 2 F,G
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Mounting TypeRigid Base
Motor Shaft RotationCW/CCW
Motor Mounting PositionHorizontal
Length Less Shaft21 1/16 in
Shaft Dia1 5/8 in
Motor Shaft DesignKeyed
Includes(11) Leads In Conduit Box
Overall Length25 1/4 in
Motor Efficiency GroupNEMA Premium Efficient
CC NumberCC003A
Manufacturers Warranty Length3 yr

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caAOSU009111 @ $3192.04
GalcoU009-MARA111 @ $0.00
