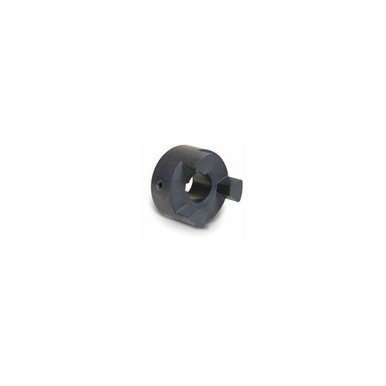

L09024MM L090X24MM L-JAW HUB
L09024MM L090X24MM L-JAW HUB
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | TB Woods |
|---|---|
| CategoryL1 | Shaft Couplings and Collars |
| CategoryL2 | Jaw Couplings |
| CategoryL3 | Components |
| CategoryL4 | Hub Halves |
| Extra Product Name, snippet | L09024MM L090X24MM L-JAW HUB |
| moq, multiple | 6 |
| MPN | L09024MM |
| qtyInStock, Max parallel misalignment | 0 |
| SKU | 338196 |
| tierMinQty1 | 1 |
| tierPrice1 | 12.07 |
| Keyway | 8 mm x 3.3 mm |
| Bore size | 24MM |
| Product family | L-jaw hub |
| Size code | 90 |
| Material type, Hub material | Sinter carbon steel |
| Overall length, O D | 54 |
| Dimension (in ) (OD) | 2.110 |
| Max compatible bore size | 25 |
| Setscrew length (in) | 3/8 |
| Max speed, Max RPM | 9000 |
| Setscrew length | 0.375 |
| Dimension (in) (LTB) | 0.81 |
| Bore shape | Finish with keyway |
| Dimension (in) (S) | 0.42 |
| Min compatible bore size | 7 |
| Setscrew size | 1/4 20 UNC - 2B |
| Jaw type | Straight |
| Dimension (in) (HD) | NA |
| Length-through-bore | 21 |
| Center | 0.5 |
| Bore tolerance (in) | +0.020MM/. 041MM |
| Bore tolerance | +.020/.041 |
| Coupling size | L090 |
| Keyseat | 8MM X 3.3MM |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| MRO Supply | 338196 | 6 | 6 | 1 @ $12.07 | |
| Applied Industrial | 101807590 | 1 | 1 | ||
| sustainablesupply.com | C1659975 | 1 | -2 | 1 | 1 @ $12.71 |
 Zoro | G3326967 | 1 | 40 | 1 | 1 @ $11.59 |
 simsupply.com | ZO-G3326967 | 1 | 22 | 1 | 1 @ $19.69 |
