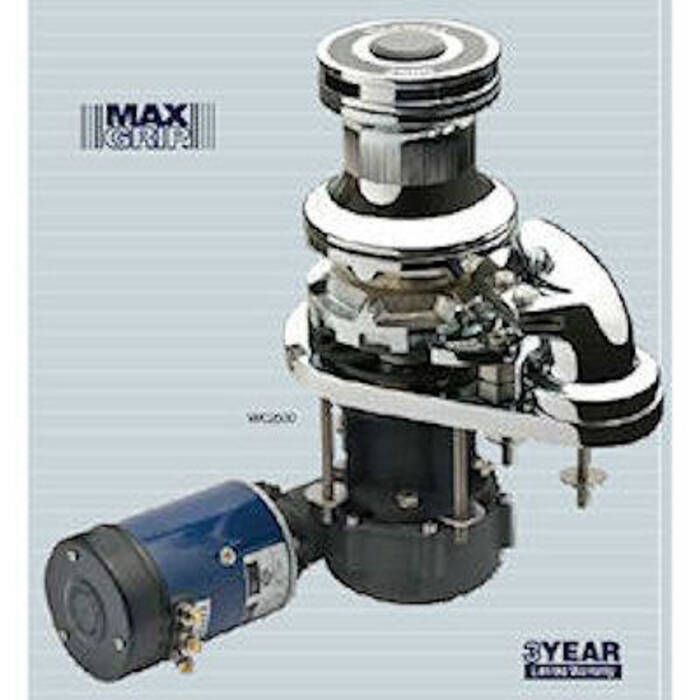

Maxwell VWC 2500 Vertical Windlass Kit | Defender
The VWC Series is designed for automatic vertical handling of chain-only anchoring rodes while offering an independent capstan for the retrieval of a secondary rope and chain rode or to assist with docking procedures.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Maxwell |
|---|---|
| Extra Product Name | Maxwell VWC 2500 Vertical Windlass Kit | Defender |
| Weight | 84 |
| WeightUnit | lbs |
| Weight_Attrib | Net Weight (DC) |
| keywords | marine supplies, outboard motors, marine hardware, inflatable boats, marine electronics |
| moq, multiple, tierMinQty1 | 1 |
| MPN | VWC250012V054 |
| qtyInStock | 0 |
| SKU | 874927 |
| tierPrice1 | 4929 |
| Static Hold | 4840 lbs (2200 kg) |
| Maximum Pull | 2500 lbs (1135 kg) |
| Chain Short Link | 5/16" - 7/16" (8 - 11mm) |
| Line Speed (Normal Working Load) | 50'/min (15 m/min) |
| Power Supply | 12 or 24V DC |
| Hydraulic Pressure | 2000 PSI (138 bar) |
| Hydraulic Flow | 9.5 US Gal/min (36 L/min) |
| Motor Power | 1200W |
| Net Weight (DC) | 84 lbs (38 kg) |
| Net Weight (Hydraulic) | 70 lbs (32 kg) |
| A | 3 11/16" (94 mm) |
| B | 9 9/16" (242 mm) |
| B1 (Low Profile) | 5 27/32" (148 mm) |
| C | 3 5/32" (80 mm) |
| D | 8 5/16" (210 mm) |
| E | 11 1/8" (281 mm) |
| F | 11 23/32" (297 mm) |
| G (Standard Deck Clearance) | 4" (100 mm) |
| G (EDC - Extra Deck Clearance) | 8" (200 mm) |
| I | 7 1/2" (190 mm) |
