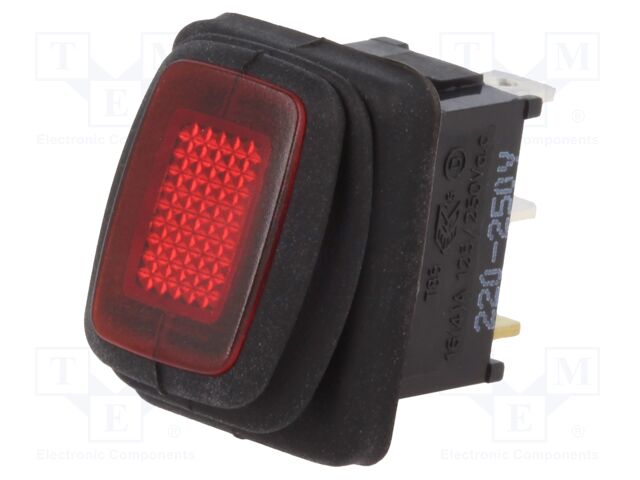

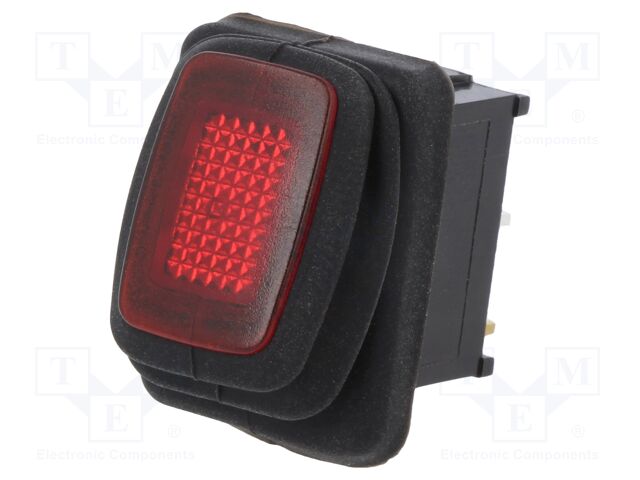

SCI R13-66B8-02-BBR | ROCKER; SPST; Pos: 2; ON-OFF; 10A/250VAC; red; IP65; neon lamp; 250V
SCI R13-66B8-02-BBR | ROCKER; SPST; Pos: 2; ON-OFF; 10A/250VAC; red; IP65; neon lamp; 250
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SCI |
|---|---|
| CategoryL1 | Switches and Indicators |
| CategoryL2 | Rocker Switches |
| DimensionUnit | mm |
| Extra Product Name | SCI R13-66B8-02-BBR | ROCKER; SPST; Pos: 2; ON-OFF; 10A/250VAC; red; IP65; neon lamp; 250V |
| atoms, moq, multiple, tierMinQty1 | 1 |
| diameter, length, width | 19.8 |
| jsonUrlData | 41b5d62a1728ae8a3b4b9fd191fe1177. |
| jsonUrlData2 | 4b7fcd31b5bac77e32e2 |
| keywords | SCI, R13-66B8-02-BBR |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN, SKU | R13-66B8-02-BBR |
| qtyInStock | 410 |
| snippet | SCI R13-66B8-02-BBR | ROCKER; SPST; Pos: 2; ON-OFF; 10A/250VAC; red; IP65; neon lamp; 250 |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 80 |
| tierMinQty5 | 480 |
| tierPrice1 | 2.73 |
| tierPrice2 | 2.376 |
| tierPrice3 | 2.125 |
| tierPrice4 | 1.875 |
| tierPrice5 | 1.7 |
| Type of switch | ROCKER |
| Contacts configuration | SPST |
| Number of positions, Stable positions number | 2 |
| Switching method | ON-OFF |
| AC contacts rating @R | 10A / 250V AC |
| Key button colour, Backlight colour | red |
| IP rating | IP65 |
| Illumination | neon lamp |
| Illumination voltage | 250V |
| Max contact resistance: | 50m? |
| Body colour | black |
| Flammability rating | UL94V-2 |
| Operating temperature | -20...85?C |
| Leads | connectors 4,8x0,8mm |
| Panel thickness | max. 2.5mm |
| Mounting hole diameter | 19.8x13mm |
| Button marking | blank |
| Shape, Button shape | rectangular |
| Body dimensions | 23.4x17.4x25.5mm |
| Manufacturer series | R13-66-AC |
| Dielectric strength | 1.5kV AC |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| R13-66B8-02-BBR | 1 | 410 | 1 | 1 @ $2.73, 5 @ $2.38, 20 @ $2.12, 80 @ $1.88, 480 @ $1.70 | |
| R1366B802R | 1 | 1 |
