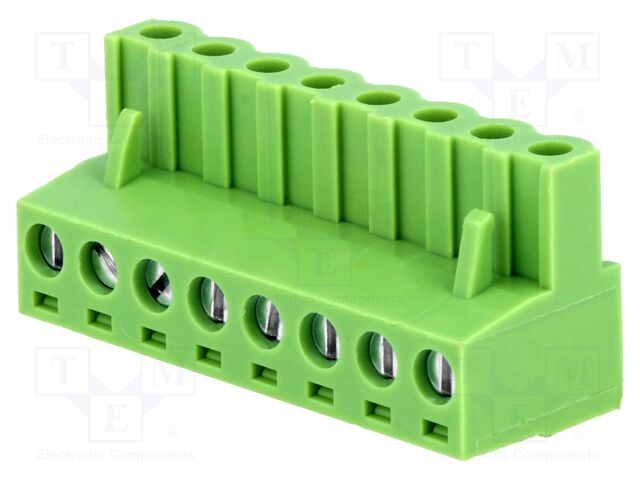

XINYA XY2500F-B(5.08)-8P | Pluggable terminal block; 5.08mm; ways: 8; straight; plug; female
XINYA XY2500F-B(5.08)-8P | Pluggable terminal block; 5.08mm; ways: 8; straight; plug; femal
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | Terminal blocks |
| CategoryL4 | Pluggable terminal blocks |
| Extra Product Name | XINYA XY2500F-B(5.08)-8P | Pluggable terminal block; 5.08mm; ways: 8; straight; plug; female |
| atoms | 1 |
| jsonUrlData | 37bc3126b5bdcd8f15eea4cede5b69a6. |
| jsonUrlData2 | 37fb6d5fd690a4963512 |
| keywords | XINYA, XY2500F-B(5.08)-8P, TBW-5.08-K-8P |
| moq, multiple, tierMinQty1 | 2 |
| MPN | XY2500F-B(5.08)-8P |
| qtyInStock | 6701 |
| SKU | TBW-5.08-K-8P |
| snippet | XINYA XY2500F-B(5.08)-8P | Pluggable terminal block; 5.08mm; ways: 8; straight; plug; femal |
| tierMinQty2 | 10 |
| tierMinQty3 | 50 |
| tierMinQty4 | 200 |
| tierMinQty5 | 500 |
| tierPrice1 | 1.08 |
| tierPrice2 | 0.92 |
| tierPrice3 | 0.784 |
| tierPrice4 | 0.716 |
| tierPrice5 | 0.66 |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5.08mm |
| Number of ways, Number of terminals | 8 |
| Spatial orientation | straight |
| Connector | plug |
| Kind of connector | female |
| Mechanical mounting | for cable |
| Electrical mounting | cage clamp, |
| Wire cross-section | 2.5mm |
| Wire size | 28AWG...12AWG |
| Colour | green |
| Rated voltage | 250V |
| Connector pinout layout | 1x8 |
| Current rating | 12A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Locking system | latch |
| Conform to the norm | UL |
| Contact plating | nickel plated |
| Operating temperature | -40...120?C |
| Contact material | brass |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBW-5.08-K-8P | 2 | 6701 | 2 | 2 @ $1.08, 10 @ $0.92, 50 @ $0.78, 200 @ $0.72, 500 @ $0.66 |
