Chicago-Latrobe

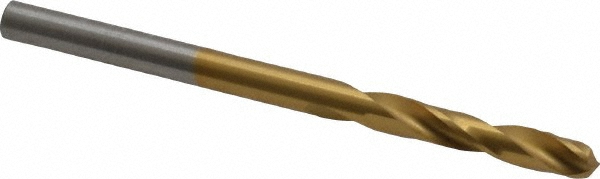

Heavy duty geometry for drilling tougher materials by hand or machine. Shorter flutes and overall length provide superior rigidity to minimize deflection when using heavy feed rates. Manufactured from premium high-speed steel. 135° split point is self-centering for reduced thrust and easier penetration, sizes under .0625 do not have split. TiN (Titanium Nitride) coating adds lubricity and hardness, which enhances chip flow, finish hole quality and drill life. For drilling in alloy and carbon steel, stainless, cast iron and tool steel. Made In USA. Pack Of 12. 30 Day Warranty.

Chicago-Latrobe . 48209

Gallery

Attributes

Brand name, Manufacturer name, Extra Product NameChicago-Latrobe
ManufacturerChicago-Latrobe Greenfield Greenfield Industries
DimensionUnitinch
GraingerSku439H44
UPC662355482094
UnitOfMeasureEA
Weight0.11 0.095 0.1
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height, width0.9
jsonUrlData924526ffbdad25e5923b
length3.4
moq, multiple, tierMinQty11
MPN, Keyword, ModelNumber, Model_number, Mpns, PartNumber, Part_number, StrippedMpns48209
qtyInStock8
qtyInStockOverride-2
SKUG2991453
tierPrice13.87
urlhttps://www.zoro.com/chicago-latrobe-screw-machine-drill-bit-964-in-size-135-degrees-point-angle-high-speed-steel-tin-finish-48209/i/G2991453/
ItemScrew Machine Drill Bit
Drill Bit GroupingDrill Bit
Drill Bit Dimension Type, Measurement SystemFractional Inch
Drill Bit Size, Shank Dia9/64 in
Decimal Equivalent0.1406
Drill Bit Point Angle135 Degrees
Drill Bit Material, Material - Machining, MaterialHigh Speed Steel
Drill Bit Finish, Finish - MachiningTiN
Shank Type, Shank Shape, Shank Type - MachiningStraight
Flute TypeSpiral
Number of Flutes2
Cutting Direction, Spiral DirectionRight Hand
Point TypeSplit
ApplicationFor Drilling Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
Number of Pieces0
Grade, Material Grade - MachiningHeavy Duty
Bit Dia, Sizes Included, Shank Size, Size9/64"
Drilling Length15/16"
Coolant ThroughNo
Flute Length, Maximum Drilling Depth15/16 in
StandardsANSI
List Number, Series159-TN
Overall Length1 15/16 in
Depth x Dia Ratio, Depth:Dia Ratio4xD
Coolant FedNon-Coolant Through
Primary Material Application ISO CodeK, P
Drill Bit Point TypeSplit Point
Primary Material ApplicationCast Iron, Steel, Tool and Die Steel
Drill Diameter Tolerance+0.0000 in /-0.0007 in
Drill Length ClassScrew Machine Length
Drill Point Length0.0291 in
Helix Angle28 Degrees
Shank Length1 in
Country of Origin (subject to change)United States
AsinB0026GK8YO B09TJQB1D1
BrandChicago Latrobe
Bullet_point135 degree P3 split point is self-centering for reduced thrust and easier penetration Manufactured from premium high-speed steel Manufactured to NAS 907 Type C geometry aerospace specifications Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates Titanium nitride coatings add a hard layer of gold-colored ceramic to the surface that extends tool life and permits faster cutting speeds than uncoated tools.Made in the USA
ClassificationId2941342011 6001488011
CurrencyUSD
Cutting_angle_string135.0
DisplayNameCombination Drill & Taps Short Length Drill Bits
Finish_typeTitanium Nitride
Height0.299999999694 0.3 0.762 13 14 1499 2466 398 400 482 500 72 75 800 89 90
Identifier00662355482094 0662355482094 662355482094
IdentifierTypeEAN GTIN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameChicago Latrobe 2159 High-Speed Steel Short Length Drill Bit, TiN Coated, Round Shank, 135 Degree Split Point, 9/64" Size (Pack of 12) Chicago-Latrobe 48209 159-TN/2159 Heavy Duty Screw Machine Drill, 9/64 in Drill - Fraction, 0.1406 in Drill - Decimal Inch, HSS, TiN Coated (12 Each)
Item_package_quantity, Number_of_items, PackageQuantity1 12
Item_package_weight0.095
Item_type_keywordcombination-drill-and-taps short-length-drill-bits
Item_weight0.1
Length5.099999994798 5.1 7.366
Linkhttps://m.media-amazon.com/images/I/31EAE48UE9L._SL75_.jpg https://m.media-amazon.com/images/I/31EAE48UE9L.jpg https://m.media-amazon.com/images/I/31f09EHeavL._SL75_.jpg https://m.media-amazon.com/images/I/31f09EHeavL.jpg https://m.media-amazon.com/images/I/31lksugbXYL._SL75_.jpg https://m.media-amazon.com/images/I/31lksugbXYL.jpg https://m.media-amazon.com/images/I/41W5+lXq8oL._SL75_.jpg https://m.media-amazon.com/images/I/41W5+lXq8oL.jpg https://m.media-amazon.com/images/I/51PBLfUCj2L._SL75_.jpg https://m.media-amazon.com/images/I/51PBLfUCj2L.jpg https://m.media-amazon.com/images/I/61R+4-Y-wbL.jpg https://m.media-amazon.com/images/I/61vw6mqqFmL.jpg https://m.media-amazon.com/images/I/71IZ0Z2a-lL.jpg https://m.media-amazon.com/images/I/71nk17fFq8L.jpg https://www.amazon.com/gp/bestsellers/hi https://www.amazon.com/gp/bestsellers/hi/2941342011
List_price58.08
Mfg_series_number2159
ParentAsinsB006O2S0VO
ProductTypeDRILL_BITS
Product_descriptionChicago-Latrobe Screw Machine Drill, Heavy Duty, Series: 159-TN/2159, Imperial, 9/64 in Drill - Fraction, 0.1406 in Drill - Decimal Inch, 1-15/16 in Overall Length, 15/16 in Cutting Depth, 2 Flutes, Right Spiral Flute, 15/16 in Flute Length, 9/64 in Dia x 1 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, TiN Coated, Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
Product_site_launch_date2011-02-09T08:00:01.000Z 2023-11-02T04:48:59.349Z
Rank1060791 85
ReleaseDate2017-11-25
Street_date2017-11-25T00:00:01Z
String_value15/16
Surface_recommendationAlloy Steel
TitleShort Length Drill Bits Tools & Home Improvement
TypeCount Round Spiral VARIATION ean gtin upc
Unitcentimeters degrees inches pounds
Unit_count12.0
VariantMAIN PT01 PT02 PT03
WebsiteDisplayGroupbiss_basic_display_on_website home_improvement_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width12.953999999999999 1392 2.899999997042 2.9 2230 2244 2560 464 500 70 75 800

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG29914531811 @ $3.87
Megadepot48209111 @ $2.95
bscsource.com48209111 @ $4.39
Global IndustrialWBB254641812-2121 @ $3.05
Guardian061313531-211 @ $6.37
simsupply.comZO-G29914531911 @ $10.51
heavydutydepot.com4820934-2121 @ $2.95
usmegastore.com482091-211 @ $3.37
National Supply Network061313531-211 @ $4.05
National Supply Network61313531-211 @ $4.56
MRO Supply612989413131 @ $2.86

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Chicago Latrobe 2159 High-Speed Steel Short Length Drill Bit, TiN Coated, Round Shank, 135 Degree Split Point, 9/64" Size (Pack of 12)
Brand: Chicago Latrobe
Details
  • Manufactured to NAS 907 Type C geometry aerospace specifications
  • Manufactured from premium high-speed steel
  • 135 degree P3 split point is self-centering for reduced thrust and easier penetration
  • Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
  • Titanium nitride coatings add a hard layer of gold-colored ceramic to the surface that extends tool life and permits faster cutting speeds than uncoated tools.Made in the USA
View on Amazon (paid link)
Chicago-Latrobe 48209 159-TN/2159 Heavy Duty Screw Machine Drill, 9/64 in Drill - Fraction, 0.1406 in Drill - Decimal Inch, HSS, TiN Coated (12 Each)
Brand: Chicago Latrobe
Chicago-Latrobe Screw Machine Drill, Heavy Duty, Series: 159-TN/2159, Imperial, 9/64 in Drill - Fraction, 0.1406 in Drill - Decimal Inch, 1-15/16 in Overall Length, 15/16 in Cutting Depth, 2 Flutes, Right Spiral Flute, 15/16 in Flute Length, 9/64 in Dia x 1 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, TiN Coated, Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
