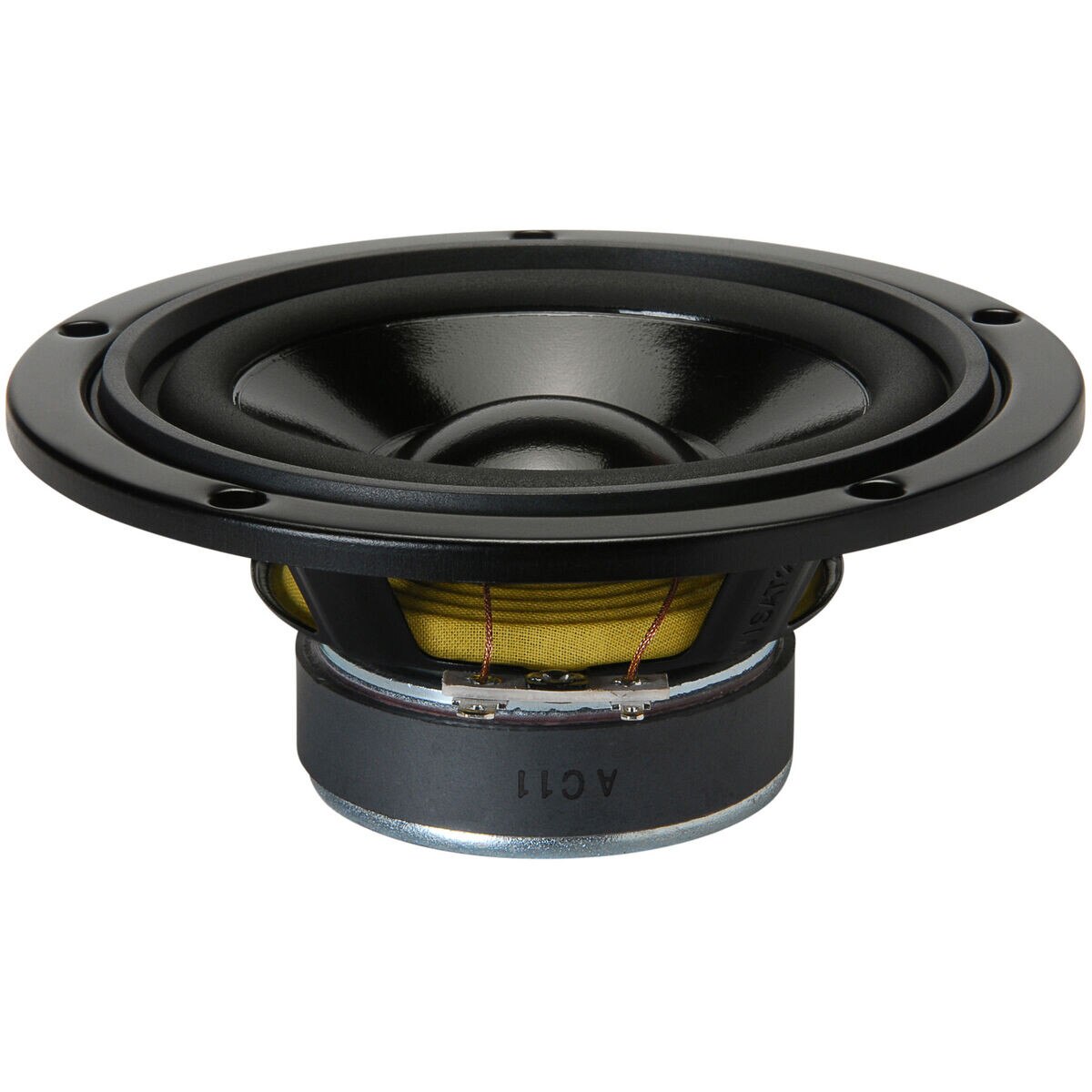

Visaton W130S-4 5" Woofer with Treated Paper Cone 4 Ohm

Visaton W130S-4 5" Woofer with Treated Paper Cone 4 Ohm. Part Number: 292-562 by Visaton.

Visaton . W130S - 4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandVisaton
DimensionUnitinch
Extra Product NameVisaton W130S-4 5" Woofer with Treated Paper Cone 4 Ohm
Weight1.499
WeightUnitlbs
depth, length2.09
diameter, height, width5.75
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelW130S - 4
qtyInStock0
SKU, Part Number292-562
snippetVisaton W130S-4 5" Woofer with Treated Paper Cone 4 Ohm. Part Number: 292-562 by Visaton.
Unit of MeasureEach
Nominal Diameter5"
Power Handling (RMS)50 Watts
Power Handling (MAX)80 Watts
Impedance4?
Frequency Response50 to 12,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter1"
Resonant Frequency (Fs)50Hz
DC Resistance (Re)3.5?
Voice Coil Inductance (Le)0.6mH
Mechanical Q (Qms)2.54
Electromagnetic Q (Qes)0.55
Total Q (Qts)0.45
Compliance Equivalent Volume (Vas)0.49ft?
Maximum Linear Excursion (Xmax)2.25mm
Cone MaterialTreated Paper
Surround MaterialRubber
Overall Outside Diameter5.75"
Baffle Cutout Diameter4.21"
Depth2.09"
Sealed Volume0.22ft?
Sealed F388Hz
Vented Volume0.59ft?
Vented F344Hz
