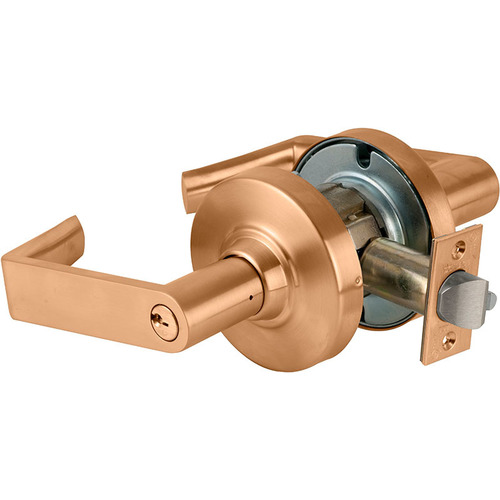

Schlage Commercial ND94PD RHO 612 ND Series Vandlgard Classroom C Keyway Rhodes with 13-247 Latch 10-025 Strike Satin Bronze Finish

ND SeriesCylindrical Locks ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles. All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, c

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAllegion
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Commercial ND94PD RHO 612 ND Series Vandlgard Classroom C Keyway Rhodes with 13-247 Latch 10-025 Strike Satin Bronze Finish
atoms, moq, multiple, tierMinQty11
color, ColorSatin Bronze Clear Coated
diameter, height, width3.4375
height_Attrib, width_AttribRose Diameter
length, Lever Length4.5625
length_AttribLever Length-Inches
MPNND94PD RHO 612
qtyInStock0
tierPrice1666.1
DesignRhodes
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Backset2-3/4 Inch
Finish, Finish Description, Finish FamilySatin Bronze
Function94-Vandlgard Classroom
Color Code612/US10
Fire Rated3 Hours {A}
OriginMexico
BAA QualifiedYes
Package Height4.75
Package Length9.5
Package Volume372.28125
Package Width8.25
HandingReversible
GradeANSI/BHMA Grade 1
Projection2.9375
Door Thickness1 5/8" - 2 1/8"
Bore Size2.1250
Latch Number13-247
Strike Number10-025
ADA ApprovedFalse
Keying ChargesCCAM
Product TypeCylindrical Lock
Rose/Escutcheon TrimRound Rose
Keyblank GroupingSCHL-C-6-1
Lever StyleRHO-Rhodes
Cylinder TypeP-6 Pin Conventional (Keyed 5)
KeywaySchlage C
Strike Size1-1/4" x 4-7/8"
Knob/Lever Size4-9/16 Inch
Latch Throw1/2 Inch
Latch TypeDeadlatch
Function DescriptionDeadlocking latch bolt by levers. Outside knob/lever is locked by key in outside lever. Inside knob/lever is always free.
ANSI FunctionF84
Sub-SeriesCL_Cylindrical_Locks_schlage_commercial_344
Lever Style FamilyStraight Return Lever
ADA CompliantYES
Front Size1-1/8" x 2-1/4"
Latch Bolt MaterialStainless Steel
Lever Length-Inches4.5625 Inch
Handle TypeLever
Door Cross Bore2.125 Inch
ApplicationHealthcare; Education; Government; Office; Retail; Other Commercial Applications
Trim MaterialPressure Cast Zinc (Lever)
Function FamilyClassroom
StandardsANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161
Rose Diameter3-7/16 Inch
Cylinder MaterialBrass
Product Projection2-15/16 Inch
FeaturesHeavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications
Strike TypeANSI Strike
Latch CornerSquare
Warranty10 year mechanical
Cylinder Type UsedConventional
Strike Lip1-3/16 Inch
