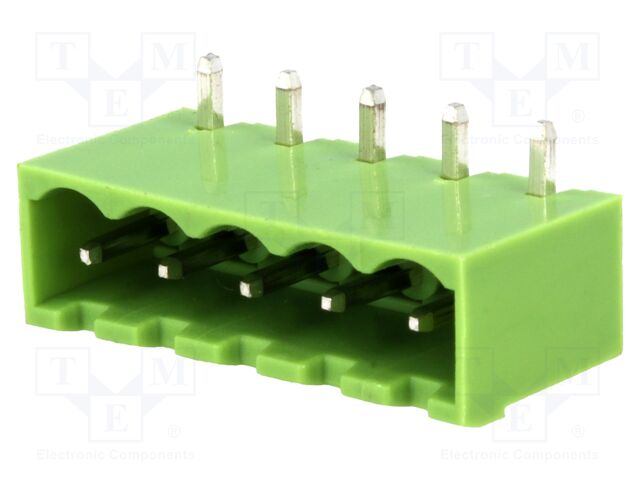

XINYA XY2500R-D(5.08)-5PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 5; socket
XINYA XY2500R-D(5.08)-5PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 5; socke
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | Terminal blocks |
| CategoryL4 | Pluggable terminal blocks |
| DimensionUnit | mm |
| Extra Product Name | XINYA XY2500R-D(5.08)-5PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 5; socket |
| atoms | 1 |
| depth, width | 12.0 |
| height | 8.4 |
| height_Attrib | Height |
| jsonUrlData | 9bf1b424a8ed322f94ef5cbb9db96531. |
| jsonUrlData2 | 076d3253b7b8617442c3 |
| keywords | XINYA, XY2500R-D(5.08)-5PIN, TBG-5-KW-5P-GN |
| length | 27.46 |
| length_Attrib | Length |
| moq, multiple, tierMinQty1, Number of ways, Number of pins | 5 |
| MPN | XY2500R-D(5.08)-5PIN |
| qtyInStock | 4464 |
| SKU | TBG-5-KW-5P-GN |
| snippet | XINYA XY2500R-D(5.08)-5PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 5; socke |
| tierMinQty2 | 20 |
| tierMinQty3 | 100 |
| tierMinQty4 | 800 |
| tierMinQty5 | 2400 |
| tierPrice1 | 0.378 |
| tierPrice2 | 0.267 |
| tierPrice3 | 0.246 |
| tierPrice4 | 0.209 |
| tierPrice5 | 0.189 |
| width_Attrib | Depth |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5.08mm |
| Spatial orientation | angled 90? |
| Connector | socket |
| Kind of connector | male |
| Mechanical mounting | on PCBs |
| Electrical mounting | THT |
| Colour | green |
| Rated voltage | 300V |
| Connector pinout layout | 1x5 |
| Current rating | 15A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Locking system | friction lock |
| Conform to the norm | UL |
| Contact plating | tinned |
| Operating temperature | -40...105?C |
| Contact material | brass |
| Height | 8.4mm |
| Depth | 12mm |
| Length | 27.46mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBG-5-KW-5P-GN | 5 | 4464 | 5 | 5 @ $0.38, 20 @ $0.27, 100 @ $0.25, 800 @ $0.21, 2400 @ $0.19 |
