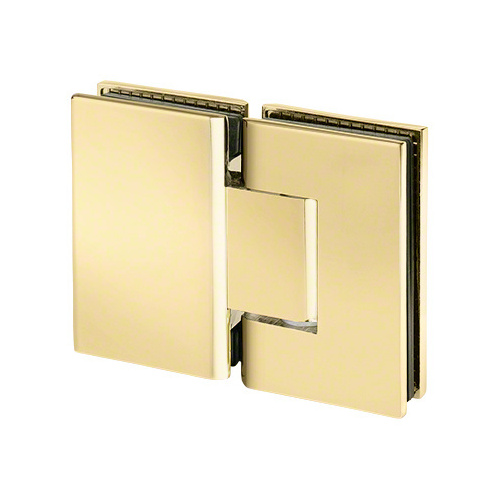

US Horizon H180GTGAPB Adjustable Designer Series Glass To Glass Door Hinge 180 Degree Polished Brass

The Adjustable Designer Series Glass To Glass Door Hinge will allow for adjustment of door closing position after the initial installation of the door. Solid Brass construction ensures the toughness to hold heavy doors and also guarantees resistance to corrosion hence durability for a long time. They are widely used in homes and various other commercial building projects.

U.S. Horizon Mfg., Inc. . H180GTGAPB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerU.S. Horizon Mfg., Inc.
CategoryIdL3Beveled Wall Mount Glass Clips
CategoryL1Bathroom Hardware
CategoryL2Shower Enclosure Glass Clips, Clamps and Brackets
Extra Product NameUS Horizon H180GTGAPB Adjustable Designer Series Glass To Glass Door Hinge 180 Degree Polished Brass
Weight, Max Door Weight-3 Hinges (Lbs)120
WeightUnitlbs
Weight_AttribMax Door Weight-3 Hinges (Lbs)
atoms, moq, multiple, tierMinQty1, Pack Size1
extendedQty, qtyInStock0
MPNH180GTGAPB
qtySourceupdateFromUrlEntry
tierPrice198.19
Height3-35/64
FinishPolished Brass
MaterialSolid Forged Brass
Type, Angle Degree180 Degree
Screw TypeMatching Finish Stainless Steel Allen Style Clamp Screws
Mounting StyleGlass to Glass mount
Designed For3/8" and 1/2" (10 and 12 mm) Glass
Self-ClosingFrom 25 Degrees
Other SpecificationsMaximum door weight: - 2-hinge - 80lbs (36kg) - 3-hinge - 120lbs (54kg) Maximum door width: - 2-hinge - 30" (762mm) - 3-hinge - 36" (914mm)
Hardware IncludesAllen Wrench
Installation Steps1.Use 3 mm Hex Wrench (A) to loosen two screws (B) by turning one circle counter-clockwise. Then proceed with the adjustment. 2. Once you have aligned the door, re-tighten two screws.
Glass Fabrication RequiredCutout
Edge ProfileSquare
Adjustable, Self-CenteringYes
5 Degree Pre-SetNo
Glass To Glass Angle (Degrees)180
Max Door Width - 3 Hinges (IN)36
Max Door Weight-2 Hinges (Lbs)80
Glazing Thickness (Inches)1/2, 3/8
Max Door Width - 2 Hinges (IN)30

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareH180GTGAPB111 @ $98.19
