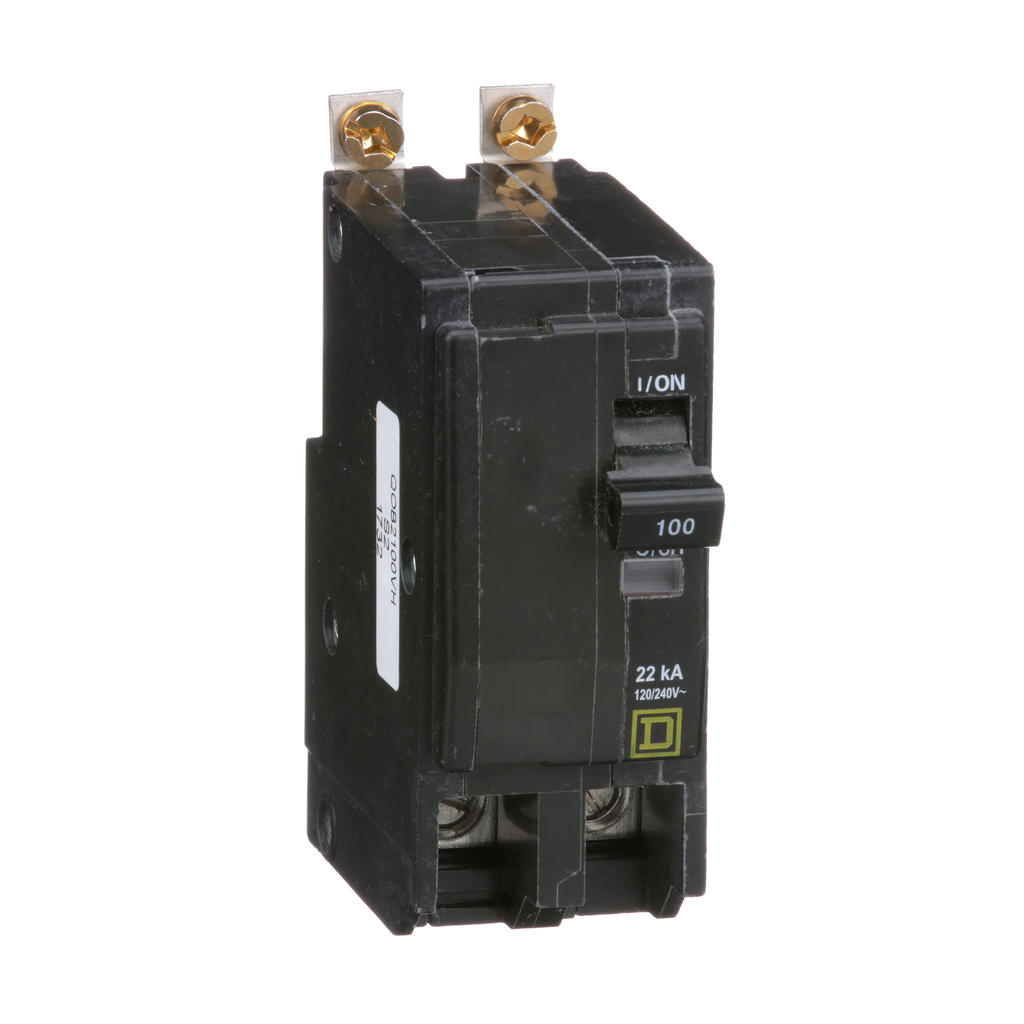

Mini circuit breaker, QO, 100A, 2 pole, 240VAC, 22kA, bolt on mount | Mayer Electric

Shop SQUARE D at Mayer. Mini circuit breaker, QO, 100A, 2 pole, 120/240 VAC, 22 kA, bolt on mount

Mayer Electric Supply . QOB2100VH

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 100A, 2 pole, 240VAC, 22kA, bolt on mount | Mayer Electric
UPC785901054757
Weight0.340
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height89.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-QO-100A-2-pole-120-240-VAC-22-kA-bolt-on-mount-785901054757
jsonUrlData2a55fa156-37df-43be-9f5e-abb200c9deed
keywordsSQUARE D, Mayer SQUARE D, 785901054757, QOB2100VH
length_AttribDepth
moq, multiple, tierMinQty11
MPNQOB2100VH
qtyInStock0
SKUSQDQOB2100VH
snippetShop SQUARE D at Mayer. Mini circuit breaker, QO, 100A, 2 pole, 120/240 VAC, 22 kA, bolt on mount
tierPrice1396.97
width38.0
width_AttribWidth
Circuit Breaker ApplicationHACR rated
Mounting Modebolt-on
Circuit Breaker Typestandard
Range Of ProductQO
Poles Description2P
Electrical Connectionbox lugs
Line Rated Current100 A
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC || 240 V AC || 120 V AC
Warranty18 months
Height89 mm
Breaking Capacity22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
Tightening Torque4.6-4.6 N.m
Number Of Spaces Required2
Awg GaugeAWG 4...AWG 2/0 copper or aluminium
Width38 mm
Depth74 mm
Net Weight0.340 kg
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingCadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen Content PerformanceHalogen free product
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQOB2100VH111 @ $396.97
