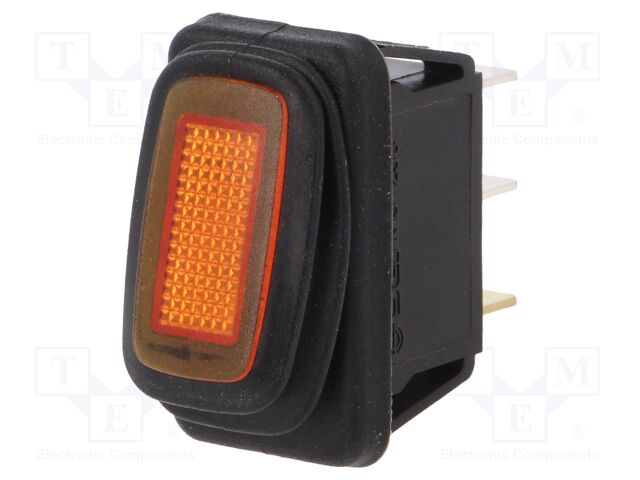

SCI R13-238B8-01-Y-L1 | ROCKER; SPST; Pos: 2; ON-OFF; 16A/12VDC; orange; IP65; LED; 12V; 50m?
SCI R13-238B8-01-Y-L1 | ROCKER; SPST; Pos: 2; ON-OFF; 16A/12VDC; orange; IP65; LED; 12V; 50m
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SCI |
|---|---|
| CategoryL1 | Switches and Indicators |
| CategoryL2 | Rocker Switches |
| DimensionUnit | mm |
| Extra Product Name | SCI R13-238B8-01-Y-L1 | ROCKER; SPST; Pos: 2; ON-OFF; 16A/12VDC; orange; IP65; LED; 12V; 50m? |
| atoms, moq, multiple, tierMinQty1 | 1 |
| diameter, length, width | 29.4 |
| jsonUrlData | 1e4e3dca678dcf15ca1da9a2ee3cebfc. |
| jsonUrlData2 | c7881a31457e3089721b |
| keywords | SCI, R13-238B8-01-Y-L1, R13238B801Y |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN | R13-238B8-01-Y-L1 |
| qtyInStock | 149 |
| SKU | R13238B801Y |
| snippet | SCI R13-238B8-01-Y-L1 | ROCKER; SPST; Pos: 2; ON-OFF; 16A/12VDC; orange; IP65; LED; 12V; 50m |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 2.73 |
| tierPrice2 | 2.5 |
| tierPrice3 | 2.24 |
| tierPrice4 | 1.99 |
| tierPrice5 | 1.76 |
| Type of switch | ROCKER |
| Contacts configuration | SPST |
| Number of positions, Stable positions number | 2 |
| Switching method | ON-OFF |
| DC contacts rating @R | 16A / 12V DC |
| Key button colour | orange |
| IP rating | IP65 |
| Illumination | LED |
| Backlight colour | yellow |
| Illumination voltage | 12V |
| Max contact resistance: | 50m? |
| Body colour | black |
| Flammability rating | UL94V-2 |
| Operating temperature | -20...85?C |
| Leads | connectors 6,3x0,8mm |
| Panel thickness | max. 4.5mm |
| Mounting hole diameter | 29.4x13.8mm |
| Button marking | blank |
| Shape | rectangular |
| Body dimensions | 31.5x18.5x21.1mm |
| Manufacturer series | R13-238-DC |
| Dielectric strength | 1.5kV AC |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| R13238B801Y | 1 | 149 | 1 | 1 @ $2.73, 5 @ $2.50, 20 @ $2.24, 100 @ $1.99, 500 @ $1.76 |
