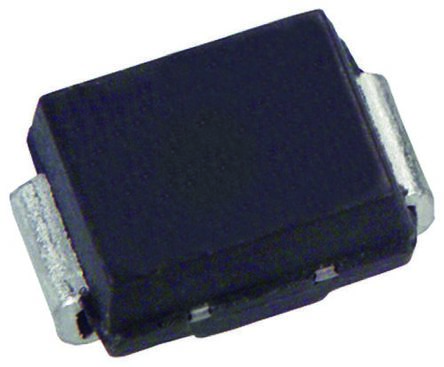

Littelfuse . 1SMB20CAT3G
32.4V Clamp 18.5A Ipp Tvs Diode Surface Mount SMB
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand | Littelfuse |
|---|---|
| jsonUrlData | 7862745 |
| moq, multiple, Number of Elements per Chip | 1 |
| MPN | 1SMB20CAT3G |
| SKU | 786-2745 |
| Diode Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| ESD protection | Yes |
| Length | 4.57mm |
| Maximum Clamping Voltage | 32.4V |
| Minimum Breakdown Voltage | 22.2V |
| Maximum Peak Pulse Current | 18.5A |
| Package Type | DO-214AA (SMB) |
| Mounting Type | Surface Mount |
| Minimum Operating Temperature | -65 °C |
| Width | 3.81mm |
| Test Current | 1mA |
| Maximum Reverse Stand-off Voltage | 20V |
| Maximum Reverse Leakage Current | Maximum Reverse Leakage Current |
| Height | Height |
| Pin Count | Pin Count |
| Dimensions | Dimensions |
| Direction Type | Direction Type |
| Peak Pulse Power Dissipation | Peak Pulse Power Dissipation |
| Stock | Stock |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 786-2745 | 1 | 1 | |||
| Digi-Key | 917701 | 1 | 1 | ||
| Digi-Key | 918119 | 1 | 1 | ||
| Digi-Key | 1831653 | 1 | 1 | ||
| Newark | 45J2435 | 1 | 1 |
