Blackburn

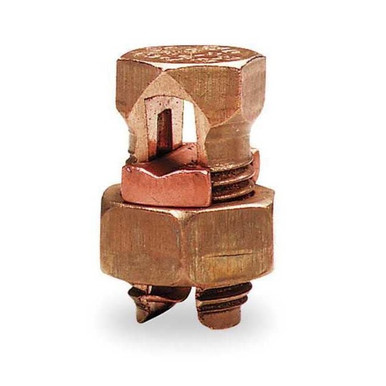

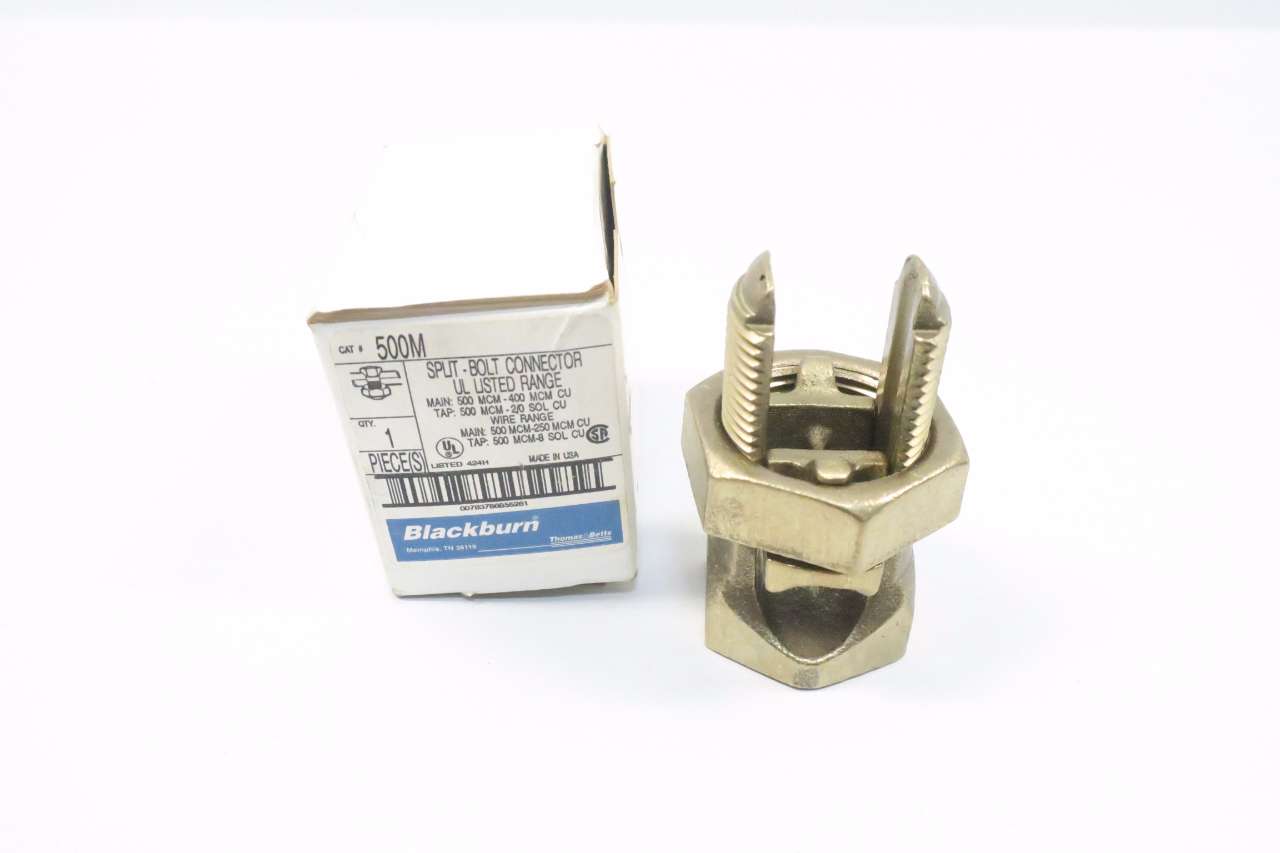

Split-Bolt Connector, 400 to 500 Kcmil

Blackburn . 500M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameBlackburn
DimensionUnitinch
GraingerSku3LK70
UPC783786855261
UnitOfMeasureEA
Weight0.95
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height2.1
jsonUrlData924526ffbdad25e5923b
length3.2
moq, multiple, tierMinQty11
MPN, Compatible Manufacturer Model Number500M
qtyInStock29
qtyInStockOverride-2
SKUG2611122
tierPrice155.89
urlhttps://www.zoro.com/blackburn-split-bolt-connector-400-to-500-kcmil-500m/i/G2611122/
width2.6
ItemSplit-Bolt Connector
ConnectsCopper to Copper Wire
Wire Range w/Equal Main and Tap (AWG)400 kcmil to 500 kcmil
Min Tap Conductor w/1 Max Main (AWG), Minimum Tap Conductor w/1 Maximum Main (AWG)2/0 str
MaterialBronze Alloy
Pressure Bar Material, For Conductor MaterialCopper
StandardsCSA Certified, UL E9809
Head styleHex Head
Overall Length3.03 in
For Maximum Equal Wire Size, For Maximum Tap Wire Size500 kcmil
RoHS CompliantYes
Body MaterialBronze
Wire Size Range (Run)2/0 AWG - 400 kcmil
Maximum Voltage600 V
Special FeaturesCorrosion Resistant, High Strength
For Maximum Run Wire Size, For Minimum Equal Wire Size, For Minimum Tap Wire Size400 kcmil
Overall Width, Head Width1.5 in
Wire Range with Equal Main and Tap400 kcmil - 500 kcmil
Torque675 in-lb
Hex Nut Size1.875 in
For Run Wire Size2/0 AWG, 250 kcmil, 300 kcmil, 3/0 AWG, 350 kcmil, 400 kcmil
For Minimum Run Wire Size2/0 AWG
Body FinishPlain
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG261112212911 @ $55.89
Grainger3LK7011
NRI IndustrialD550779111 @ $29.94
AmazonTPB07J2Z2W73111 @ $23.99
sustainablesupply.comC11948911-211 @ $48.04
Kelly Hayes500M111 @ $28.61
Crescent Electric Supply Co500M11
simsupply.comZO-G261112213911 @ $65.01
